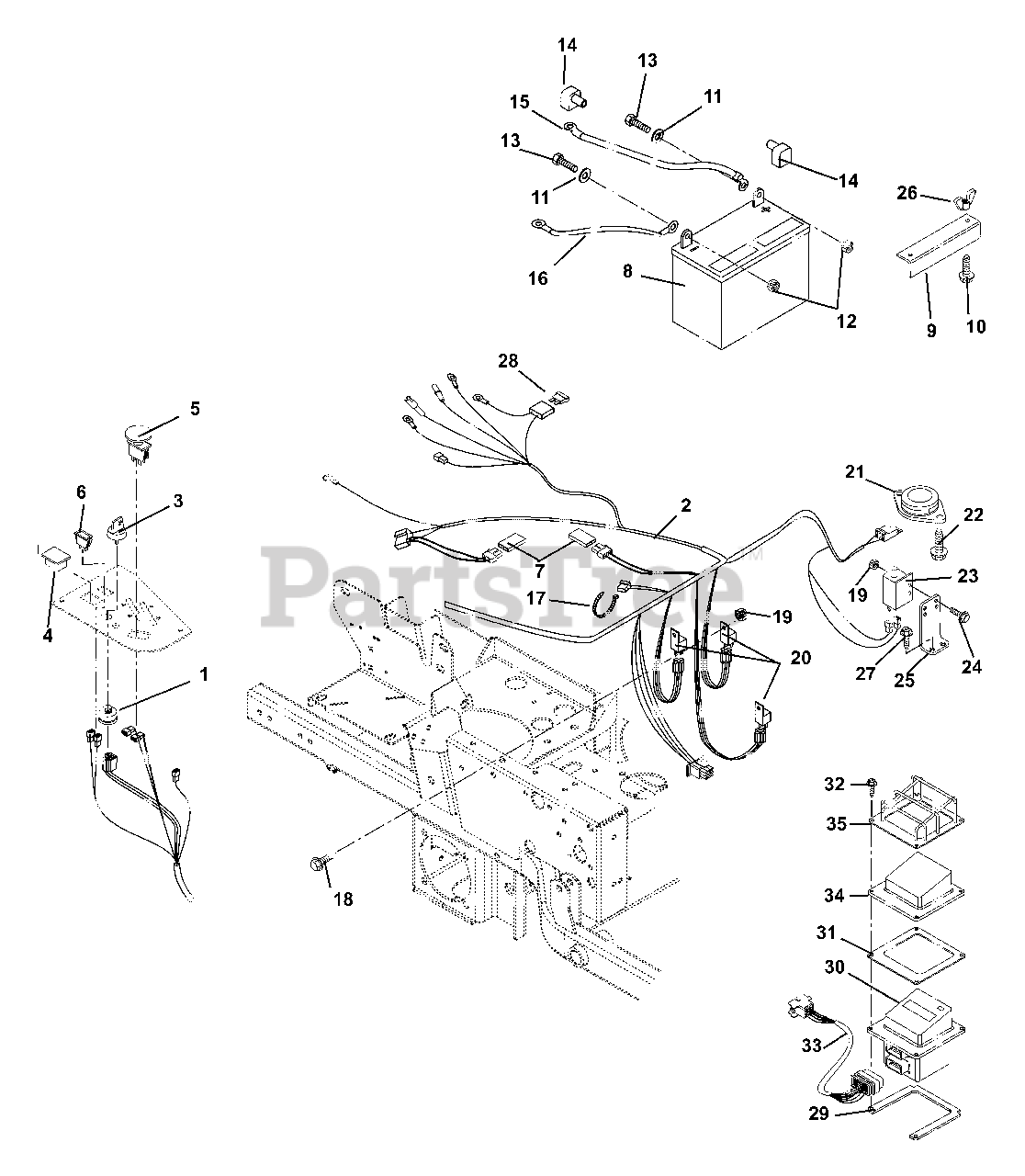

992315 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 004000 & Above) Electrical System Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Ariens 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$43.99

$

In Stock, Qty 10

0

2

Ariens 00359400

HARNESS, IZ & MONST. EYE-Q
(Superseded to 00359401)

Note: (EYE-Q)

$387.99

$

Usually ships in 4-12 days

0

3

Ariens 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

4

Ariens 00539300

PLUG, HOUR METER

$9.99

$

Usually ships in 4-12 days

0

5

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

6

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

8

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Ariens 03494000

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

10

Ariens 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

15

Ariens 09295800

CABLE, POSITIVE BATTERY 26.00
(Superseded to 03288400)

$18.99

$

Usually ships in 4-12 days

0

16

Ariens 08940600

CABLE, NEGATIVE BATTERY 24.00
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

17

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

18

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03042800

RELAY
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

21

Ariens 03490500

SEAT SWITCH

$15.99

$

In Stock, only 1 left!

0

22

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

23

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 1 left!

0

24

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Ariens 00269351

BRAKE SWITCH MOUNT - BLACK

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

27

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$

$

Not available

29

Ariens 00252251

SPACER, ENCLOSURE MTG. (BTM)

$25.99

$

Usually ships in 4-12 days

0

30

Ariens 00251600

ASSY, EYE-Q

$

$

Not available

31

Ariens 05600006

GASKET-EYE Q

Note: Eye-Q

$

$

Not available

32

Ariens 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 00288900

HARNESS, EYE-Q
(Superseded to 03286100)

Note: Eye-Q

$

$

Not available

34

Ariens 00353900

GUARD, ELEMENT

Note: Eye-Q

$

$

Not available

35

Ariens 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

Note: Eye-Q

$

$

Not available
