992315 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 004000 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

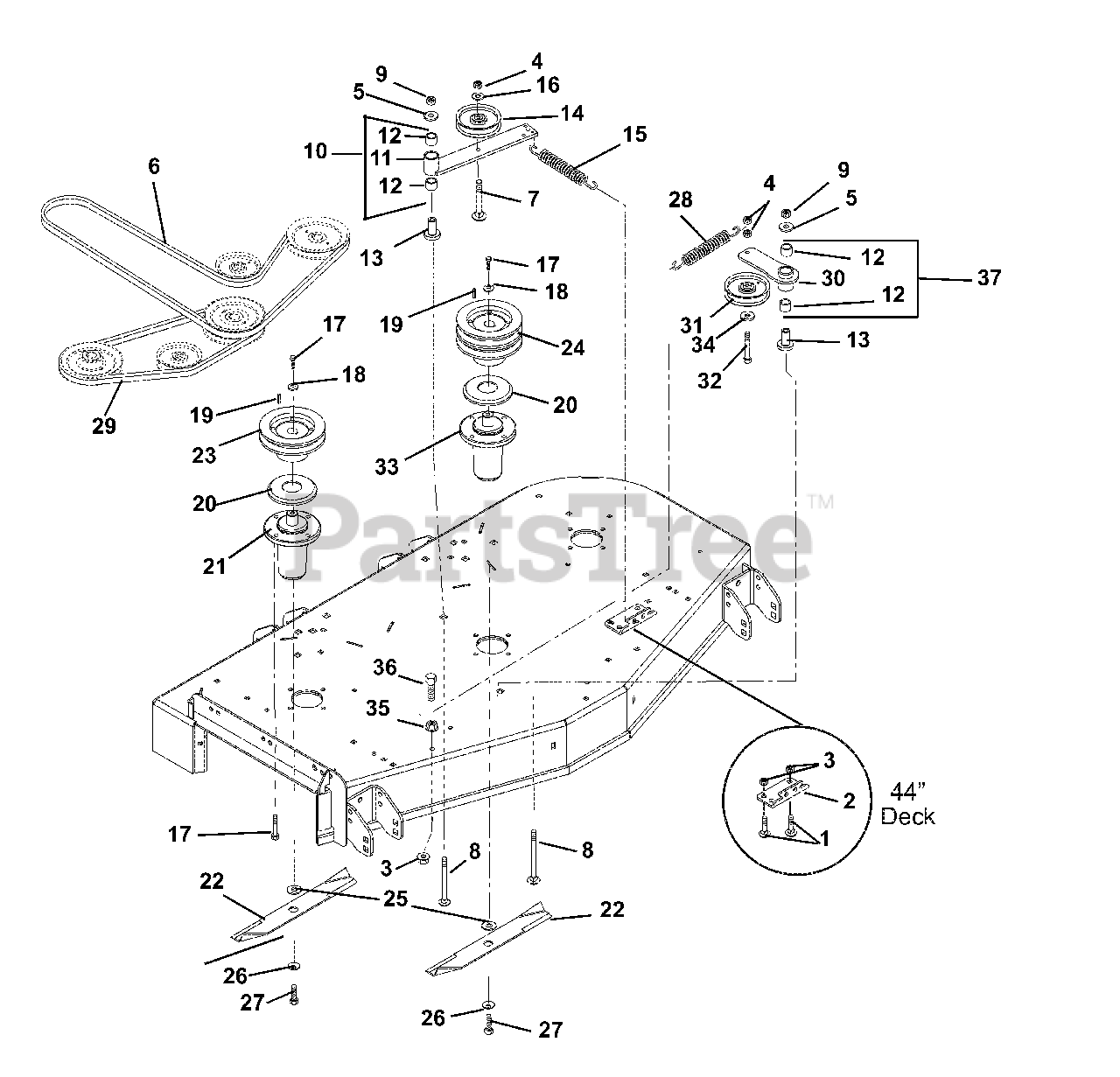

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

2

Ariens 09248353

BRACKET, SPRING

$40.99

$

In Stock, only 2 left!

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 07241100

V-BELT, HB-WRAPPED

$125.99

$

In Stock, only 1 left!

0

7

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

9

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 09286500

ASSEMBLY - IDLER PIVOT ARM

Note: (Contains Items 11 & 12)

$164.99

$

In Stock, only 1 left!

0

11

Ariens 09286451

WMT - IDLER PIVOT ARM

$170.99

$

Usually ships in 4-12 days

0

12

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

13

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

14

Ariens 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

15

Ariens 08300002

SPRING, EXT0NSION DIA1.0X6.0LG
(Superseded to 08300513)

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

20

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0

21

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$262.99

$

In Stock, only 4 left!

0

22

Ariens 04936000

BLADE, 32" (16.25)

Note: (16.25)

$28.99

$

Usually ships in 4-12 days

0

22

Ariens 04920600

BLADE - MULCHING (16.25)
(Superseded to 05244100)

$27.99

$

In Stock, Qty 20+

0

23

Ariens 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

$119.99

$

In Stock, only 1 left!

0

24

Ariens 09253200

SHEAVE, DOUBLE (5.25")

Note: (5.25")

$62.99

$

In Stock, only 1 left!

0

25

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

27

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

28

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

29

Ariens 07222300

V-BELT, HB-COGGED

$62.99

$

In Stock, only 3 left!

0

29

Ariens 07235000

V-BELT, HB-RAW EDGE

$52.99

$

In Stock, only 1 left!

0

30

Ariens 00345600

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, only 4 left!

0

31

Ariens 07327600

V-IDLER, 4.00X.38

$38.99

$

In Stock, Qty 20+

0

32

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

33

Ariens 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

34

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

37

Ariens 00349100

ASM, IDLER PIVOT ARM

Note: (Contains item 12 and item 30)

$63.99

$

In Stock, only 2 left!

0
