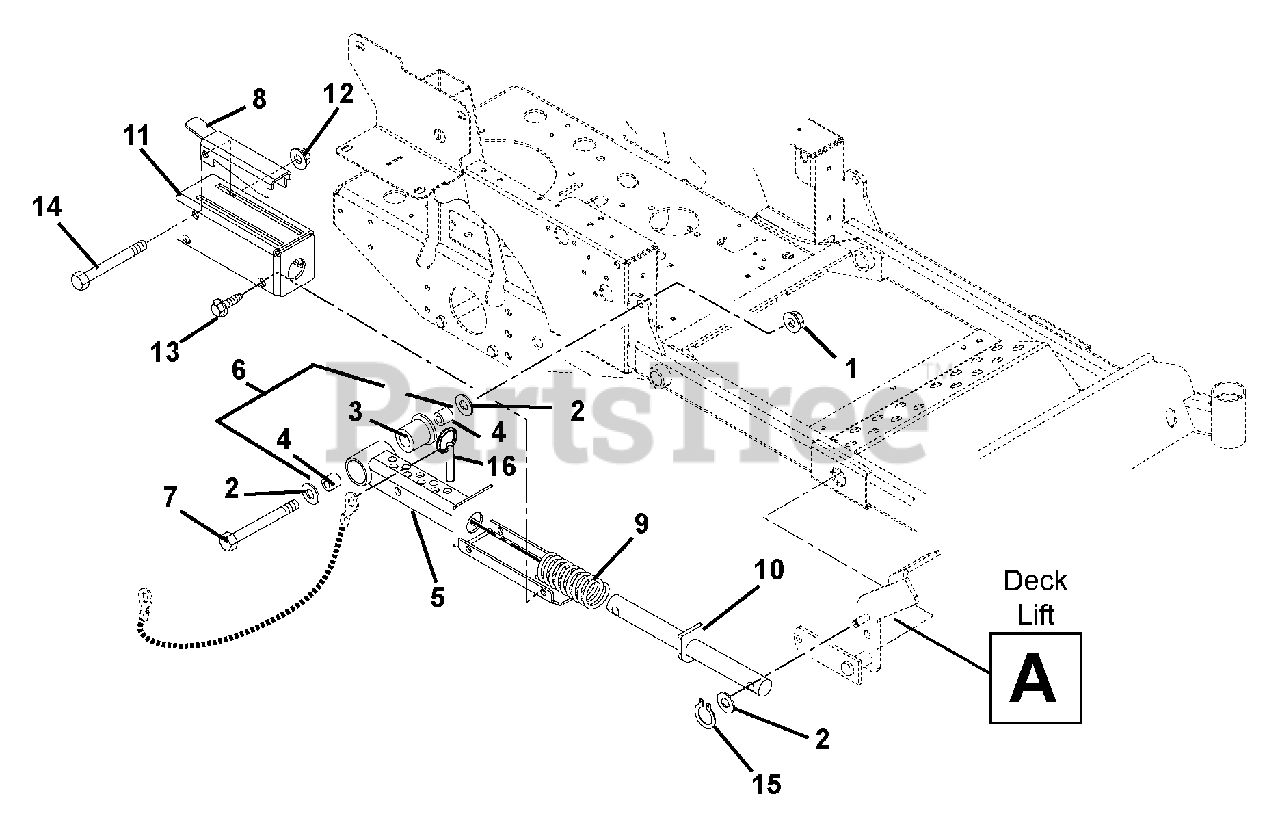

992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 & Above) Mechanical Lift Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

Mechanical Lift Parts Diagram

  • Title
1

Gravely 06500010

Nut, Locking Top Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

4

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 10

0

5

Gravely 09299251

Weldment, Mechanical Lift
(Superseded to 09286251)

$216.99

$

Usually ships in 4-12 days

0

6

Gravely 09298300

Assembly, Mechanical Lift
(Superseded to 09286251)

Note: (Includes Items 4 & 5)

$216.99

$

Usually ships in 4-12 days

0

7

Gravely 05961900

Bolt, Round Head Square Neck .50-13 x 3.75 Grade 5
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 09299651

Lock-Up, Mechanical Lift

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 08338100

Spring, Compression 1.13 x 1.48 x 5.10 (056, 314)

Note: (056, 314)

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 08300004

Spring, Compression 1.13 x 1.47 x 5.10 (065)

Note: (065)

$

$

Not available

10

Gravely 09299300

Weldment, Mechanical Lift Shaft

$33.99

$

Usually ships in 4-12 days

0

11

Gravely 09299451

Weldment, Mechanical Lift Cover

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

In Stock, Qty 8

0

16

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

Usually ships in 4-12 days

0
