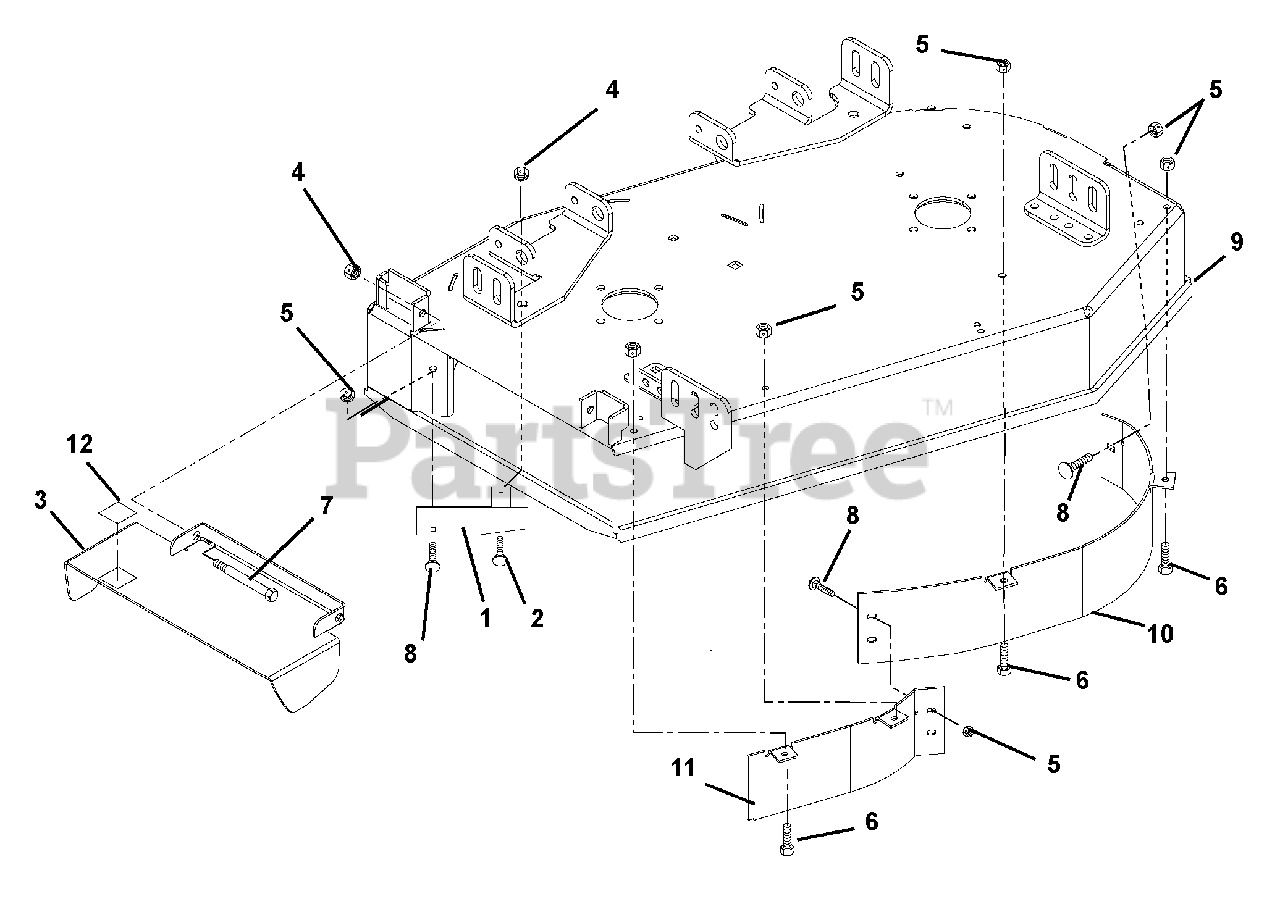

992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 00174251

Baffle, Deflector

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

3

Gravely 00262353

Chute, Discharge CE (314)

Note: (314)

$

$

Not available

3

Gravely 09299753

Chute, Discharge (056)

Note: (056)

$136.99

$

Usually ships in 4-12 days

0

4

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06545400

Nut, Nyloc Flange 5/8-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056500

Bolt-Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

8

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 09296953

Weldment, 34" Deck

$1126.99

$

Usually ships in 4-12 days

0

10

Gravely 09297051

Baffle, 34" Front Left Hand

$94.99

$

Usually ships in 4-12 days

0

11

Gravely 09297151

Baffle, 34" Front Right Hand

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 00270100

Grip, Pedal 1.50 x 3.00

$3.49

$

In Stock, Qty 5

0
