992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 001600 - 004999) Steering Controls Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

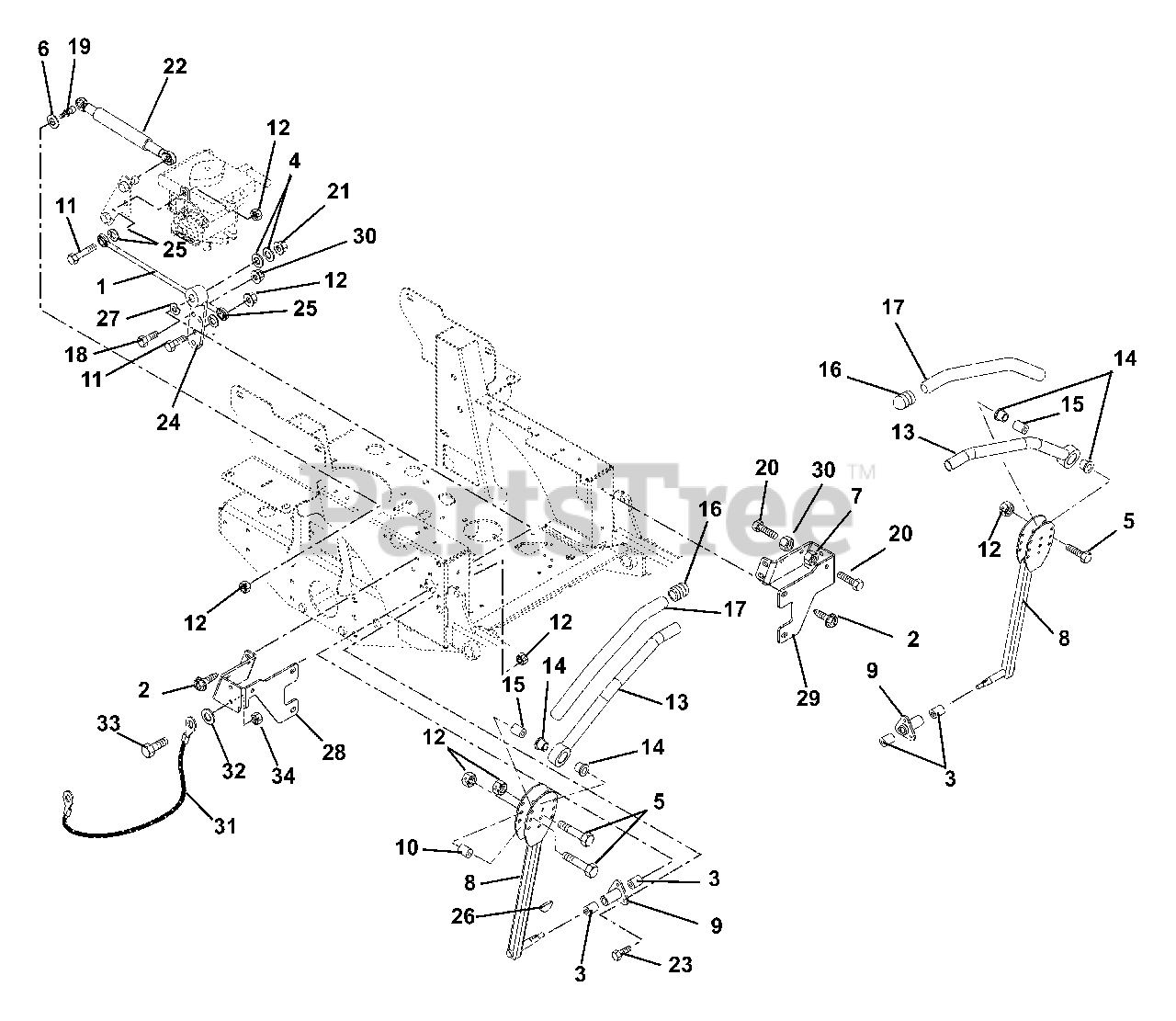

Steering Controls Parts Diagram

  • Title

1

Gravely 09285300

Assembly, Steering Rod

$109.99

$

In Stock, only 2 left!

0

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$9.99

$

In Stock, only 4 left!

0

4

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09285751

Control Arm

$250.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Housing, Bushing

$34.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09235500

Handle Weldment Left-Hand

$90.99

$

In Stock, only 1 left!

0

13

Gravely 09235600

Handle Weldment Right-Hand

$93.99

$

In Stock, only 1 left!

0

14

Gravely 035172

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05525200)

$3.49

$

In Stock, Qty 12

0

15

Gravely 09235400

Spacer

$

$

Not available

16

Gravely 09211400

Caplug, Handlebar

$2.99

$

In Stock, only 4 left!

0

17

Gravely 09246800

Grip, Handlebar

$12.99

$

In Stock, only 3 left!

0

18

Gravely 05974000

Bolt, Hex .375-16 x 1.75
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

20

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09258900

Dampener, Control

$75.99

$

In Stock, Qty 10

0

23

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00163700

Weldment, Pivot Arm

$29.99

$

Usually ships in 4-12 days

0

25

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 124545

Key, Woodruff .13 x .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

27

Gravely 03704900

Wave Washer

$2.49

$

In Stock, only 4 left!

0

28

Gravely 09287351

Stop, Steering-Right Hand

$79.99

$

Usually ships in 4-12 days

0

29

Gravely 09287451

Stop, Steering-Left Hand

$90.99

$

Usually ships in 4-12 days

0

30

Gravely 06537200

Nut, Locking Jam Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06927100

Cable, Hood

$14.99

$

In Stock, only 1 left!

0

32

Gravely 06439500

Washer, Flat Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

33

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
