992314 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 001500 - 001599) Motors And Wheels Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

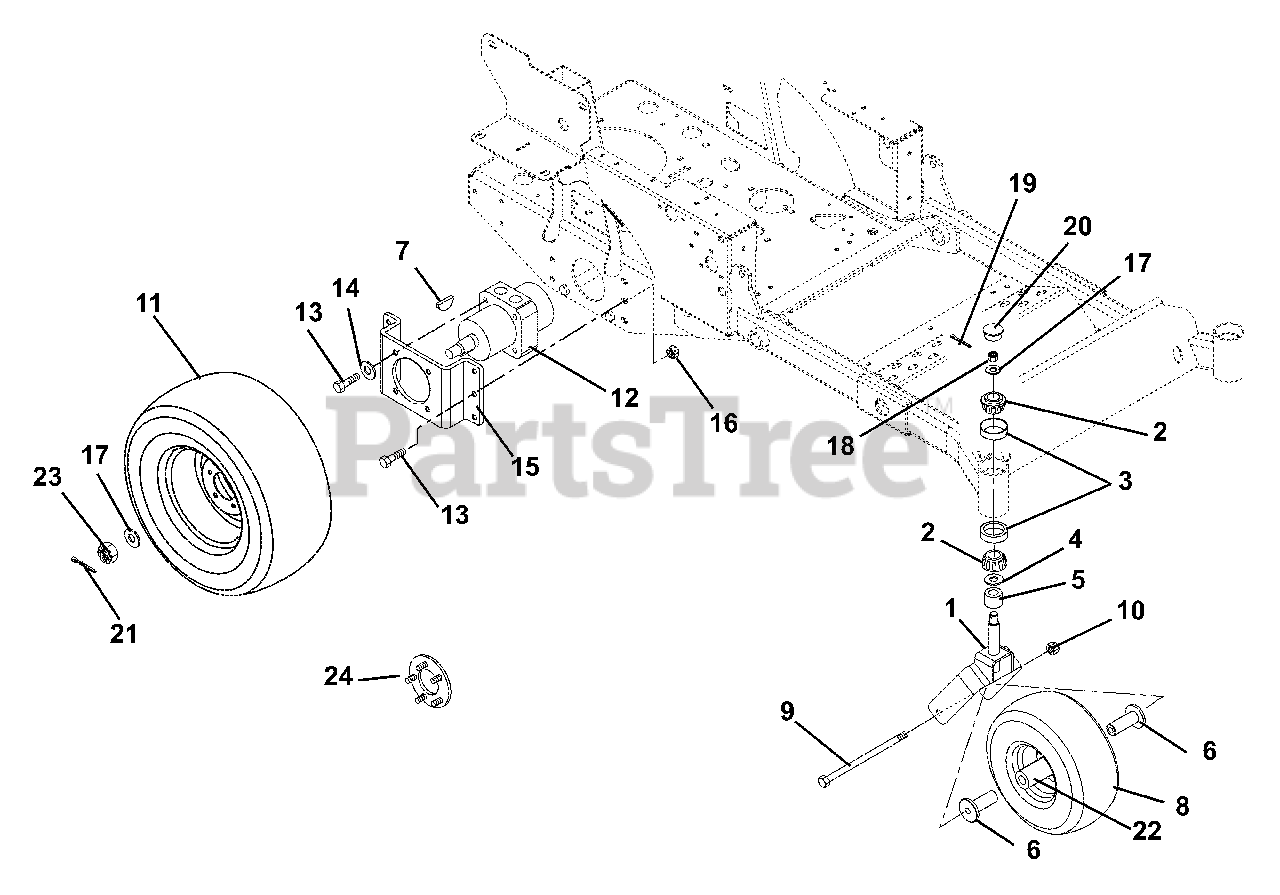

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09296351

Weldment, Front Fork
(Superseded to 59208400)

$206.99

$

Usually ships in 4-12 days

0

2

Gravely 05406900

Bearing, Cone with Grease, 1.0 x .58

$18.99

$

In Stock, Qty 20+

0

3

Gravely 038109

Bearing, Cup 1.980 x .420
(Superseded to 05407000)

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 00160700

Spacer, Wheel

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 124549

Key, Woodruff .31 x 1.00
(Superseded to 06608700)

Note: (Included with Item 12)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07160100

Wheel/Tire Assembly 5.25 x 13.00
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

9

Gravely 05978200

Bolt, Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07160200

Wheel, Tire Assembly 7.00 x 21.00 (056, 314)
(Superseded to 07100216)

Note: (056, 314)

$

$

Not available

11

Gravely 07100003

Wheel, Tire Assembly 20 x 10-10 (065)

Note: (065)

$239.99

$

Usually ships in 4-12 days

0

11

Gravely 07100022

Wheel, Tire Assembly 20 x 10-10 (065)

Note: (065)

$180.99

$

Usually ships in 4-12 days

0

11

Gravely 07100010

Tire, 20 x 10.00-NHS Turf Saver (065)

Note: (065)

$

$

Not available

11

Gravely 07100023

Tire, 20 x 10.00 Multi Trac C-S (065)
(Superseded to 07100215)

Note: (065)

$125.99

$

Usually ships in 4-12 days

0

11

Gravely 07100008

Tire, 21 x 7.00 Turf Saver (056, 314)

Note: (056, 314)

$205.99

$

Usually ships in 4-12 days

0

12

Gravely 04915500

Motor, Hydraulic Wheel
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

13

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09296600

Bracket, Wheel Motor

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 00595500

Nut, Slotted .75-16

$3.49

$

In Stock, only 3 left!

0

19

Gravely 06712300

Pin, Cotter .16 x 1.00

$2.49

$

In Stock, Qty 5

0

20

Gravely 038919

Cap, Dust
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0

21

Gravely 06713400

Pin-Cotter .09 x 1.25 Extended Prong Square Cut

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 05435700

Bearing, 25MM I.D. x 52MM OD x 15MM

Note: (Included with item 8)

$22.99

$

In Stock, Qty 19

0

23

Gravely 06528300

Nut, Hex .75-20

$

$

Not available

24

Gravely 07100013

Assembly, Service Hub with Studs
(Superseded to 07100028)

$83.99

$

In Stock, only 1 left!

0
