992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Seat Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

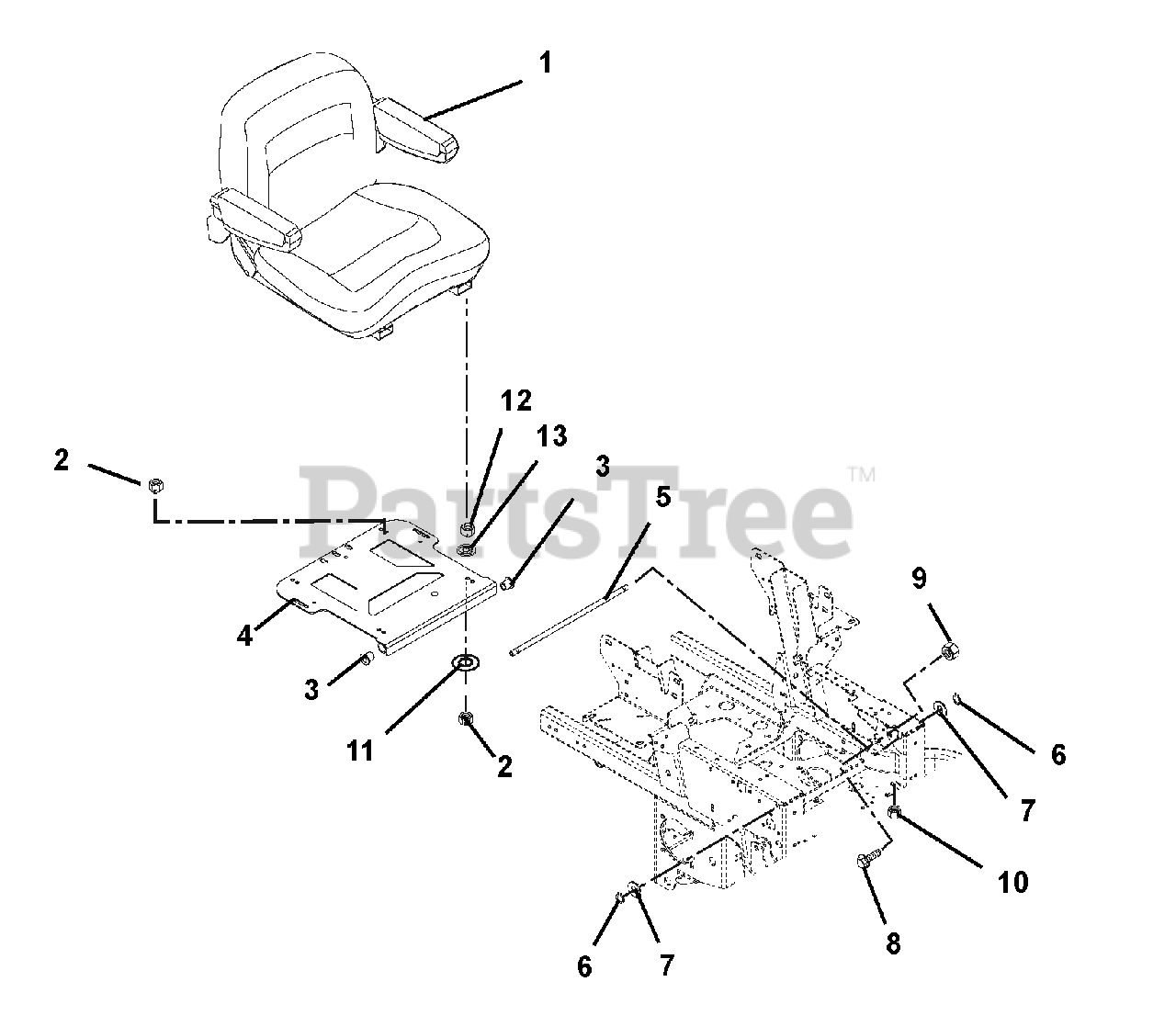

Seat Parts Diagram

  • Title

1

Ariens 00458600

SEAT
(Superseded to 03829400)

$439.99

$

In Stock, only 2 left!

0

2

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

4

Ariens 00460651

WMT, SEAT PLATE
(Superseded to 03256751)

$

$

Not available

5

Ariens 09282700

ROD, SEAT FRAME PIVOT

$15.99

$

Usually ships in 4-12 days

0

6

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

7

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07056200

FITTING, BARBED

$

$

Not available

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

13

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0
