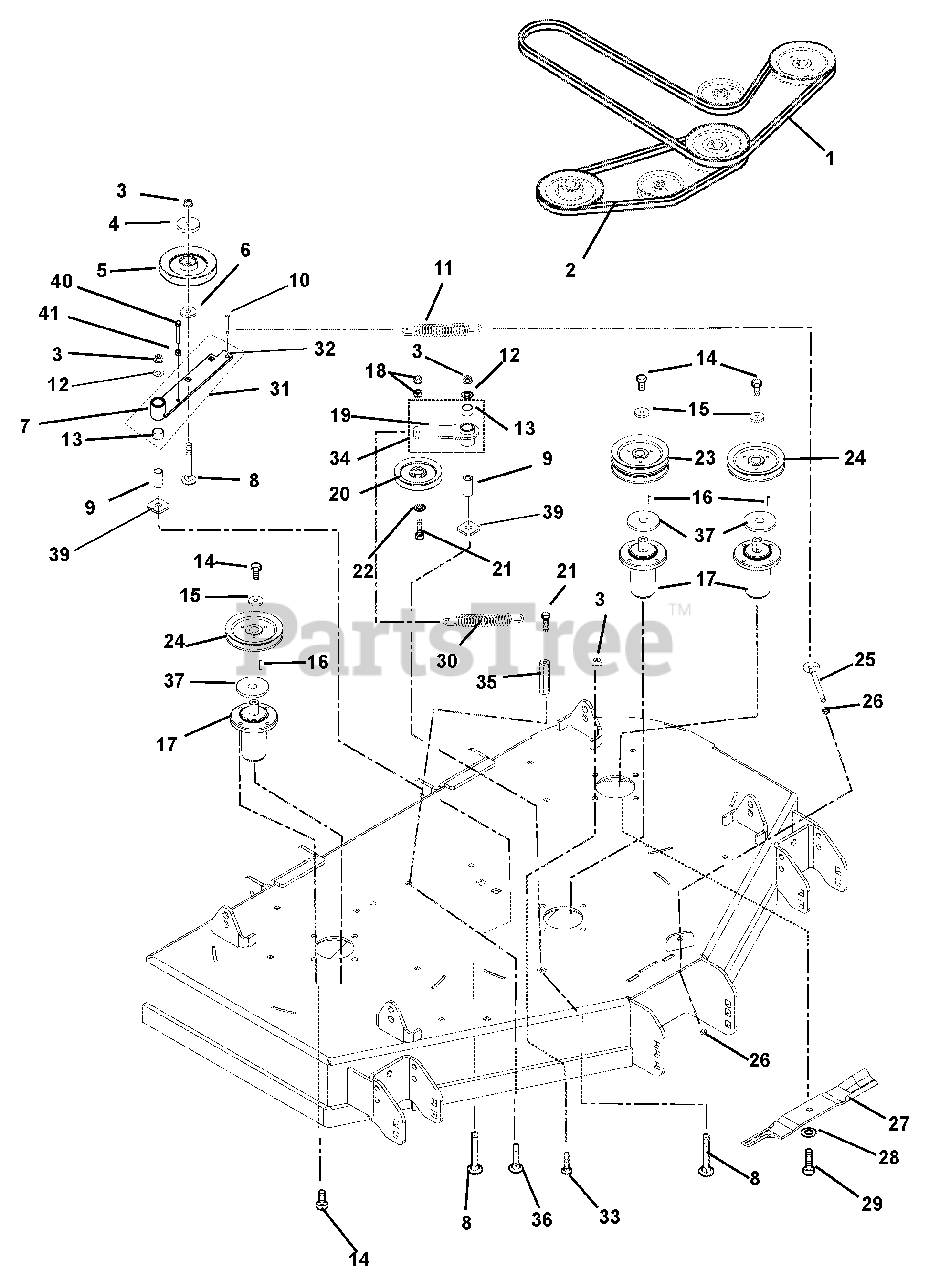

992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Ariens 07200024

HEX BELT, BB-WRAPPED

$136.99

$

In Stock, only 2 left!

0

2

Ariens 07200035

V-BELT, B-COGGED

$54.99

$

In Stock, only 4 left!

0

3

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

5

Ariens 07300429

PLY-V 6.0 X .500 ID SNGL BRG.
(Superseded to 07300527)

Note: (Serial Numbers 6500 and up)

$53.99

$

In Stock, Qty 20+

0

Ariens 07328000

PLY-V 6.0 X .500 ID DBL BRG.

Note: (Serial Numbers 000101 - 006499)

$108.99

$

In Stock, only 1 left!

0

6

Ariens 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 18

0

7

Ariens 03774251

WMT, IDLER ARM

$68.99

$

In Stock, only 1 left!

0

8

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

9

Ariens 07000031

BEARING, PEDESTAL

$80.99

$

In Stock, only 1 left!

0

10

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

11

Ariens 08300030

SPRING, EXTENSION
(Superseded to 08300505)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

17

Ariens 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

18

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00345600

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, only 4 left!

0

20

Ariens 07300015

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07300031

SHV,DOUBLE 1.0"ID X 5.50" OD
(Superseded to 07329267)

$80.99

$

In Stock, only 1 left!

0

24

Ariens 07300030

SHV,SINGLE 1.0"ID X 5.50" OD
(Superseded to 07329367)

$68.99

$

In Stock, Qty 16

0

25

Ariens 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

26

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 04936000

BLADE, 32" (16.25)

Note: (16.25)

$28.99

$

Usually ships in 4-12 days

0

28

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

29

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Ariens 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Ariens 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

$79.99

$

In Stock, only 1 left!

0

32

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$5.99

$

In Stock, only 1 left!

0

34

Ariens 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item # 13 and item # 19)

$62.99

$

Usually ships in 4-12 days

0

35

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

36

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0

38

Ariens 06224900

@BLT-RDHDSQNK .50-13X3.00 G5YZ

$5.99

$

In Stock, Qty 16

0

39

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

40

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

41

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
