992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000999) Motors And Wheels Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

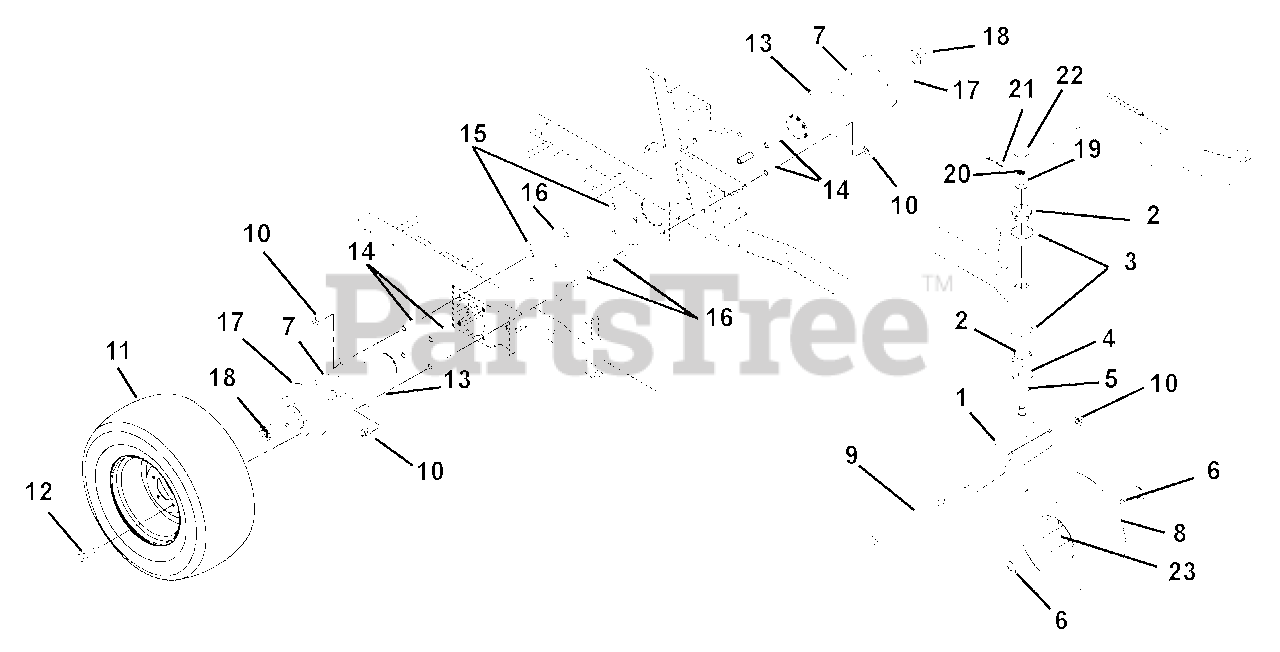

Motors And Wheels Parts Diagram

  • Title
1

Ariens 09282451

FORK - BLACK
(Superseded to 59208600)

$

$

Not available

2

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 3 left!

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$7.99

$

In Stock, Qty 6

0

6

Ariens 00160900

SPACER, WHEEL

$38.99

$

In Stock, only 2 left!

0

7

Ariens 06607800

KEY-WDRF .31X1.00 SFT #B

Note: (Included with 13)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Ariens 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07159400

WHL/TIRE 23X9.50-12 MULTITRAC
(Superseded to 07101116)

$290.99

$

In Stock, only 1 left!

0

Ariens 07159500

TIRE, 23X9.50-12 MULTITRAC
(Superseded to 07149000)

$

$

Not available

12

Ariens 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Ariens 09262800

WHEEL MOTOR, MB15

Note: (includes 18 & 7)

$905.99

$

Usually ships in 4-12 days

0

14

Ariens 05531400

BSHG-SLV .513X.748X2.129

$13.99

$

Usually ships in 4-12 days

0

15

Ariens 09278500

PLATE, MOTOR SUPPORT

$

$

Not available

16

Ariens 07067300

BOLT, WHEEL MOTOR 1/2-13X5.00

$

$

Not available

17

Ariens 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$297.99

$

Usually ships in 4-12 days

0

18

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$30.99

$

In Stock, only 1 left!

0

19

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

20

Ariens 00595500

NUT, SLOTTED .75-16

$3.49

$

In Stock, only 3 left!

0

21

Ariens 06712300

@PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 5

0

22

Ariens 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

23

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 15

0
