992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000999) Deck Lift And Motors To Pump Circuits Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

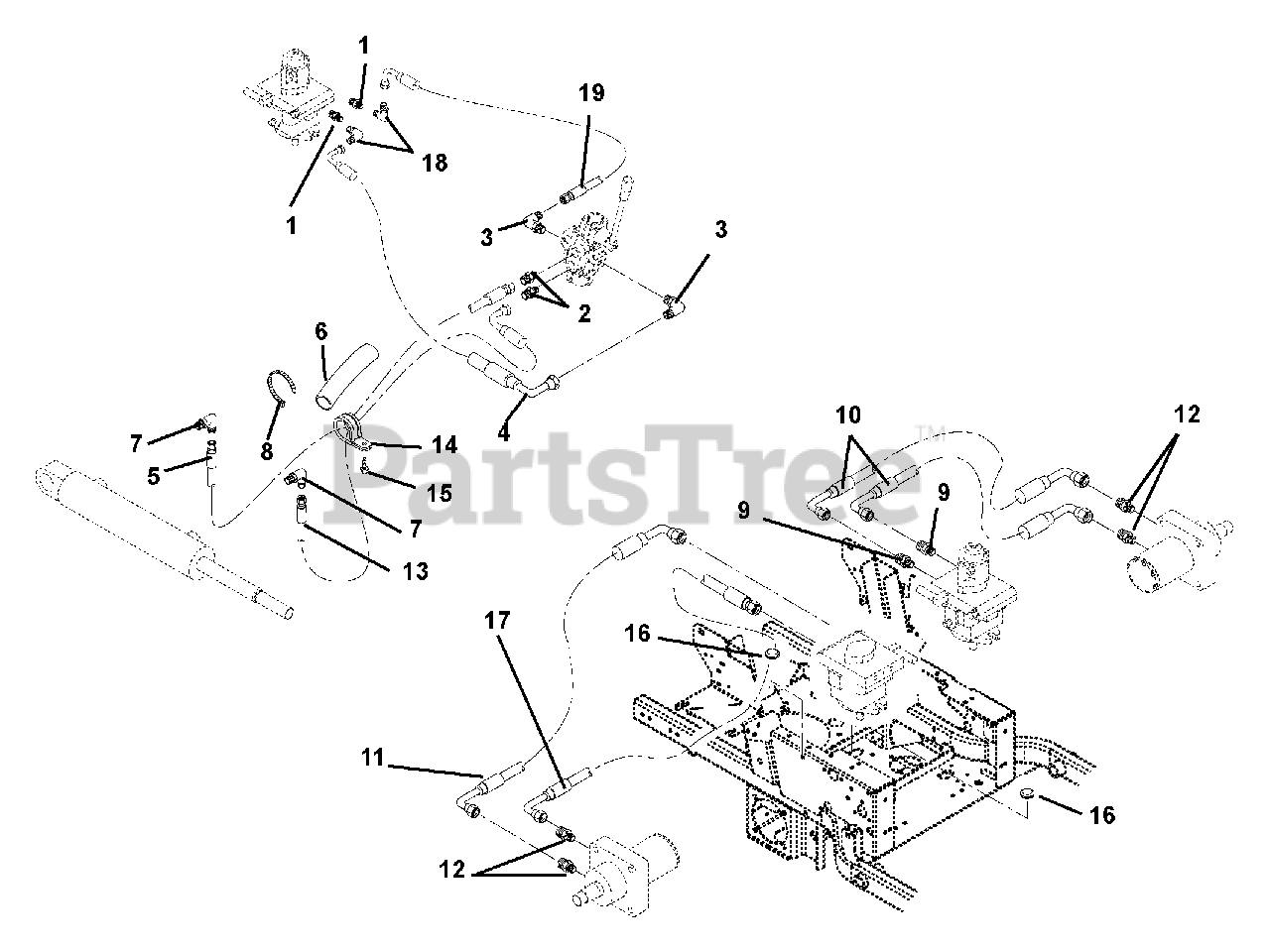

Deck Lift And Motors To Pump Circuits Parts Diagram

  • Title

1

Ariens 07063700

FITTING, HYD (4 F5OLO)

$

$

Not available

2

Ariens 07063800

FITTING, HYD (4-6 F5OLO)

$14.99

$

Usually ships in 4-12 days

0

3

Ariens 07067500

FTG, HYD ELBOW M4F-M8O

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 00297600

HOSE,HYD .25-19-2K F04F9-F04F9

$

$

Not available

5

Ariens 00275700

HOSE,HYD .25-47-2K FO4F0-FO4F0

$

$

Not available

6

Ariens 09249400

SLEEVE, PROTECTIVE

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 07063900

FITTING, HYD (4 C5OLO)

$14.99

$

Usually ships in 4-12 days

0

8

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

9

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.49

$

In Stock, only 4 left!

0

10

Ariens 09281800

HOSE,HYD .50-19-2K F08F9-F08F9

$177.99

$

Usually ships in 4-12 days

0

11

Ariens 09281700

HOSE,HYD .50-20-2K F08F0-F08F0

$174.99

$

In Stock, only 1 left!

0

12

Ariens 07062100

FTG, HYD STR M10O-M8F

$14.99

$

In Stock, only 1 left!

0

13

Ariens 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

$137.99

$

Usually ships in 4-12 days

0

14

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0

17

Ariens 09269600

HOSE,HYD .50-17-2K F08F0-F08F9

$155.99

$

Usually ships in 4-12 days

0

18

Ariens 07000015

FTG, HYD ELBOW F4F-M4O

$

$

Not available

19

Ariens 00297700

HOSE,HYD .25-15-2K F04F9-F04F0

$

$

Not available
