992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 002501 - 002999) Fuel Tanks And Hoses Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

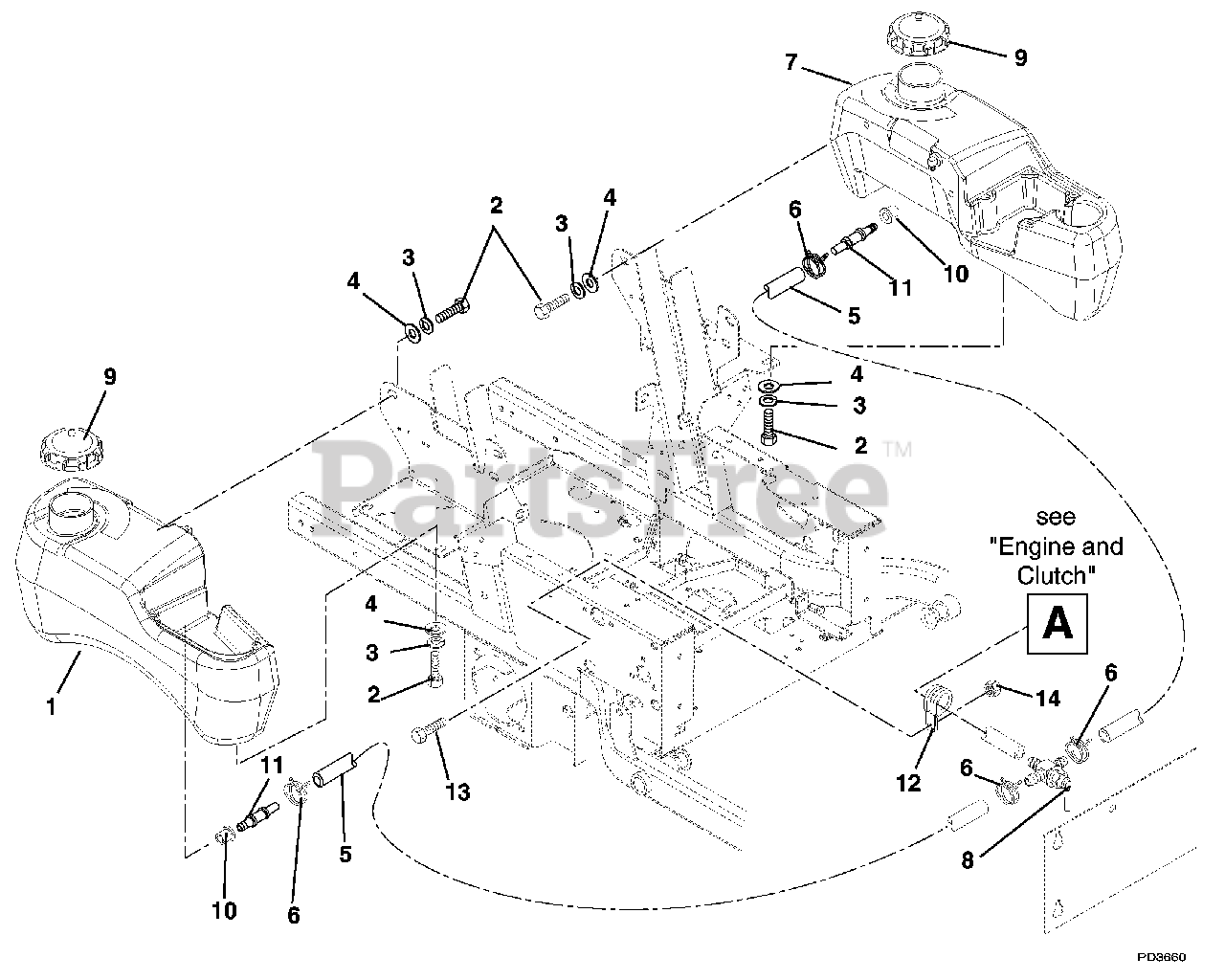

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09281500

Tank, Gas - Right Hand

$

$

Not available

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 021134

Gas Line, Bulk .25" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 10

0

7

Gravely 00191100

Tank, Left Hand Fuel (EYE-Q) 100 Series

Note: (EYE-Q) 100 Series

$276.99

$

Usually ships in 4-12 days

0

8

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

9

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

10

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 07064500

Fuel Tank Fitting

$12.99

$

In Stock, only 2 left!

0

12

Gravely 06918200

Clamp, Cushioned Steel (054, 055)

Note: (054, 055)

$

$

Not available

13

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5 (054, 055)
(Superseded to 05901711)

Note: (054, 055)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06542000

Nut, Locking Top Flange .38-16 (054, 055)
(Superseded to 06500822)

Note: (054, 055)

$1.49

$

In Stock, Qty 20+

0
