992311 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000500 - 000999) Lift Valve And Cylinder Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

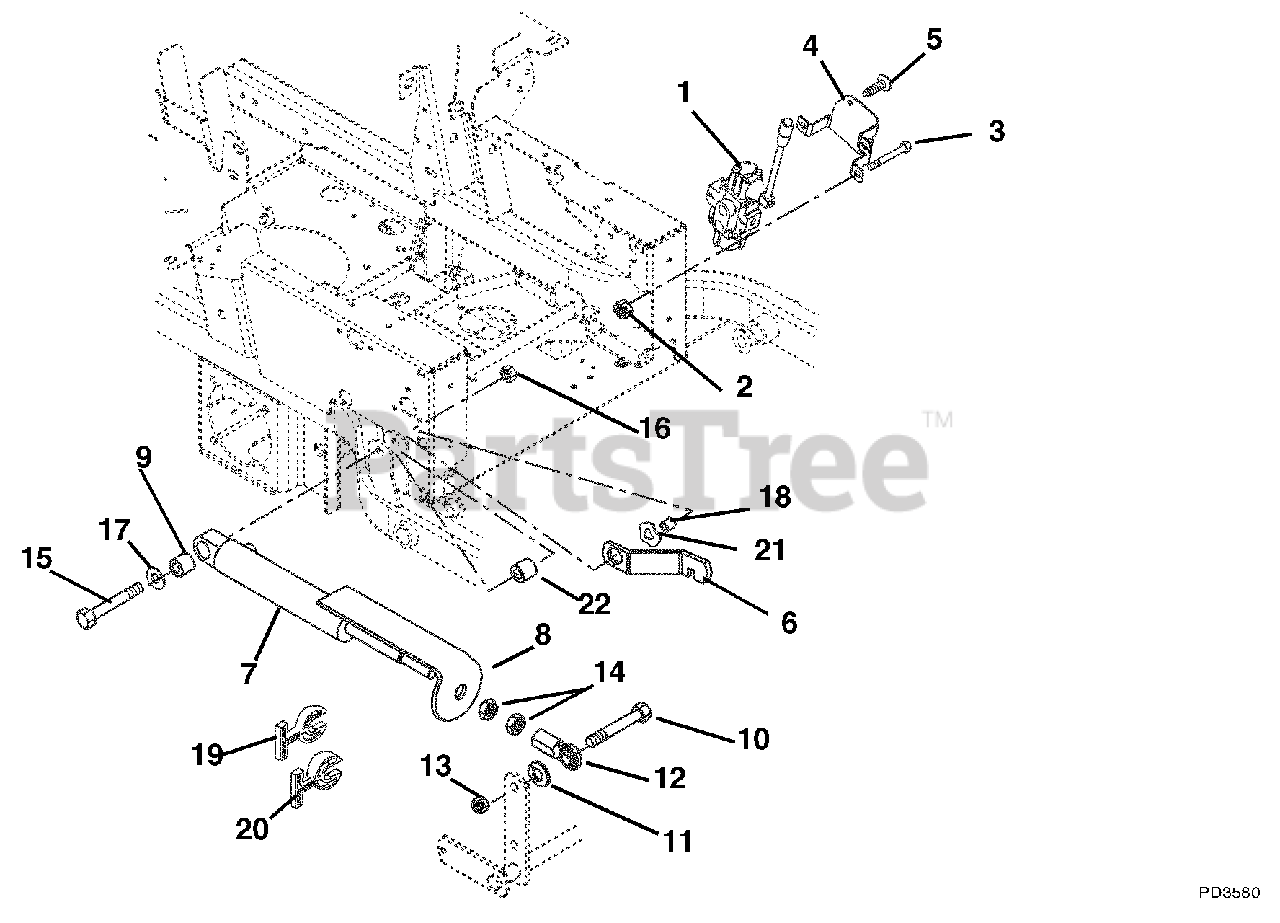

Lift Valve And Cylinder Parts Diagram

  • Title
1

Gravely 09285000

Valve, Hydraulic

$

$

Not available

2

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09283051

Valve Mounting Bracket

$

$

Not available

5

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

$

$

Not available

7

Gravely 09245100

Cylinder-Hydraulic Lift
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

8

Gravely 09285400

Strap, Cut Indicator/Guard

$

$

Not available

9

Gravely 09215200

Bushing .516 x 1.000 x 1.050

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

Rod End-Right Hand-Female 5/8

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06539600

Nut-Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 09275700

Post, Cylinder Stop

$

$

Not available

16

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 3 left!

0

18

Gravely 05532100

Bushing-Flange .515 x .75 x .275 x 1.12

$

$

Not available

19

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, only 2 left!

0

20

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0

21

Gravely 09252000

Washer-Wave .076 x 1.12 xz .08

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 09293600

Spacer .50 I.D. x .88 O.D. x .88

$4.99

$

Usually ships in 4-12 days

0
