992310 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 000499) Motors And Wheels Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

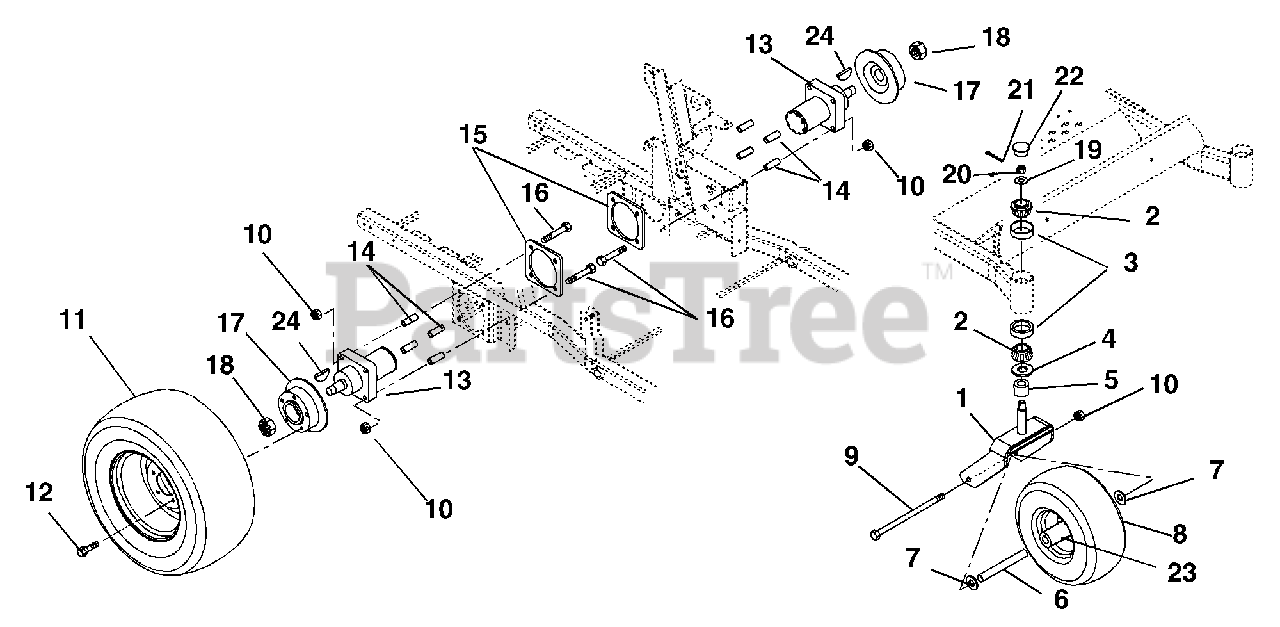

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09282451

Fork
(Superseded to 59208600)

$

$

Not available

2

Gravely 69000300

Bearing-Cone w/ Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 038109

Bearing-Cup 1.980 x .420
(Superseded to 05407000)

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 09231800

Spacer-Wheel

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

8

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Gravely 05961200

Bolt-Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07148900

Wheel-Tire 23 x 10.50 - 12 Multi-Trac (043, 044, 311)
(Superseded to 07101116)

Note: (043, 044, 311)

$290.99

$

In Stock, only 2 left!

0

11

Gravely 07159400

Wheel-Tire Assembly 23 x 9 50-12 (042, 310)
(Superseded to 07101116)

Note: (042, 310)

$290.99

$

In Stock, only 2 left!

0

11

Gravely 07152300

Wheel-Tire Assembly, 23X10.50-12 (051)
(Superseded to 59101000)

Note: (051)

$271.99

$

Usually ships in 4-12 days

0

11

Gravely 07149000

Tire 23 x 10.50 (043, 044, 051)

Note: (043, 044, 051)

$

$

Not available

11

Gravely 07159500

Tire, 23 x 9.50-12 Multitrac (042, 310)
(Superseded to 07149000)

Note: (042, 310)

$

$

Not available

12

Gravely 07067700

Bolt-Lug Grade 8; .50-20 Unf x .75 Long 60 Degree
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Gravely 09262800

Hydraulic Wheel Motor

Note: (Includes 18 & 24)

$905.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.13

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 09278500

Plate, Motor Support

$

$

Not available

16

Gravely 07067300

Bolt-Hex .50-13 x 5.00 Grade 5

$

$

Not available

17

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

18

Gravely 06541900

Nut -Lock Jam Patch

Note: (Included with 13)

$30.99

$

In Stock, only 1 left!

0

19

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

20

Gravely 00595500

Nut-Slotted .75-16

$3.49

$

In Stock, only 3 left!

0

21

Gravely 06712300

Pin-Cotter .16 x 1.00

$2.49

$

In Stock, Qty 5

0

22

Gravely 038919

Cap-Dust
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0

23

Gravely 05435700

Bearing, 25MM I.D. x 52MM OD x 15MM

$22.99

$

In Stock, Qty 19

0

24

Gravely 117977

Key-Woodruff .31 x 1.00
(Superseded to 06607800)

Note: (Included with 13)

$3.99

$

Usually ships in 4-12 days

0
