992310 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 000499) Frame Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

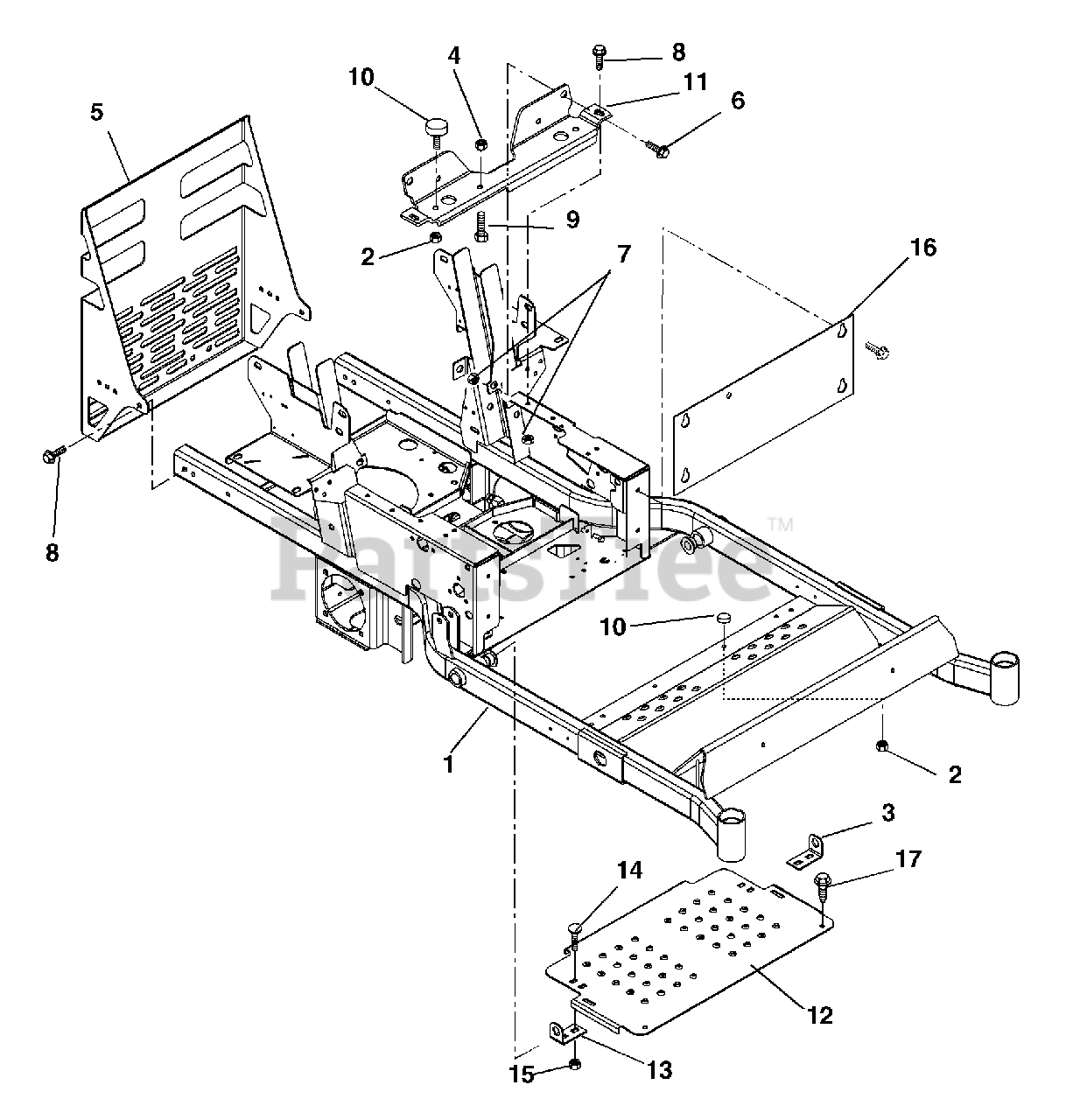

Frame Parts Diagram

  • Title

1

Gravely 09281251

Intermediate Z Frame (042, 043, 044)

Note: (042, 043, 044)

$

$

Not available

1

Gravely 09281351

Intermediate Z Frame (051)

Note: (051)

$

$

Not available

2

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09267151

Hinge, Footboard Left Hand

$

$

Not available

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09292251

Bumper/Guard
(Superseded to 00271751)

$543.99

$

Usually ships in 4-12 days

0

6

Gravely 07049900

Bolt-Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07053300

Nut-Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

8

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

10

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

11

Gravely 09283251

Seat Support

$109.99

$

Usually ships in 4-12 days

0

12

Gravely 09282653

Footrest Panel

$

$

Not available

13

Gravely 09267251

Hinge, Footboard Right Hand

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09284153

Access Panel

$

$

Not available

17

Gravely 07414100

Screw-Tapping .38-16 x 1.00 Hex Washer Head (310, 311)
(Superseded to 07417500)

Note: (310, 311)

$3.99

$

In Stock, only 2 left!

0
