992309 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 001500 & Above) Lift Valve And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

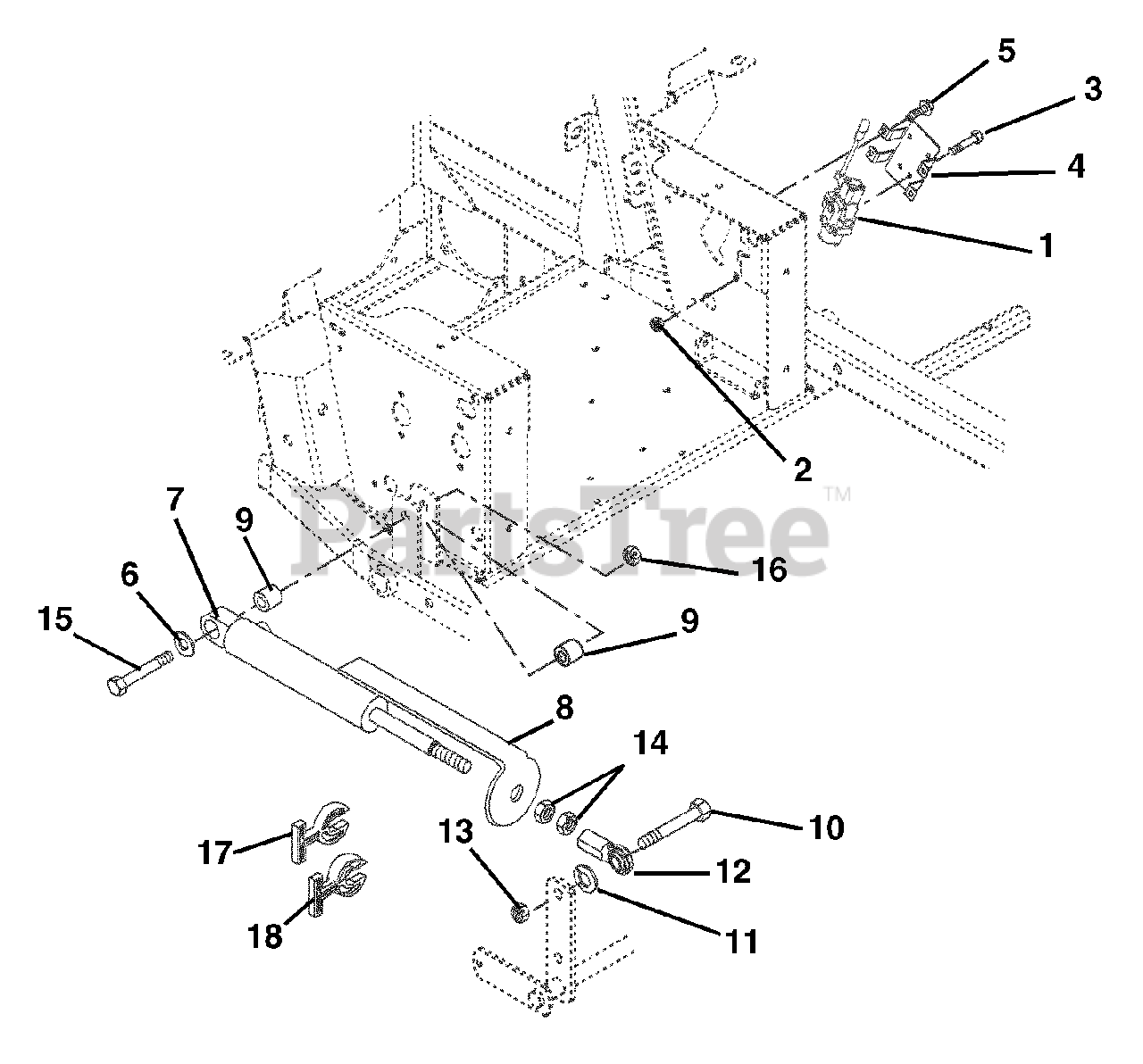

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09265100

Valve, Hydraulic
(Superseded to 03791700)

$

$

Not available

2

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09290251

Bracket, Valve Mounting
(Superseded to 03791851)

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 3 left!

0

7

Gravely 09245100

Cylinder-Hydraulic Lift
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

8

Gravely 09255900

Strap-Height of Cut Indicator

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

Bushing .516 x 1.00 x 1.05

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

Rod End-Right Hand-Female .625

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06539600

Nut-Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 09275700

Post, Cylinder Stop

$

$

Not available

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, only 2 left!

0

18

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0
