992301 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

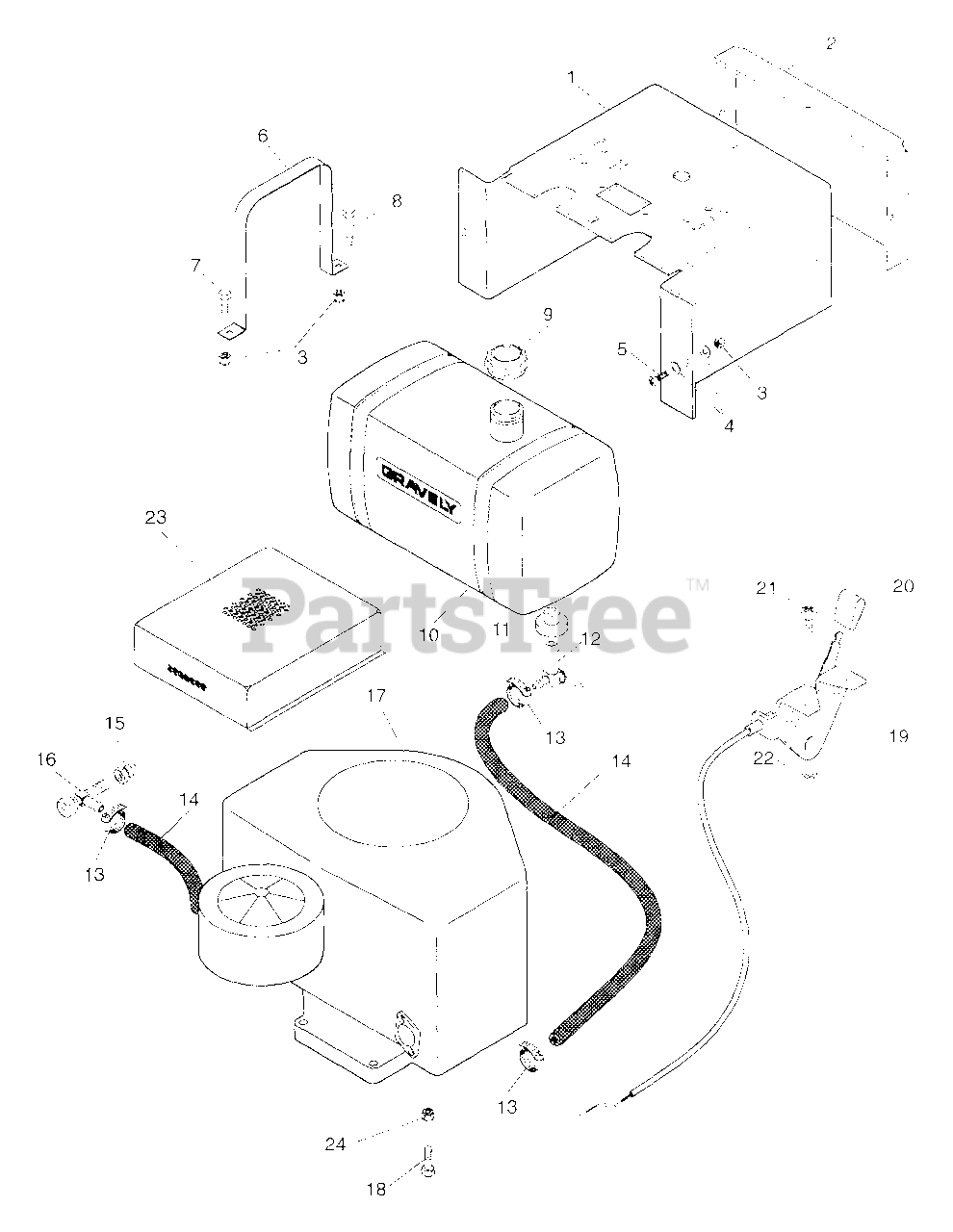

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 091022

Panel, Silkscreen

Note: (003,004,301)

$

$

Not available

1

Gravely 092225

Panel, Silkscreen
(Superseded to 59200600)

Note: (005,006)

$

$

Not available

2

Gravely 091067

Cover, Instrument Panel
(Superseded to 09106700)

$

$

Not available

3

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 160540

Screw Machine .25-20

$

$

Not available

6

Gravely 092207

Strap, Fuel Tank
(Superseded to 09220751)

$

$

Not available

7

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 180022

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

9

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

10

Gravely 092206

Tank, Fuel PM 200
(Superseded to 59200400)

$

$

Not available

11

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 049281

Valve, Ball Shut-Off

$

$

Not available

13

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

Note: (003,004,301)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 092223

Module, Time Delay

Note: (005,006)

$

$

Not available

16

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

082391

Engine, 20 HP Kohler CV2OS

Note: (003,004,301)

$

$

Not available

17

Gravely 082400

Engine, Kaw 18HP

Note: (005,006)

$

$

Not available

18

Gravely 074030

Screw-Tapping .375-16 x 1.0
(Superseded to 07417500)

Note: (003,004,301)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 059414

Bolt-Hex M8 x 1.25 x 25MM
(Superseded to 05964900)

Note: (005,006)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 059416

Bolt-Hex M10 x 1.5 x 16MM
(Superseded to 05941600)

Note: (005,006)

$

$

Not available

19

Gravely 053237

Assembly, Throttle Control
(Superseded to 06923300)

Note: (003,004,301)

$

$

Not available

19

Gravely 069250

Assembly, Throttle Control
(Superseded to 06941100)

Note: (005,006)

$45.99

$

Usually ships in 4-12 days

0

20

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

21

Gravely 160046

Screw-Machine 10-32 x .50
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 065028

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 092231

Weldment, Pre-Cleaner Screen
(Superseded to 09223151)

Note: (005,006)

$

$

Not available

24

Gravely 065289

Nut-Hex MB x 1.25
(Superseded to 06541700)

Note: (005,006)

$1.49

$

Usually ships in 4-12 days

0
