992301 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) 50" MOWER DECK Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

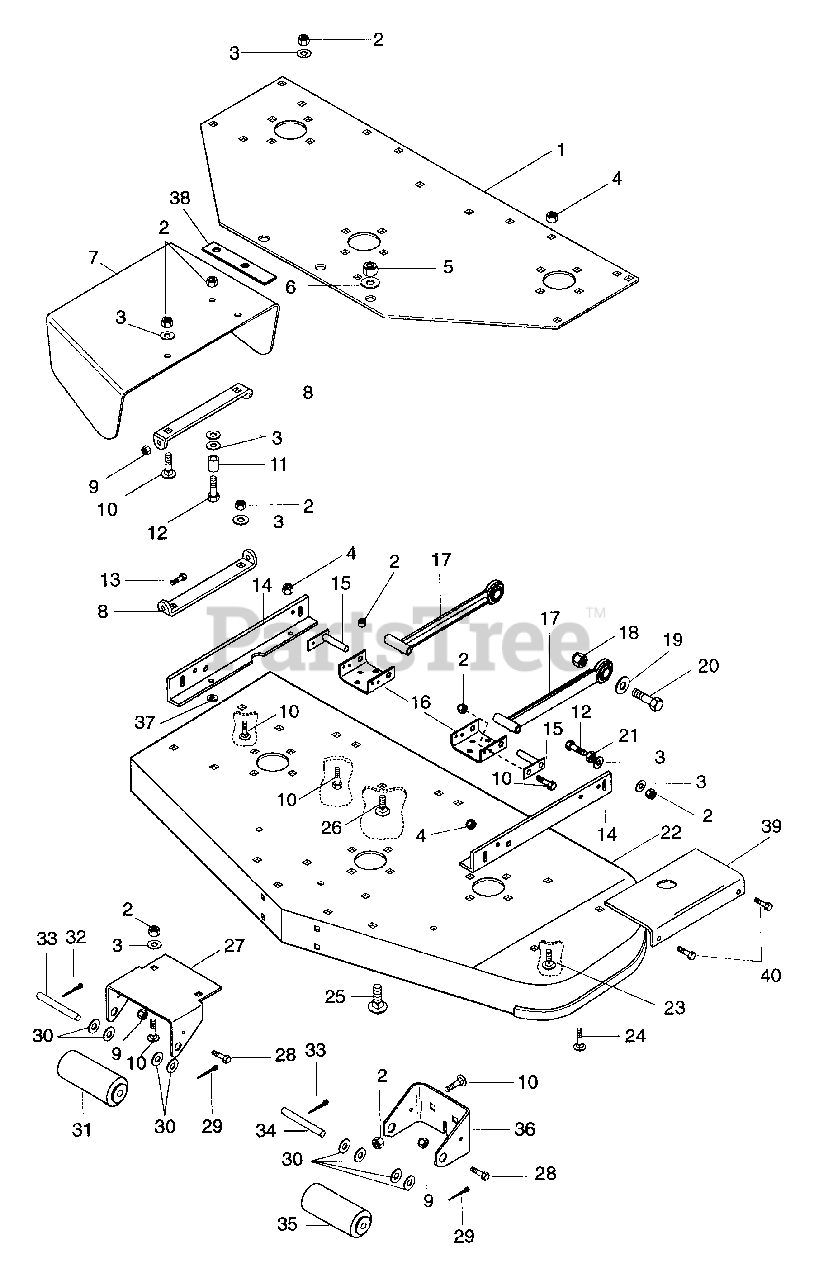

50" MOWER DECK Parts Diagram

  • Title

1

Gravely 052760

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 2
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

7

Gravely 052805

Shield, Safety External 50" Mower
(Superseded to 08850600)

$

$

Not available

8

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

9

Gravely 103422

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

11

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

12

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

13

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 092097

Bracket, 50" Mower Mounting L.H.
(Superseded to 09209753)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 092096

Bracket. 50" Mower Mounting R.H.
(Superseded to 09209653)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 092137

Weldment, Mower Mounting Pin
(Superseded to 09213700)

$

$

Not available

16

Gravely 092098

Bracket, Mower Mounting Rear
(Superseded to 09209853)

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 092095

Weldment, Mower Mounting Arm
(Superseded to 09209553)

$113.99

$

Usually ships in 4-12 days

0

18

Gravely 065281

Nut, Locking .875-9
(Superseded to 06528100)

$

$

Not available

19

Gravely 039192

Washer Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$3.99

$

In Stock, Qty 16

0

20

059459

Bolt-Hex .87-9 x 2.75 Grade 5

$

$

Not available

21

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 052750

Weldment, 50" Mower Fabricated
(Superseded to 08849100)

$

$

Not available

23

Gravely 126211

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 126358

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 126277

Bolt-Round Head Square Neck .375-16 x .75 Grade 1

$

$

Not available

27

Gravely 052796

Bracket, Roller R.H.
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

28

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 031390

Roller, Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

32

Gravely 179128

Pin-Cotter .25 x 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

33

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

34

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

35

Gravely 015351

Roller, Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

36

Gravely 045210

Bracket, Roller
(Superseded to 08966853)

$

$

Not available

37

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

38

Gravely 088815

Limiter, Disch. Chute
(Superseded to 08881500)

Note: (301)

$

$

Not available

39

Gravely 092237

Guard, Mower Belt
(Superseded to 09223751)

Note: (301)

$

$

Not available

40

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (301)

$1.49

$

In Stock, Qty 20+

0
