992296 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Yamaha MX (SN: 070000 - 074999) Engine - Yamaha MX825V Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Yamaha MX

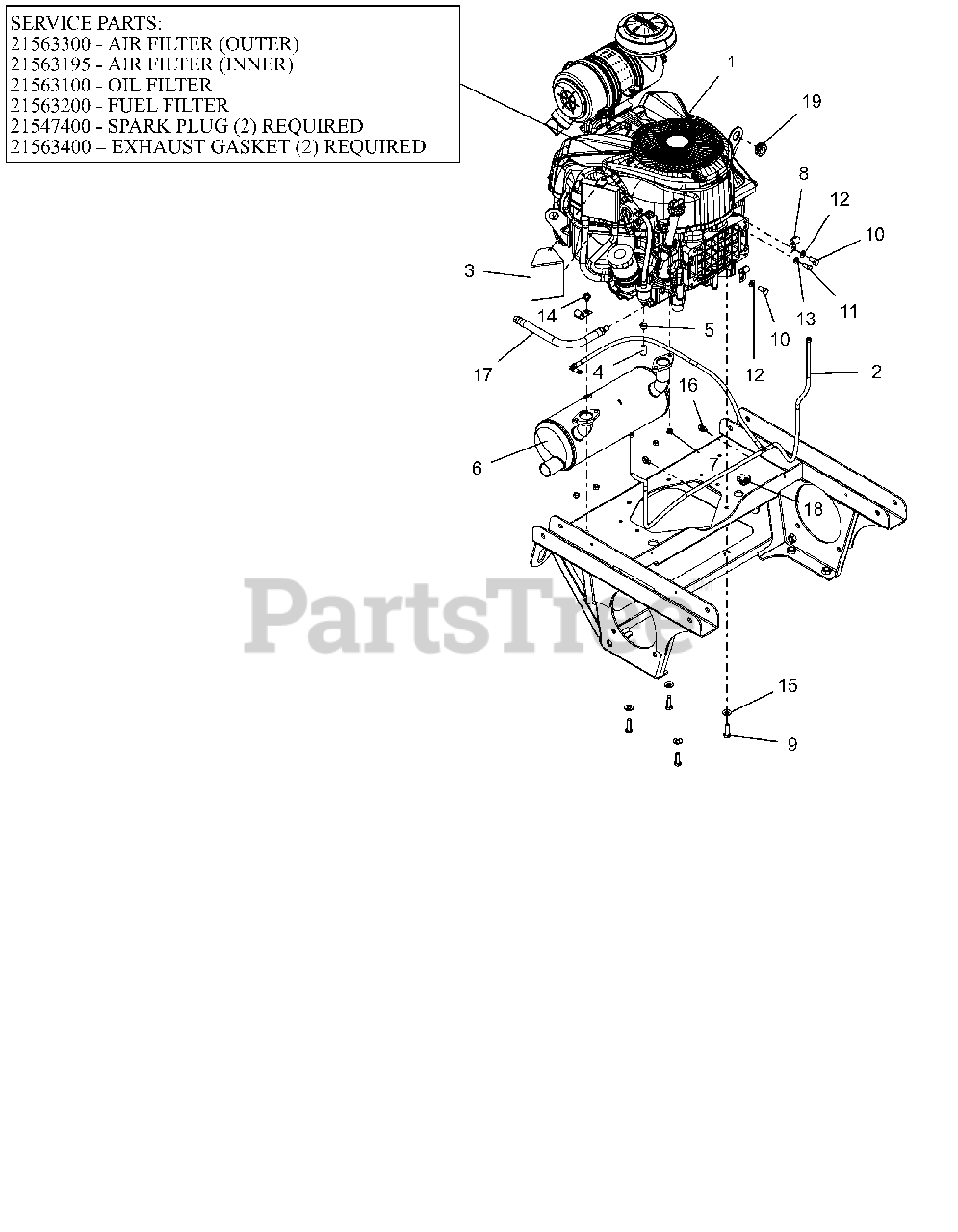

Engine - Yamaha MX825V Parts Diagram

  • Title
1

Gravely 08201322

ENGINE, YAMAHA MX 825V
(Superseded to 21563280)

$3515.99

$

Usually ships in 4-12 days

0

1

Gravely 21563300

AIR FILTER (OUTER) - YAMAHA

Note: SERVICE PART

$67.99

$

Usually ships in 4-12 days

0

1

Gravely 21563195

AIR FILTER (INNER) - YAMAHA

Note: SERVICE PART

$56.99

$

In Stock, only 2 left!

0

1

Gravely 21563100

FILTER, OIL - YAMAHA 824

Note: SERVICE PART

$26.99

$

In Stock, only 2 left!

0

1

Gravely 21563200

FILTER-FUEL YAMAHA 824

Note: SERVICE PART

$12.99

$

In Stock, only 1 left!

0

1

Gravely 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0

1

Gravely 21563400

GASKET, MUFFLER YAMAHA 824

Note: SERVICE PART

$

$

Not available

2

Gravely 04981600

ASM, VAPOR LINE

$59.99

$

Usually ships in 4-12 days

0

3

Gravely 05167500

DEFLECTOR,YAMAH OIL COOLER AIR

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05016500

MUFFLER, YAMAHA

$337.99

$

Usually ships in 4-12 days

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

8

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

10

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

16

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

17

Gravely 05088200

HOSE, OIL DRAIN

$

$

Not available

18

Gravely 05167000

HARNESS, YAMAHA CARB ADAPTER

$

$

Not available

19

Gravely 07500423

GROMMET,RUBBER.688 IDX1.000 OD

$

$

Not available
