992295 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Yamaha EFI (SN: 060000 - 061999) Seat Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Yamaha EFI

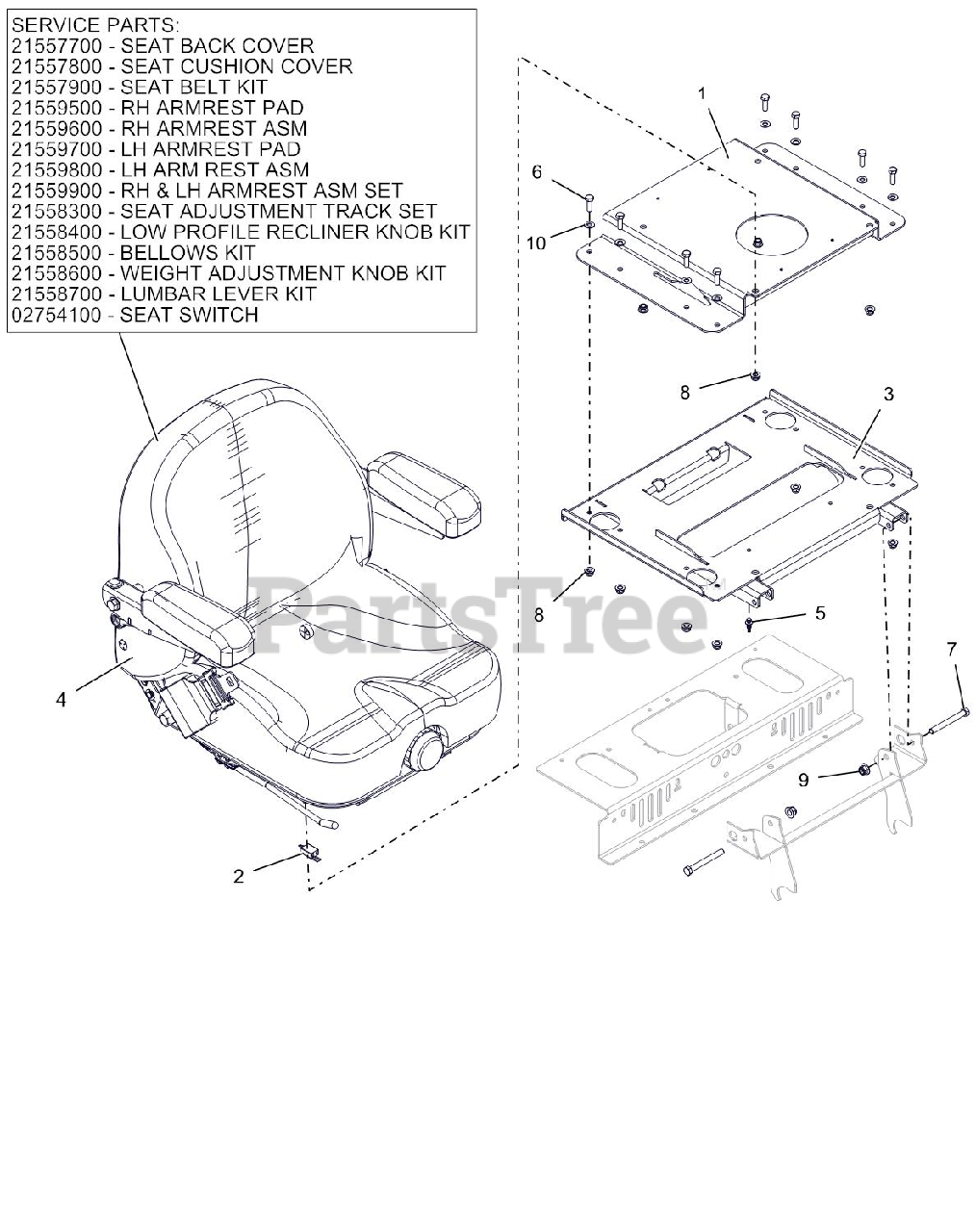

Seat Parts Diagram

  • Title
1

Gravely 04671153

SEAT BASE MOUNTING WLDM - RED
(Superseded to 05254653)

$219.99

$

In Stock, only 1 left!

0

2

Gravely 04782800

HARNESS, PT200 SEAT ADAPTER

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 04876953

SEAT ISO MOUNTING WLDMT - RED

$129.99

$

Usually ships in 4-12 days

0

4

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

4

Gravely 04876000

SEAT, FULL SUSPENSION
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

4

Gravely 21557700

COVER, SEAT BACK

Note: SERVICE PART

$180.99

$

In Stock, only 1 left!

0

4

Gravely 21557800

COVER,SEAT CUSHION

Note: SERVICE PART

$96.99

$

In Stock, only 1 left!

0

4

Gravely 21557900

KIT, SEAT BELT

Note: SERVICE PART

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 21558300

SET, SEAT ADJUSTMENT TRACK

Note: SERVICE PART

$129.99

$

In Stock, only 3 left!

0

4

Gravely 21558400

KIT, LOW PROFILE RECLINER KNOB

Note: SERVICE PART

$43.99

$

Usually ships in 4-12 days

0

4

Gravely 21558500

KIT, BELLOWS

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

4

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: SERVICE PART

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 21558700

KIT, LUMBAR LEVER

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 21559500

PAD, RH ARMREST

Note: SERVICE PART

$77.99

$

In Stock, only 1 left!

0

4

Gravely 21559600

ASM, RH ARMREST

Note: SERVICE PART

$114.99

$

Usually ships in 4-12 days

0

4

Gravely 21559700

PAD, LH ARMREST

Note: SERVICE PART

$59.99

$

In Stock, only 1 left!

0

4

Gravely 21559800

ASM LH ARMREST

Note: SERVICE PART

$

$

Not available

4

Gravely 21559900

SET, RH & LH ARMREST ASM

Note: SERVICE PART

$207.99

$

Usually ships in 4-12 days

0

5

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
