992291 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Yamaha EFI (SN: 070000 & Above) Belt Covers - 52" And 60" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Yamaha EFI

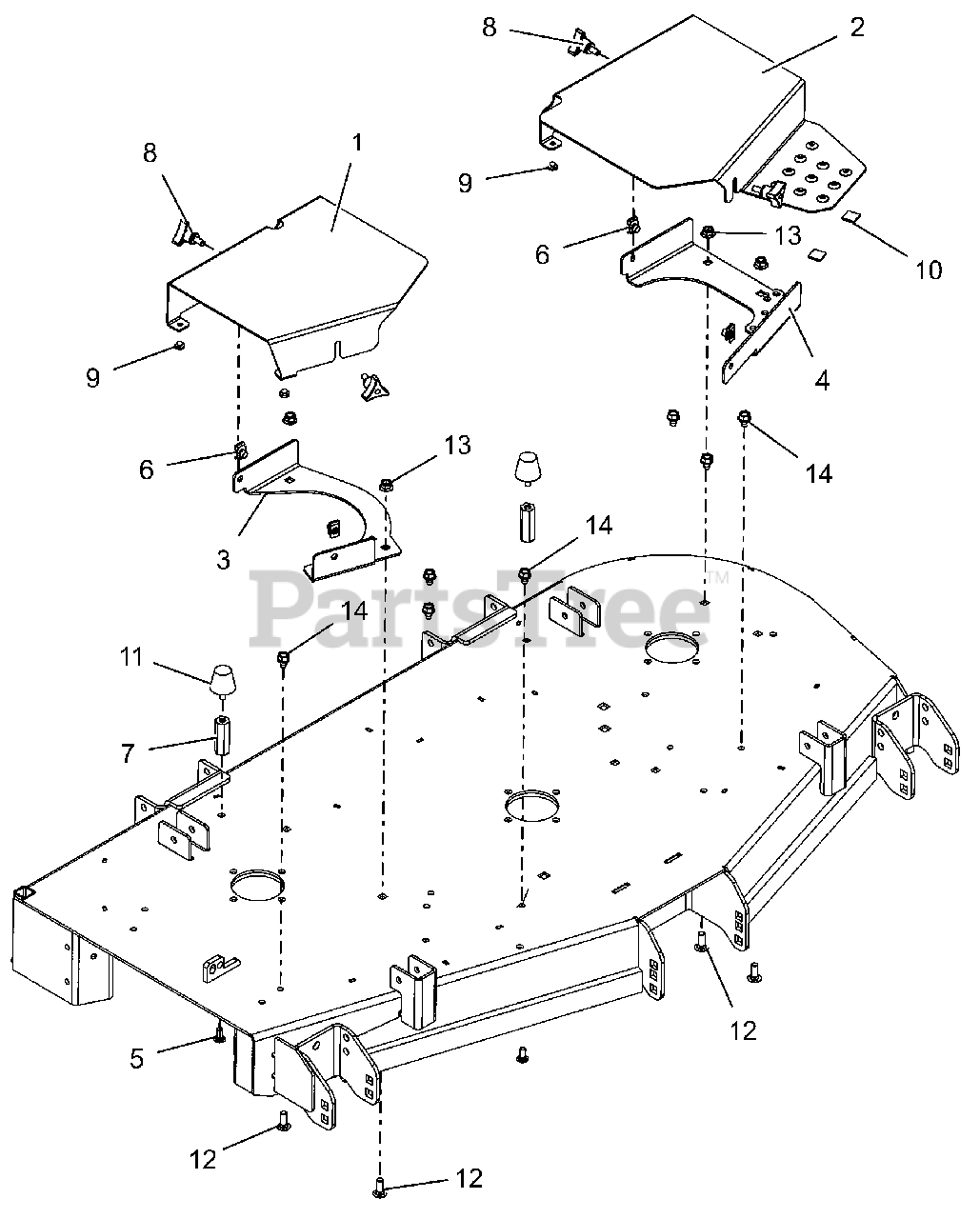

Belt Covers - 52" And 60" Parts Diagram

  • Title

1

Gravely 04899653

GUARD, RH DECK - RED

$67.99

$

Usually ships in 4-12 days

0

2

Gravely 04953653

GUARD, LH BELT - RED

$116.99

$

Usually ships in 4-12 days

0

3

Gravely 04969200

BRKT, BELT GUARD RH MOUNTING (RED)
(Superseded to 04969253)

$44.99

$

In Stock, only 1 left!

0

4

Gravely 04969300

BRKT, BELT GUARD LH (RED)
(Superseded to 04969353)

$35.99

$

In Stock, only 1 left!

0

5

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

7

Gravely 07001630

NUT, .31-18X2.25 LG COUPLING

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

9

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

10

Gravely 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
