992282 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Yamaha EFI (SN: 090000 - 091999) Seat Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Yamaha EFI

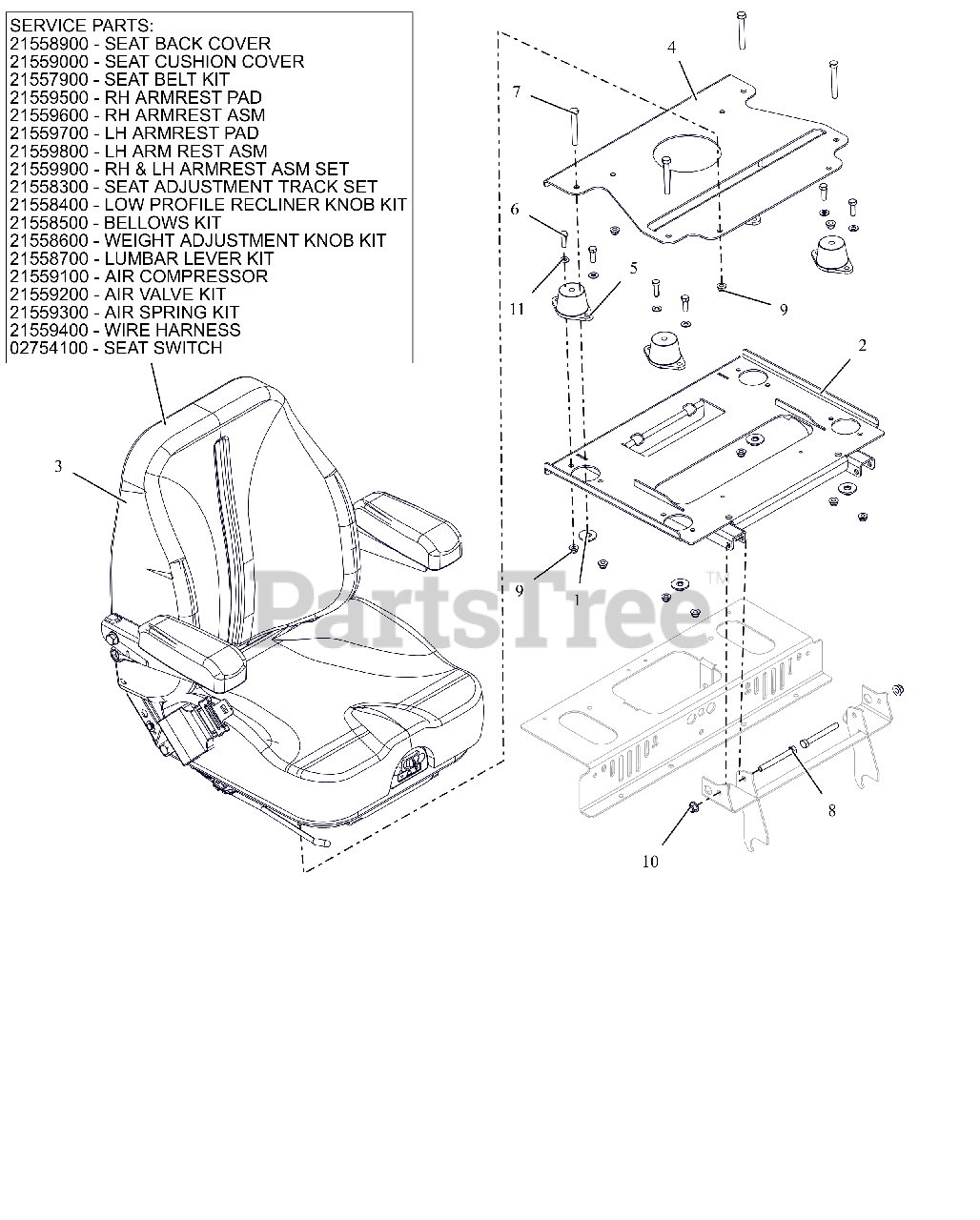

Seat Parts Diagram

  • Title

1

Gravely 04443000

WLDMT, SEAT RETAINER

$22.99

$

In Stock, only 3 left!

0

2

Gravely 59223800

SEAT ISO MTG WMT W/SFTY DECAL

$

$

Not available

3

Gravely 04875900

SEAT, AIR SUSPENSION

$1422.99

$

Usually ships in 4-12 days

0

3

Gravely 21558900

COVER, SEAT BACK

Note: SERVICE PART

$323.99

$

Usually ships in 4-12 days

0

3

Gravely 21559000

COVER, SEAT CUSHION

Note: SERVICE PART

$

$

Not available

3

Gravely 21557900

KIT, SEAT BELT

Note: SERVICE PART

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 21559500

PAD, RH ARMREST

Note: SERVICE PART

$77.99

$

In Stock, only 1 left!

0

3

Gravely 21559600

ASM, RH ARMREST

Note: SERVICE PART

$114.99

$

Usually ships in 4-12 days

0

3

Gravely 21559700

PAD, LH ARMREST

Note: SERVICE PART

$59.99

$

In Stock, only 1 left!

0

3

Gravely 21559800

ASM LH ARMREST

Note: SERVICE PART

$

$

Not available

3

Gravely 21559900

SET, RH & LH ARMREST ASM

Note: SERVICE PART

$207.99

$

Usually ships in 4-12 days

0

3

Gravely 21558300

SET, SEAT ADJUSTMENT TRACK

Note: SERVICE PART

$129.99

$

In Stock, only 3 left!

0

3

Gravely 21558400

KIT, LOW PROFILE RECLINER KNOB

Note: SERVICE PART

$43.99

$

Usually ships in 4-12 days

0

3

Gravely 21558500

KIT, BELLOWS

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: SERVICE PART

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 21558700

KIT, LUMBAR LEVER

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 21559100

COMPRESSOR, AIR RIDE SEAT

Note: SERVICE PART

$382.99

$

Usually ships in 4-12 days

0

3

Gravely 21559200

KIT, AIR VALVE AND LINE

Note: SERVICE PART

$210.99

$

Usually ships in 4-12 days

0

3

Gravely 21559300

KIT, AIR SPRING

Note: SERVICE PART

$193.99

$

Usually ships in 4-12 days

0

3

Gravely 21559400

HARNESS, SEAT WIRE

Note: SERVICE PART

$81.99

$

Usually ships in 4-12 days

0

3

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

4

Gravely 05197353

SEAT MOUNTING PLATE - RED

$74.99

$

Usually ships in 4-12 days

0

5

Gravely 07500415

MOUNT, ISOLATOR

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

8

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
