992281 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Yamaha EFI (SN: 075000 - 079999) Control Panel - Yamaha EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Yamaha EFI

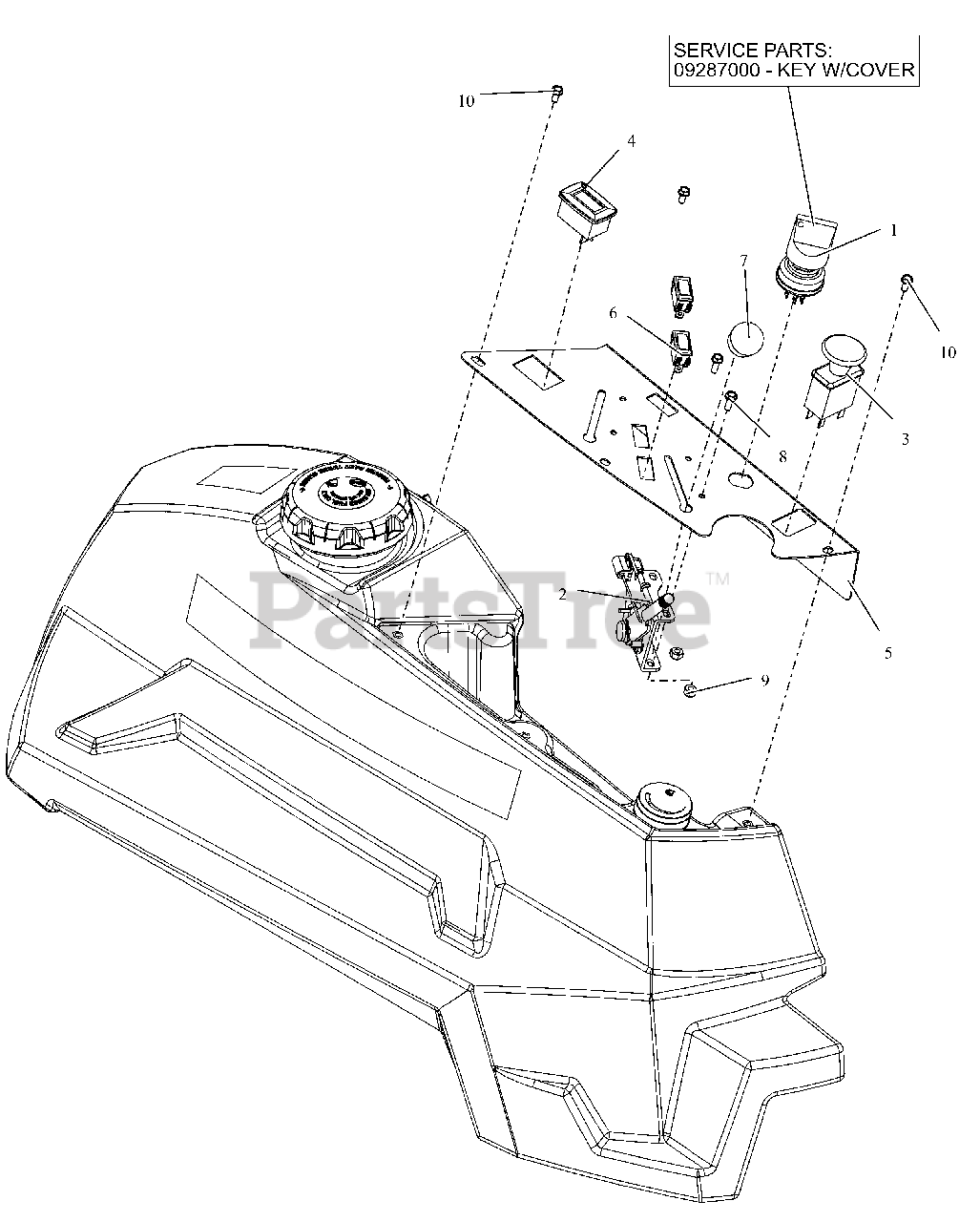

Control Panel - Yamaha EFI Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900628

CABLE, PRO-CTRL 43.00"

$51.99

$

In Stock, only 2 left!

0

3

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

4

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 04869053

PT400 CONTROL PANEL - RED

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

7

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

8

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0
