992280 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane (SN: 050000 & Above) Frame Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane

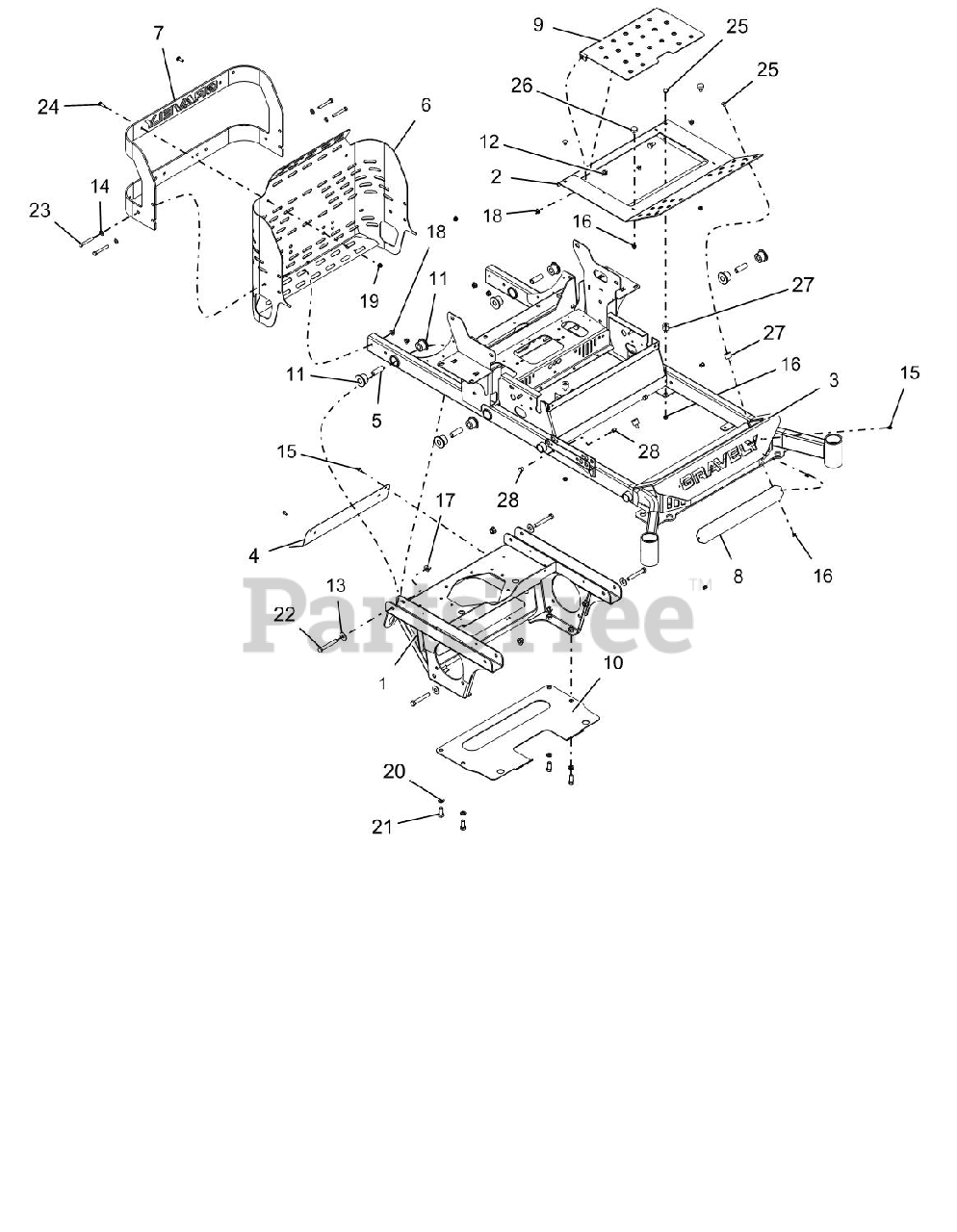

Frame Parts Diagram

  • Title

1

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$607.99

$

Usually ships in 4-12 days

0

2

Gravely 59220100

FOOTPLATE WLDMT W/SAFETY DECAL

$170.99

$

Usually ships in 4-12 days

0

3

Gravely 04549253

52-66"PT400 MAIN FRAME WMT-RED
(Superseded to 59219800)

$1293.99

$

Usually ships in 4-12 days

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$72.99

$

In Stock, only 1 left!

0

5

Gravely 03985600

BSHG-SLV .50X.75X2.23

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 04832151

WLDMT, PT400 REAR BUMPER

$310.99

$

Usually ships in 4-12 days

0

7

Gravely 59220200

REAR BUMPER W/SAFETY DECAL-GAS

$

$

Not available

8

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$

$

Not available

9

Gravely 59220000

INSPECTION PANEL W/SAFTY DECAL

$

$

Not available

10

Gravely 04524553

PLATE-TRANSMISSION SKID

$74.99

$

Usually ships in 4-12 days

0

11

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

21

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

22

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

23

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

27

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$20.99

$

Usually ships in 4-12 days

0

28

Gravely 07500324

PLUG, HOLE .50

$

$

Not available
