992280 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane (SN: 050000 & Above) Brakes Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI Propane

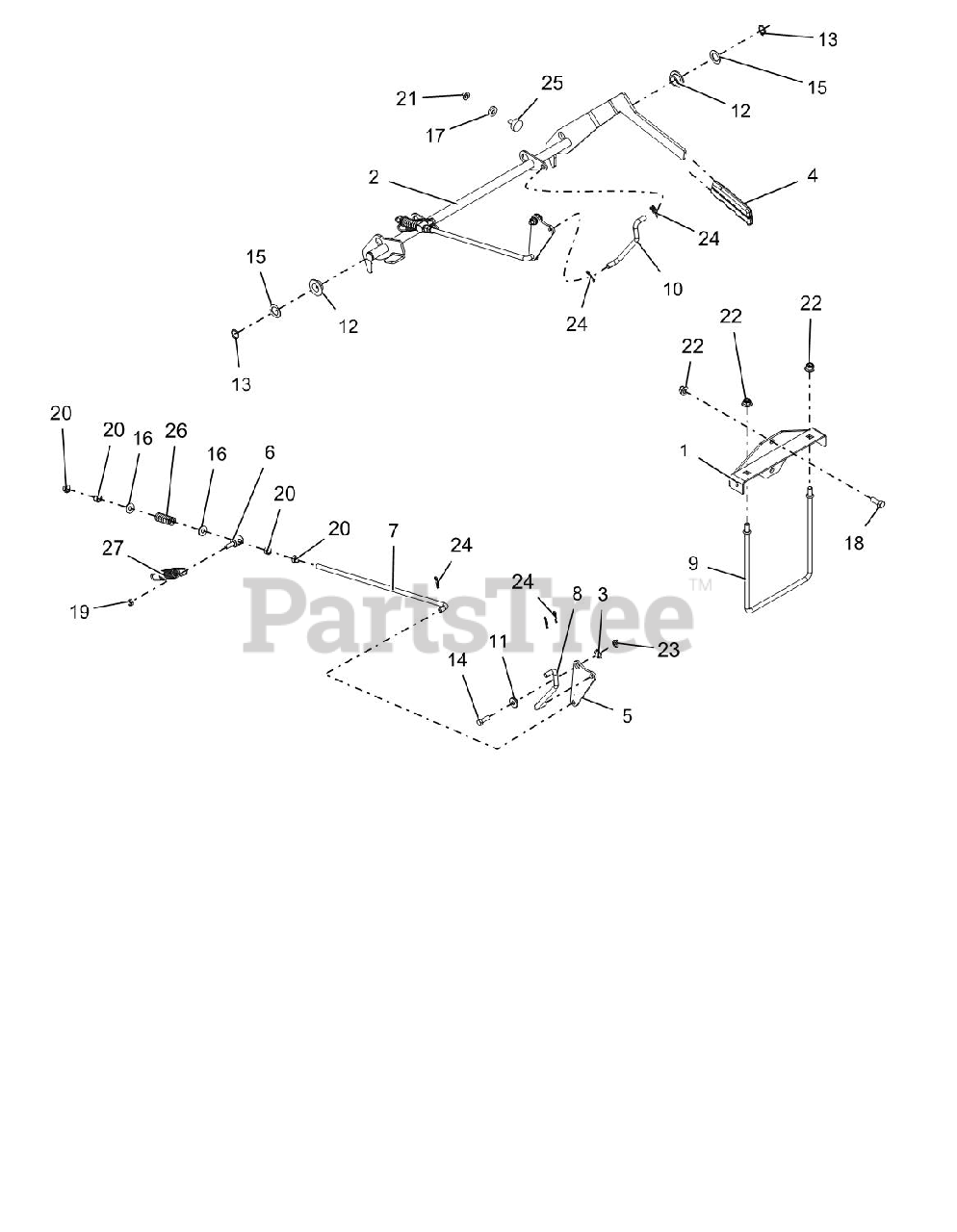

Brakes Parts Diagram

  • Title

1

Gravely 03898551

SPRING ANCHOR BRKT WMT - BLACK

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 04872700

WLDMT,PT200/400 PARK BRAKE-GAS

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

4

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 03969451

PLATE, BRAKE PIVOT

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 03969600

TRUNNION, .38-16

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 03975700

ROD, BRAKE ADJ.

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 04396700

LINKAGE, RH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 03975800

ROD, BRAKE MTG

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 04396800

LINKAGE, LH BRAKE ACTUATING

$

$

Not available

11

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

12

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

13

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

16

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

20

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

26

Gravely 08300027

SG-COMP .142 X .710 X 1.75

$9.49

$

In Stock, only 2 left!

0

27

Gravely 08300610

SPRING-TENS .105X.850X.4.880

$10.99

$

In Stock, only 3 left!

0
