992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Idlers And Sheaves - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

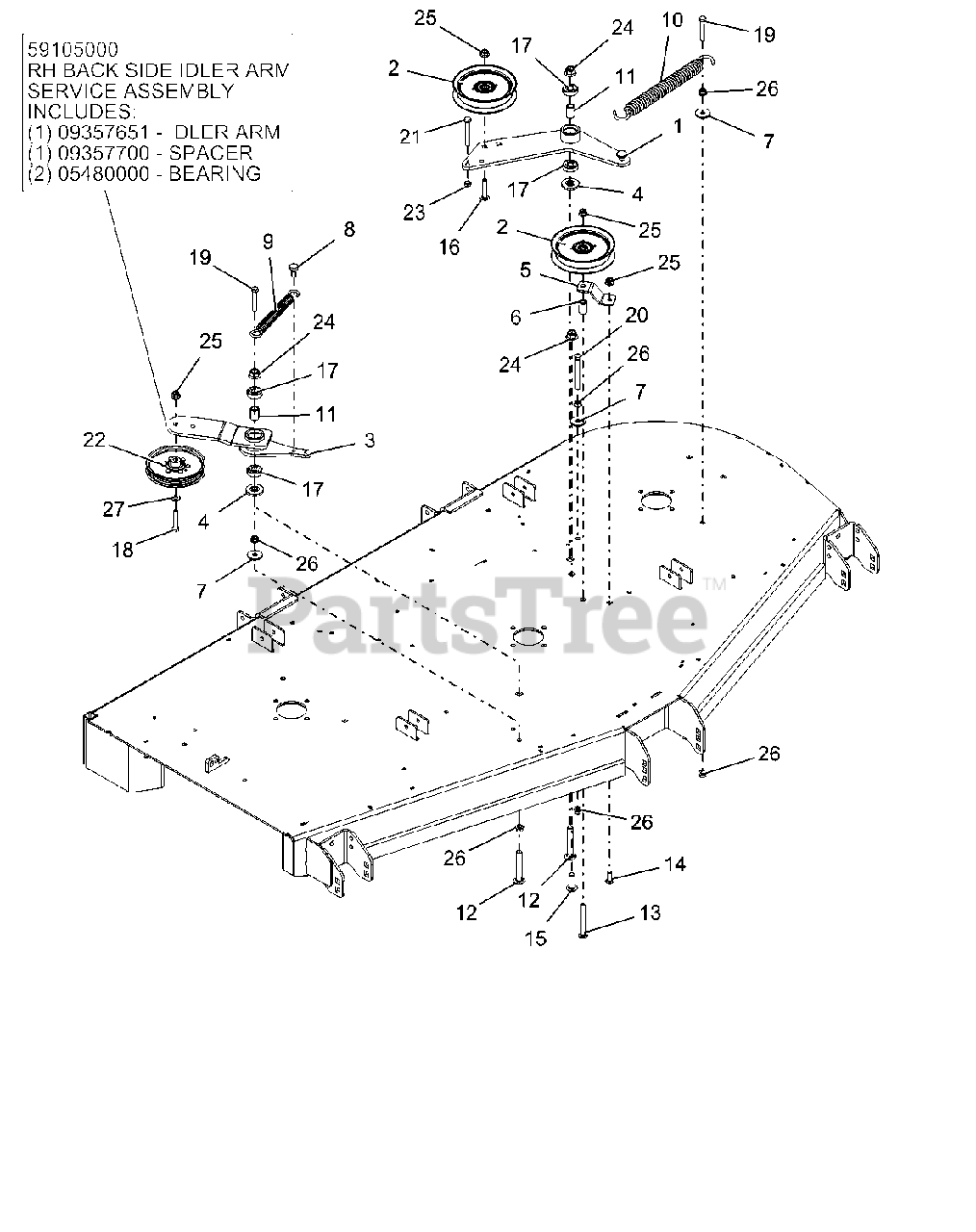

Idlers And Sheaves - 72" Parts Diagram

  • Title

1

Gravely 04985651

WLDMT, DECK PTO IDLER ARM (BLACK)
(Superseded to 04985600)

$77.99

$

In Stock, only 1 left!

0

2

Gravely 07345600

IDLER, FLAT - 5.00" X .75"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 5

0

3

Gravely 09357651

WLDMT, DECK RH IDLER ARM
(Superseded to 09357600)

$86.99

$

In Stock, only 1 left!

0

3

Gravely 59105000

RH BACK SIDE IDLER ARM SERVICE ASSEMBLY

Note: SERVICE PART

$36.99

$

In Stock, only 1 left!

0

3

Gravely 09357651

IDLER ARM
(Superseded to 09357600)

Note: SERVICE PART

$86.99

$

In Stock, only 1 left!

0

3

Gravely 09357700

SPACER

Note: SERVICE PART

$4.99

$

In Stock, only 4 left!

0

3

Gravely 05480000

BEARING

Note: SERVICE PART

$13.99

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 04981853

BRKT, PTO FIXED IDLER MTG (RED)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 05501308

BUSHING, SLV .380 X .750 X 1.190

$4.99

$

In Stock, Qty 19

0

7

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

8

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

9

Gravely 08300507

SPRG, EXTENSION - SWIVEL
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

10

Gravely 08300636

SPRG, EXTENSION
(Superseded to 08300708)

$19.99

$

In Stock, Qty 20+

0

11

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 4 left!

0

12

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06200125

BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06200006

BLT-RDHDSQSHNK .50-13X1.50 YWZC

$5.99

$

In Stock, only 1 left!

0

16

Gravely 06203200

BLT-RHDSSQNK .38-16X2.00 G5YZ
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 05408000

BRG-BALL .500X1.375X.44

$5.99

$

In Stock, Qty 20+

0

18

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 05960900

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

22

Gravely D28050

PULLEY, FLAT IDLER .500 X .375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

23

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
