992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Engine - Kohler EFI Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

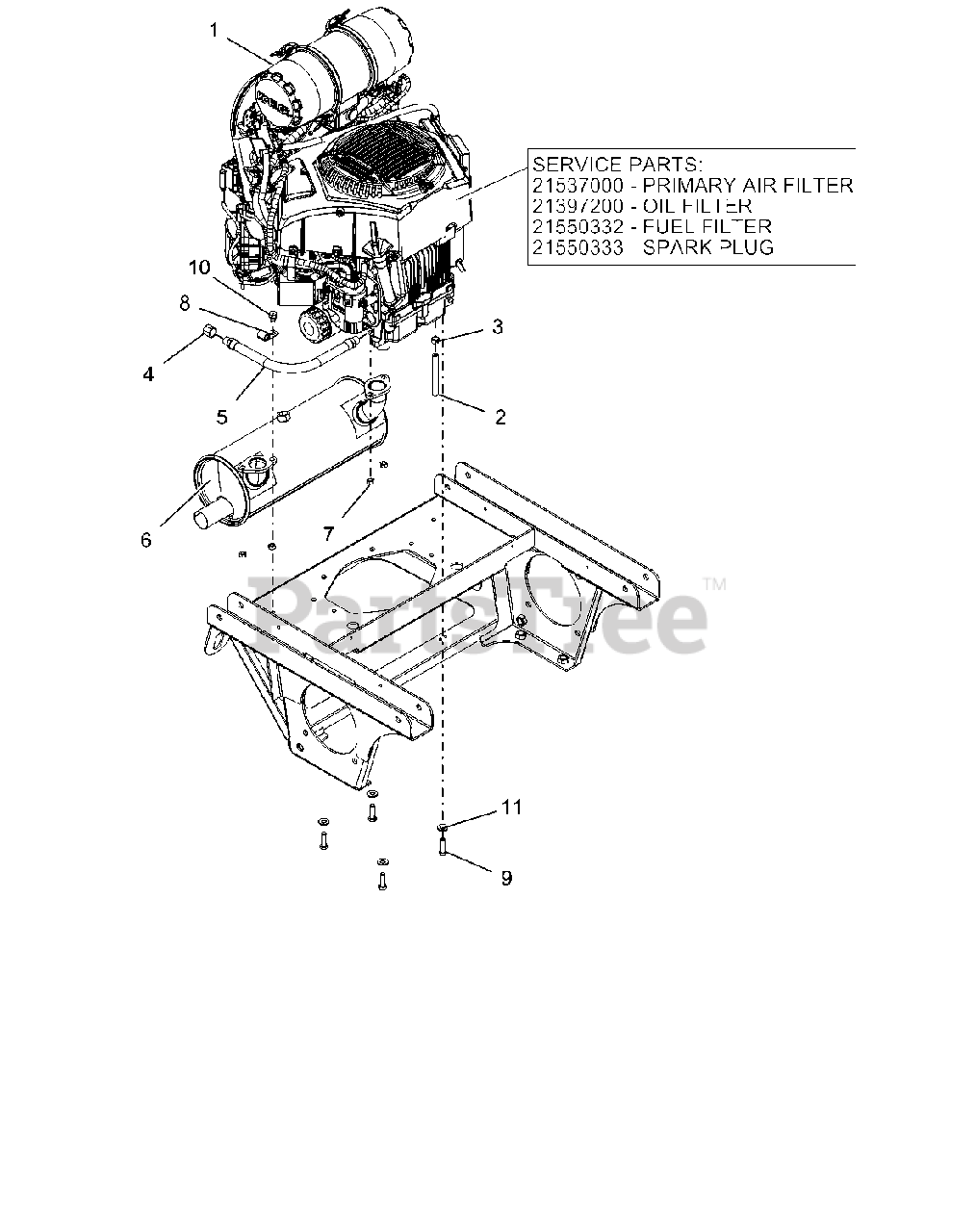

Engine - Kohler EFI Parts Diagram

  • Title

1

Gravely 08201033

ENGINE, KOHLER EFI

$

$

Not available

1

Gravely 21537000

PRIMARY AIR FILTER

Note: SERVICE PART

$28.99

$

In Stock, Qty 13

0

1

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 4 left!

0

1

Gravely 21550332

FUEL FILTER
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

1

Gravely 21550333

SPARK PLUG
(Superseded to 21563600)

Note: SERVICE PART

$13.99

$

In Stock, only 2 left!

0

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.0" LG - VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 04786000

MUFFLER, KOHLER EFI

$213.99

$

Usually ships in 4-12 days

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

10

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
