992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Deck Lift - Right Hand (Continued) Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

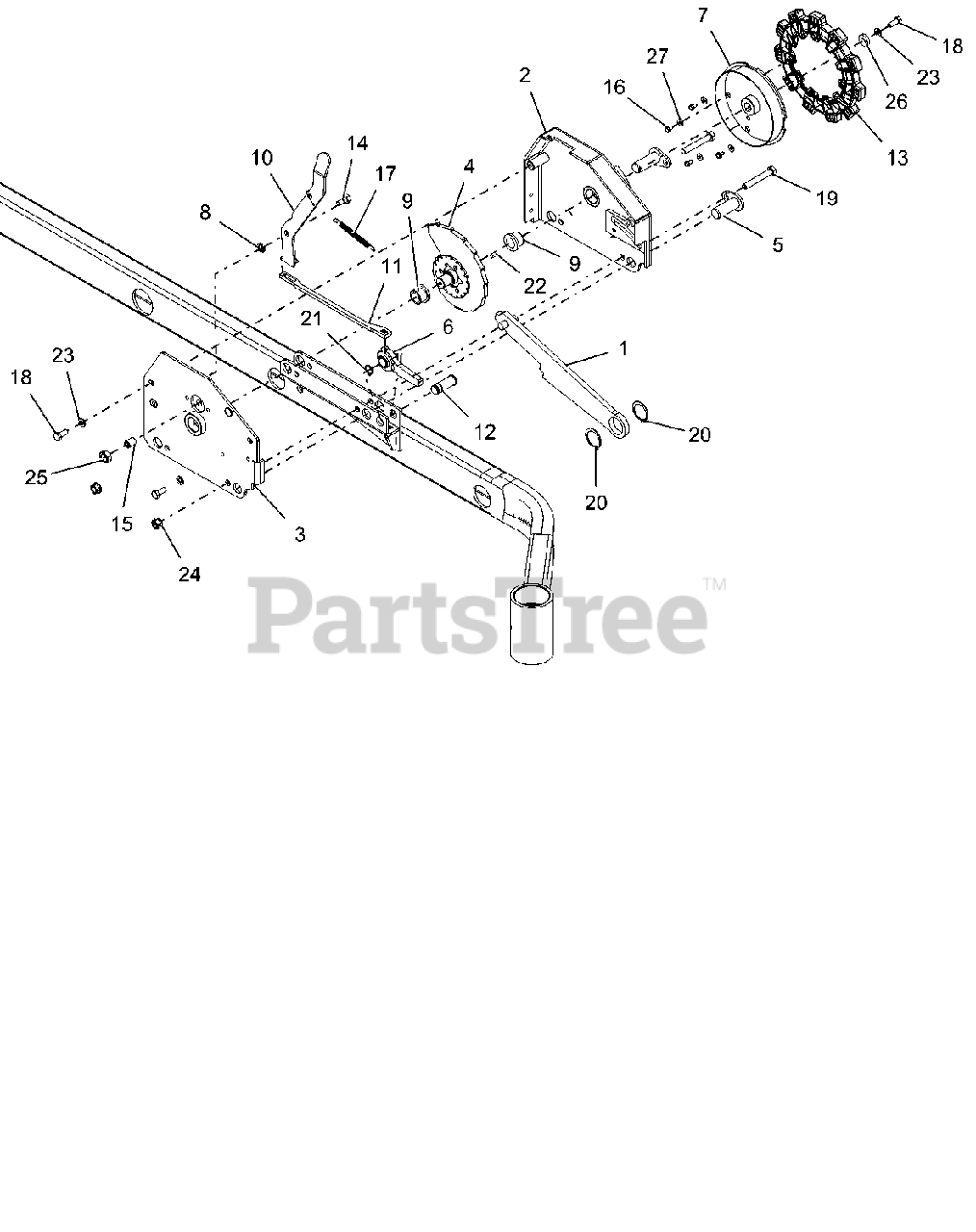

Deck Lift - Right Hand (Continued) Parts Diagram

  • Title

1

Gravely 04373651

WLDMT, HOC LINK-BLACK

$60.99

$

In Stock, Qty 5

0

2

Gravely 04374753

WLDMT, HOC INNER-RED

$158.99

$

Usually ships in 4-12 days

0

3

Gravely 04374853

WLDMT, HOC OUTER-RED

$

$

Not available

4

Gravely 04374900

WLDMT, CAM HOC

$219.99

$

In Stock, only 4 left!

0

5

Gravely 04375400

WLDMT, PIN

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 04375600

WLDMT, LOCK PAWL
(Superseded to 59226800)

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 04870953

WLDMT, HOC WHEEL (RED)

$155.99

$

Usually ships in 4-12 days

0

8

Gravely 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

9

Gravely 03985500

BUSHING, FLANGE

$5.99

$

In Stock, only 3 left!

0

10

Gravely 04390851

LEVER, TRANSPORT LOCK-BLACK

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 04390900

LINK, TRANSPORT LOCK-BLACK
(Superseded to 59226800)

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 04414200

PIN, CLEVIS .625 SNAP RING

$

$

Not available

13

Gravely 04965400

WHEEL, HOC

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 07001703

BOLT, SHLDR .38-16 x .437 HEX YZ

$

$

Not available

15

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 07400033

SCR, TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 08300533

SPRG, EXTENSION

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 05700213

RG-RTNG-EXT 1.25x.050

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 05709200

RG-RTNG-EXT .625x.050

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06600215

KEY-SQ .188X.188X.375

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

27

Gravely 06442700

WSHR-FL-STL.219X.500X.049YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0
