992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Deck Lift - Left Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

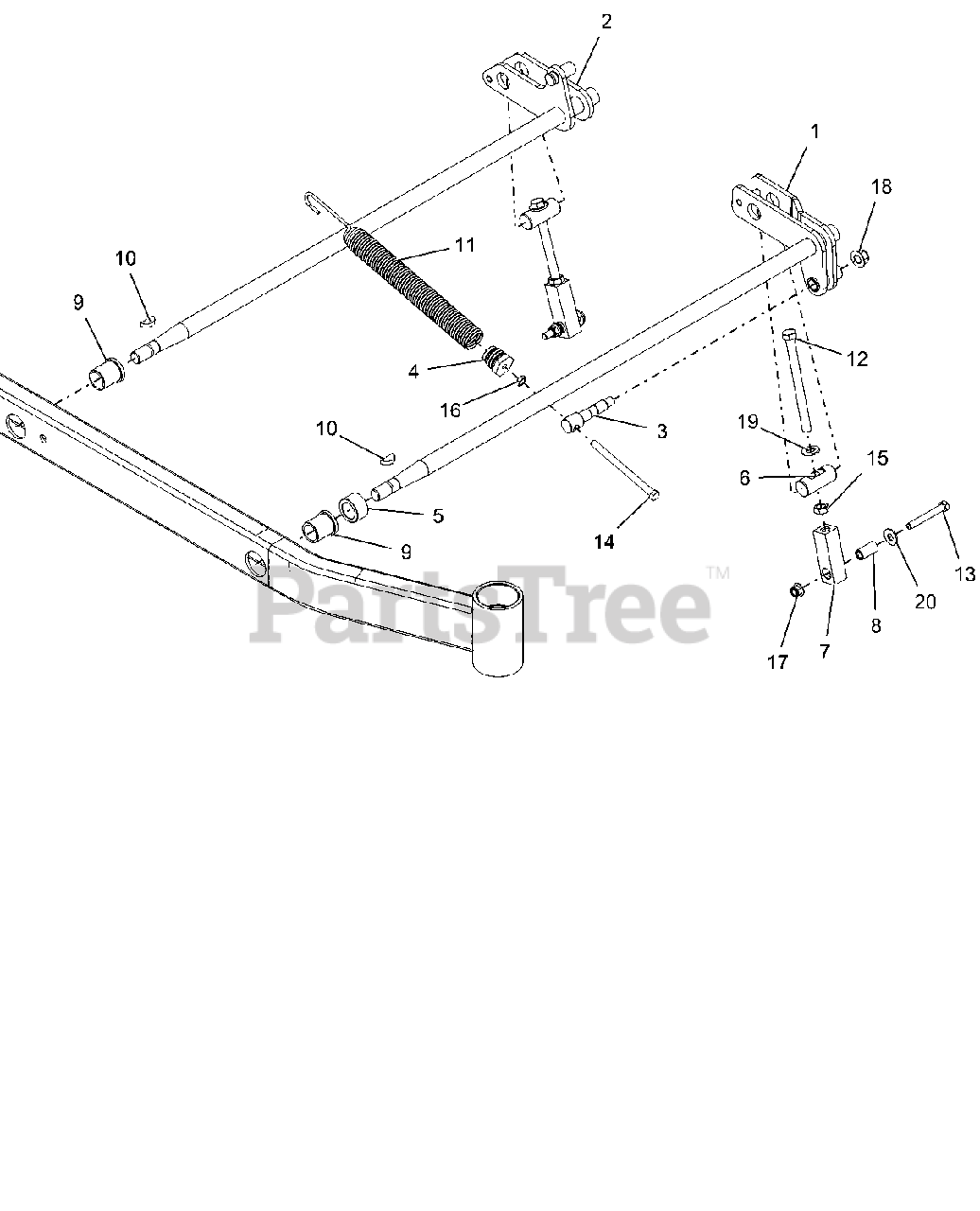

Deck Lift - Left Hand Parts Diagram

  • Title
1

Gravely 04877567

WLDMT, FRONT LH DECK LIFT ARM (BLACK)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 04877667

WLDMT, REAR LH DECK LIFT ARM (BLACK)

$206.99

$

Usually ships in 4-12 days

0

3

Gravely 04373200

TRUNION, SPRG

$124.99

$

Usually ships in 4-12 days

0

4

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

5

Gravely 04689400

SPACER, 1.500 X 1.000 X .880

$9.49

$

In Stock, only 4 left!

0

6

Gravely 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

7

Gravely 04877800

LINK, DECK LEVELING
(Superseded to 05081400)

$15.99

$

In Stock, Qty 10

0

8

Gravely 04895200

SPCR, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

10

Gravely 06608900

KEY, WDRF .25 X 1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

11

Gravely 08300624

SPRG, DECK LIFT

$13.99

$

In Stock, only 1 left!

0

12

Gravely 05901605

BLT-HEX .50-13X6.00 2.5 THD GR5 YWZC
(Superseded to 05901924)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901923)

$

$

Not available

15

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06400418

WSHR-FL-STL .557X1.040X.102 YWZC HARD
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
