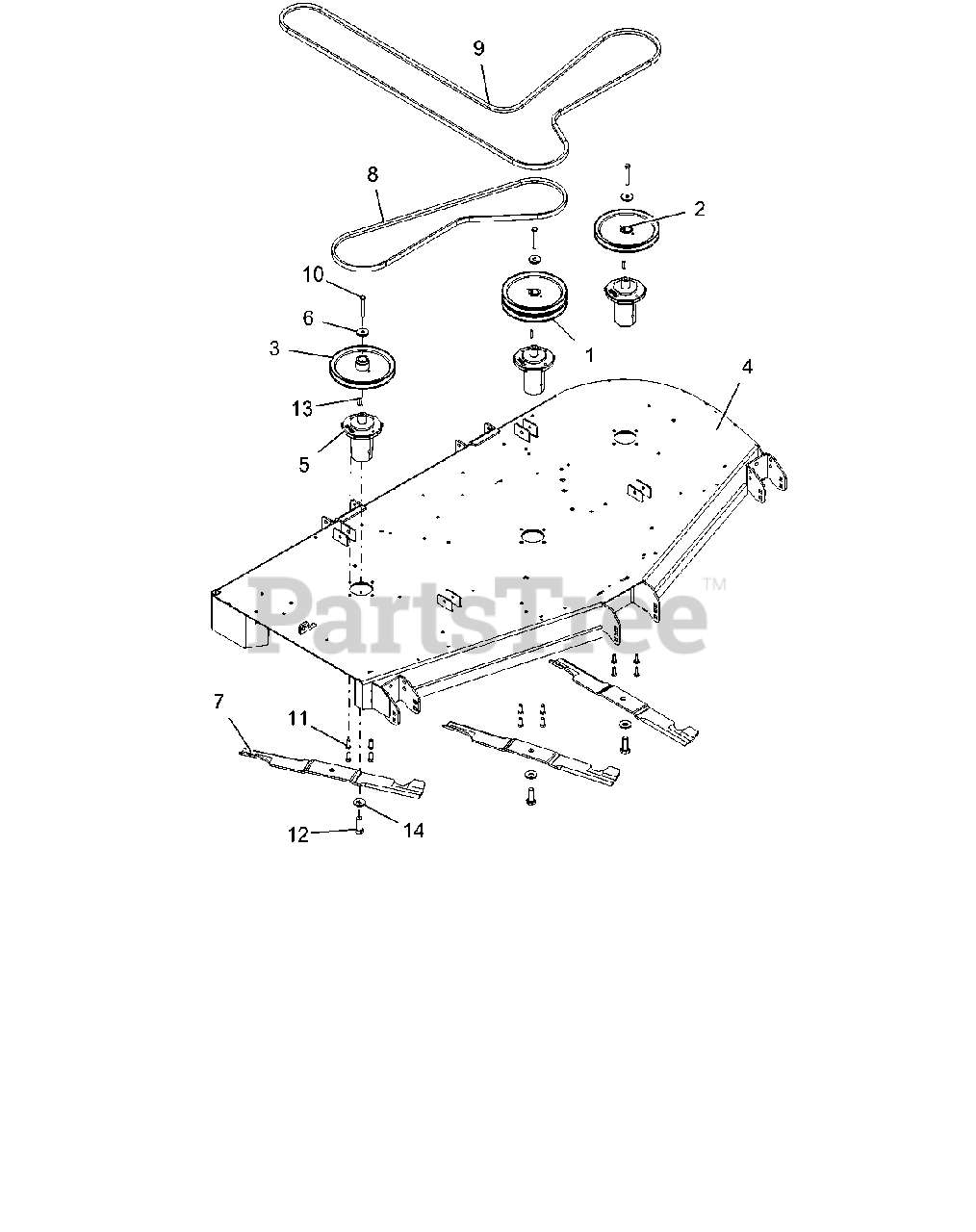

992279 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Deck, Belt, Blades And Spindles - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kohler EFI

Deck, Belt, Blades And Spindles - 72" Parts Diagram

  • Title

1

Gravely 07337667

SHEAVE-DOUBLE 1.00"ID X 8.25"OD-BLACK
(Superseded to 07337600)

$129.99

$

In Stock, Qty 6

0

2

Gravely 07337767

SHEAVE-SINGLE 1.00" X 8.25" OD-BLACK
(Superseded to 07337700)

$91.99

$

In Stock, only 2 left!

0

3

Gravely 07340867

SHEAVE, SINGLE 1.00" ID X 8.25" OD-BLACK
(Superseded to 07340800)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 59224000

WLDMT, 72" SIDE DISCHARGE DECK

$1318.99

$

Usually ships in 4-12 days

0

5

Gravely 59225700

ASM, SPINDLE - DUCTILE
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 04774600

BLADE, 24.50" X .250" MOWER

$37.99

$

In Stock, Qty 20+

0

8

Gravely 07200039

V-BELT, B-COGGED

$75.99

$

In Stock, Qty 10

0

9

Gravely 07200731

V-BELT, HB SECTION 132.3

$116.99

$

Usually ships in 4-12 days

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05978900

BLT-HEX .625-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

14

Gravely 06445700

WSHR, BLVL-.63X1.625X.14

$4.99

$

In Stock, only 3 left!

0
