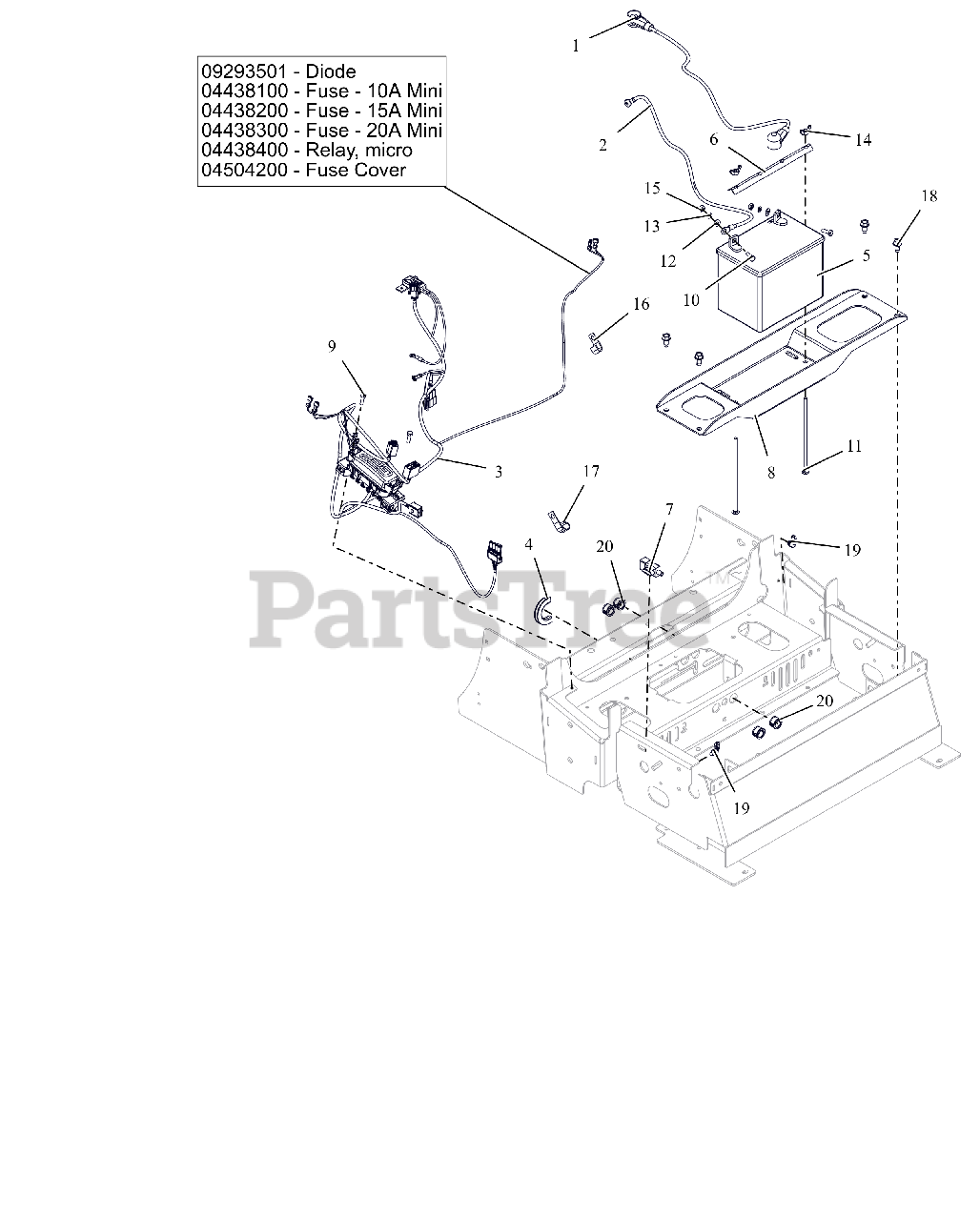

992276 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Electrical Non EFI Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

Electrical Non EFI Parts Diagram

  • Title
1

Gravely 03286900

CABLE - POS BATT W/BOOTS 6X35

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 03288200

CABLE-NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 05196200

HRNSS,PT200/400 NON-EFI WIRING

$168.99

$

Usually ships in 4-12 days

0

3

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: SERVICE PART

$11.99

$

In Stock, only 3 left!

0

3

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: SERVICE PART

$

$

Not available

3

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: SERVICE PART

$19.99

$

In Stock, only 1 left!

0

3

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: SERVICE PART

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

6

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

7

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

8

Gravely 05244953

PT200/400 BATTERY TRAY - RED

$107.99

$

Usually ships in 4-12 days

0

9

Gravely 05901609

BLT, HEX M6-1.0 X 25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06200424

BTL,RHSN .250-20 X 7.5 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 19

0

15

Gravely 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

In Stock, Qty 13

0

16

$3.49

$

In Stock, Qty 7

0

17

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0
