992275 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Idlers And Sheaves 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

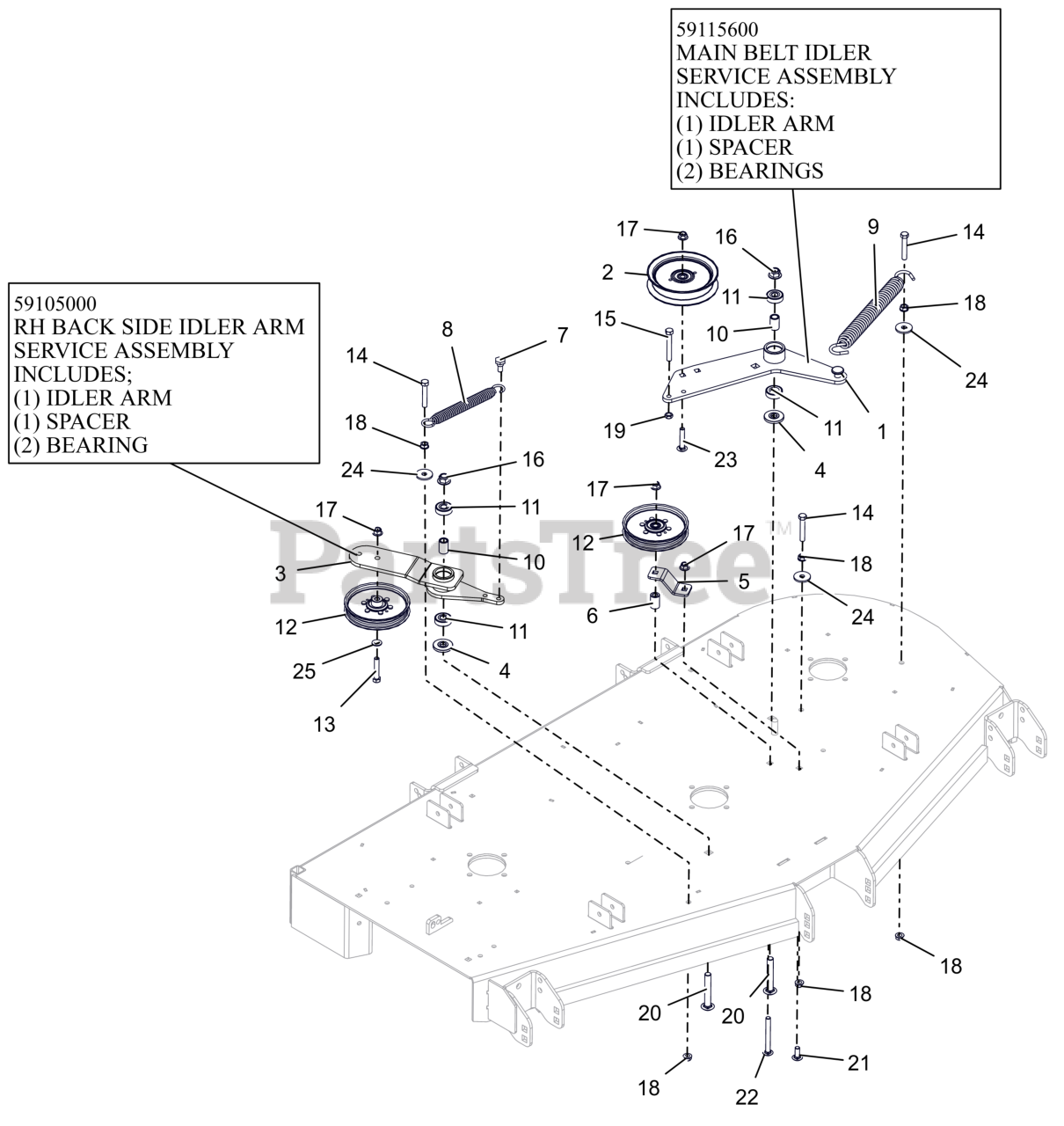

Idlers And Sheaves 60" Parts Diagram

  • Title

1

Gravely 04985600

WLDMT, DECK PTO IDLR ARM

$77.99

$

In Stock, only 1 left!

0

1

Gravely 59115600

ASSEMBLY, MAIN BELT IDLER

Note: SERVICE PART

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 5

0

3

Gravely 09357600

WLDMT, DECK RH IDLER ARM

$86.99

$

In Stock, only 1 left!

0

3

Gravely 59105000

RH BACKSIDE IDLER ARM ASSEMBLY

Note: SERVICE PART

$36.99

$

In Stock, only 1 left!

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

7

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

8

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

9

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

10

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, Qty 7

0

11

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

12

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

13

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

14

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

16

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

23

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

25

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
