992275 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Control Panel - Non-EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

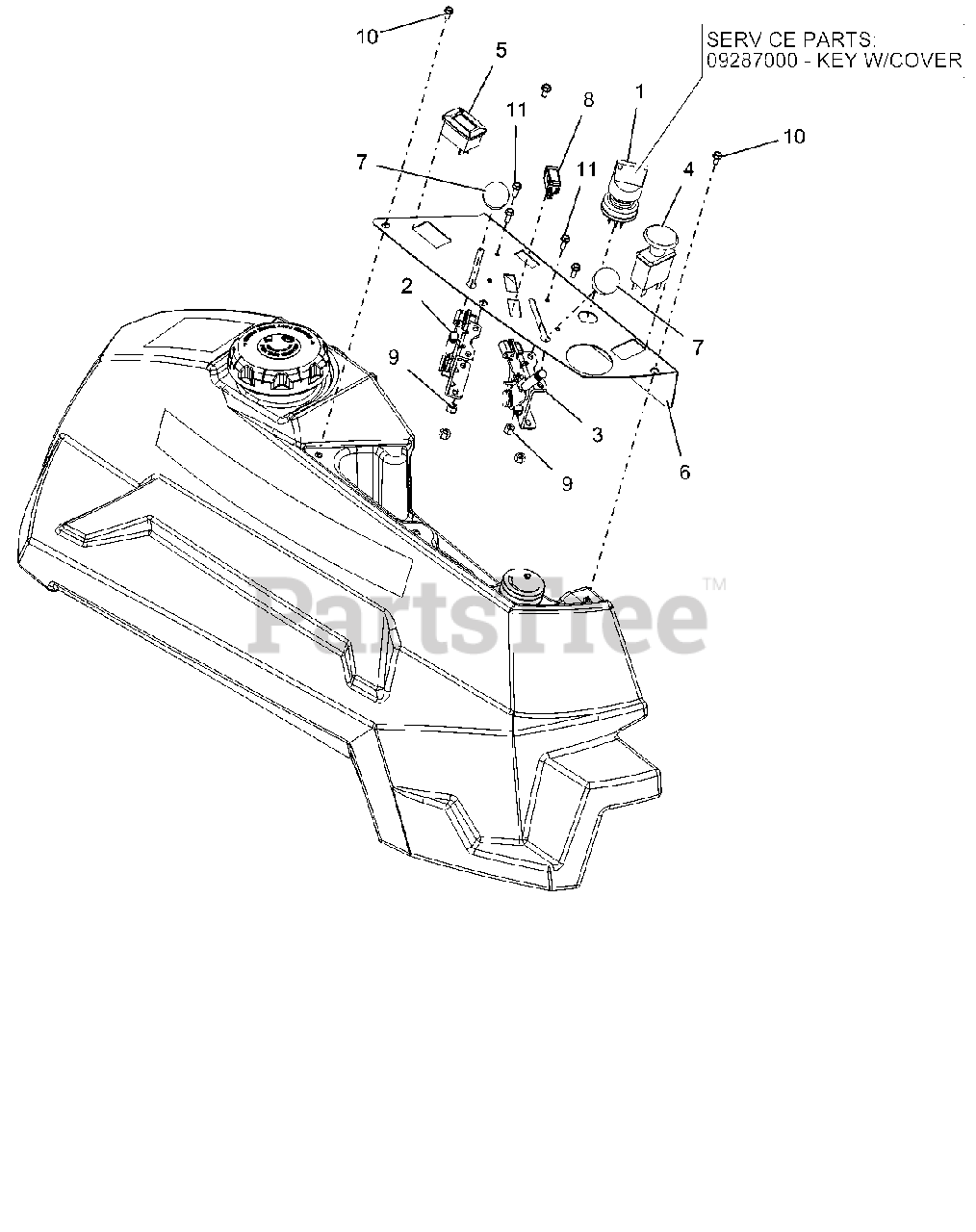

Control Panel - Non-EFI Parts Diagram

  • Title
1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY W/ COVER

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900629

CABLE, PRO - CONTROL 46.00"L

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06900630

CABLE, PRO - CONTROL 53.00"

$48.99

$

In Stock, only 1 left!

0

4

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

6

Gravely 04869053

PANEL, PT400 CONTROL (RED)

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 07500132

KNOB, CONTROL BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

8

Gravely 08841200

LIGHT, INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

11

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0
