992274 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Electrical Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

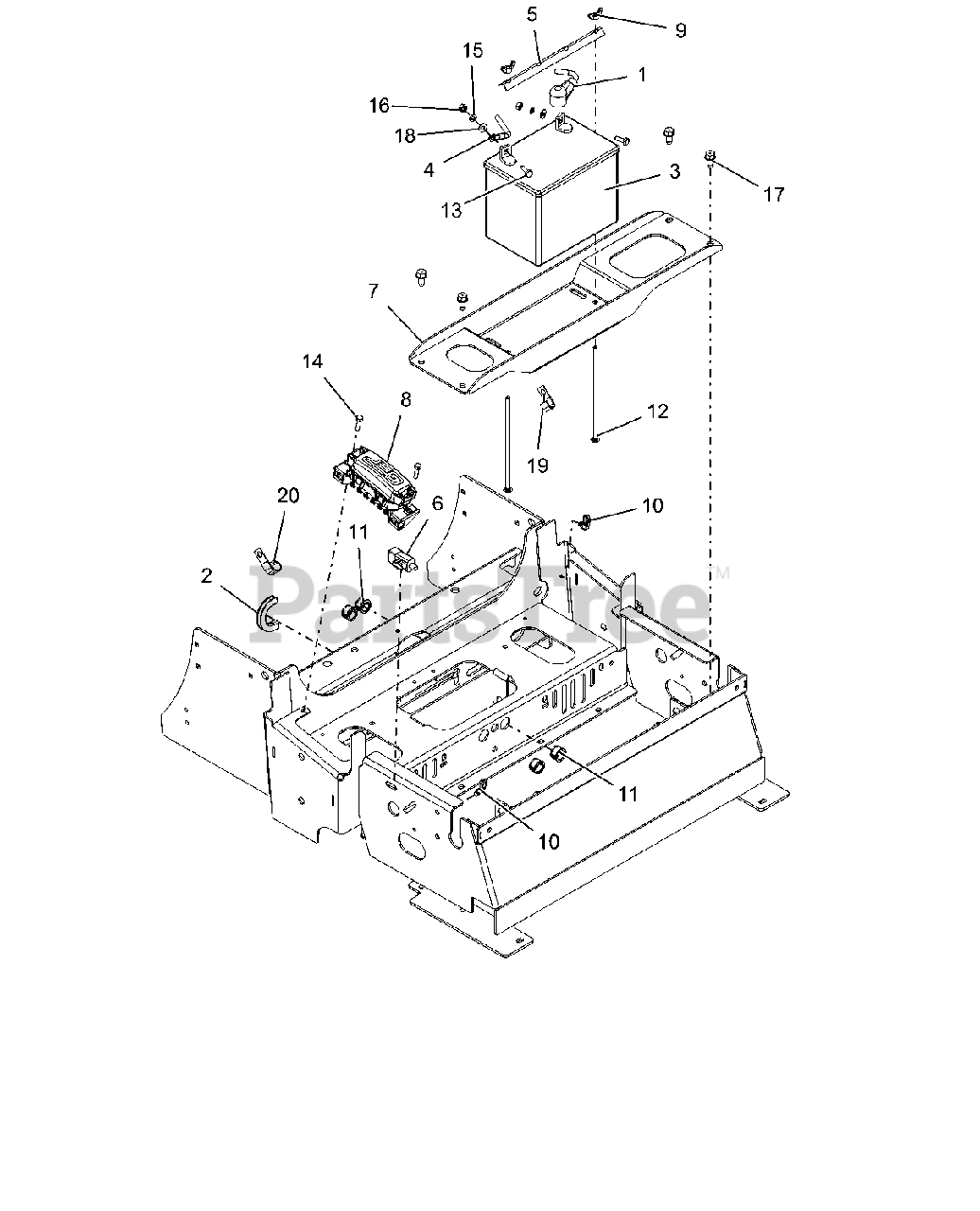

Electrical Parts Diagram

  • Title

1

Gravely 03286900

CABLE, POS BATT W/ BOOTS 6 X 35

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00918200

STRIP, COWL - 1.50 LG

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Gravely 03288200

CABLE, NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

In Stock, only 2 left!

0

6

Gravely 03834300

SWITCH, SNAP IN -N.O./N.O

$14.99

$

In Stock, only 1 left!

0

7

Gravely 04420553

TRAY, BATTERY-RED

$90.99

$

Usually ships in 4-12 days

0

8

Gravely 04884800

HARNESS, PT200/400 WIRING

$232.99

$

Usually ships in 4-12 days

0

9

Gravely 06537500

NUT-LOCKING WING 1/4-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

10

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 G2 YWZC
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05972000

@BLT-HEX M6-1.0X25 YWZC

$

$

Not available

15

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

17

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 8

0

20

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0
