992273 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 060000 - 061999) Stabilizer Arms And Baffles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

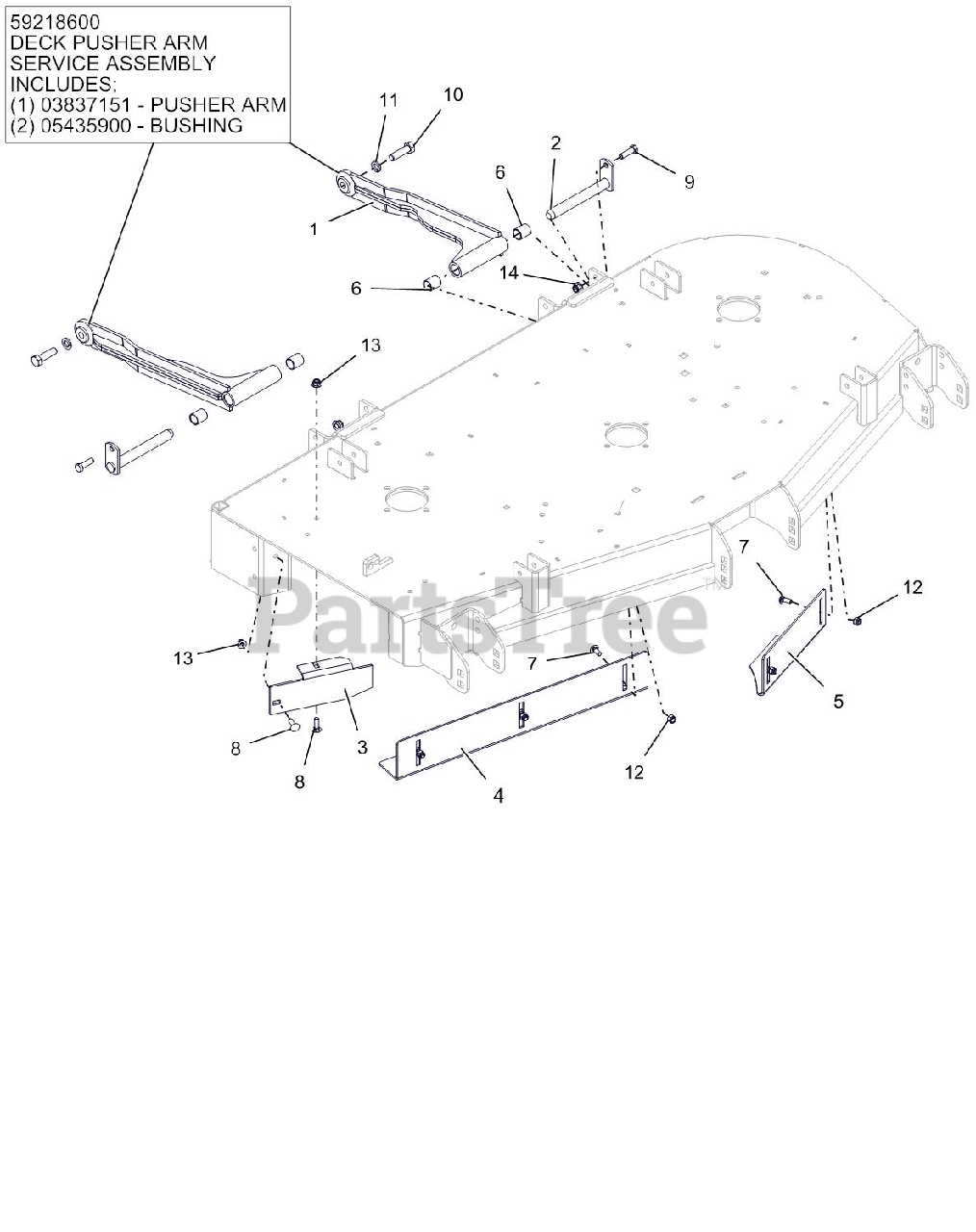

Stabilizer Arms And Baffles - 52" Parts Diagram

  • Title

1

Gravely 05435900

BRG, .750 X .875 X 1.000

Note: SERVICE PART

$5.99

$

In Stock, only 2 left!

0

1

Gravely 59218600

DECK STABILIZER ARM W/BUSHINGS

Note: SERVICE PART

$

$

Not available

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

Note: SERVICE PART

$148.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 00440853

52" DISCHARGE BAFFLE - RED

$37.99

$

Usually ships in 4-12 days

0

4

Gravely 00952851

52" RH VACUUM BAFFLE - BLK
(Superseded to 05251751)

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 00952951

52" LH VACUUM BAFFLE - BLK
(Superseded to 05251851)

$36.99

$

In Stock, only 1 left!

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

7

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
