992273 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) PTO Clutch Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

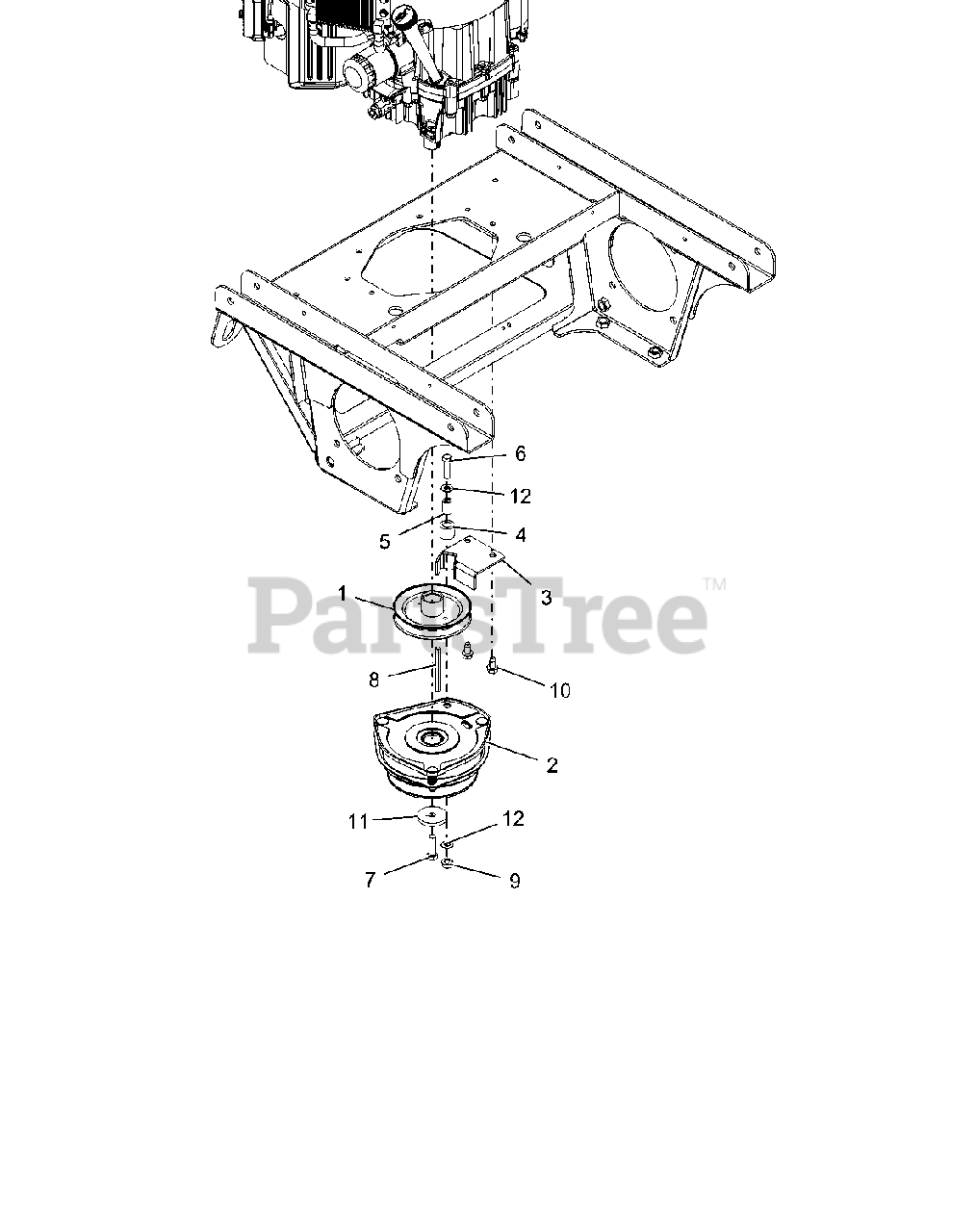

PTO Clutch Parts Diagram

  • Title
1

Gravely 07340967

SHEAVE, ENGINE 1.127 ID X 5.250 OD-BLACK
(Superseded to 07340900)

$83.99

$

In Stock, only 1 left!

0

2

Gravely 00447100

CLUTCH-OGURA

$685.99

$

In Stock, only 1 left!

0

3

Gravely 04788851

WLDMT, CLUTCH STOP (BLACK)

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

5

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

6

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 05900039

BLT-HEX .44-20X1.50 GR5 YWZC
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

8

Gravely 06600003

KEY-SQ .250X.250X3.50

$4.99

$

In Stock, Qty 7

0

9

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
