992273 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Casters And Tires - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

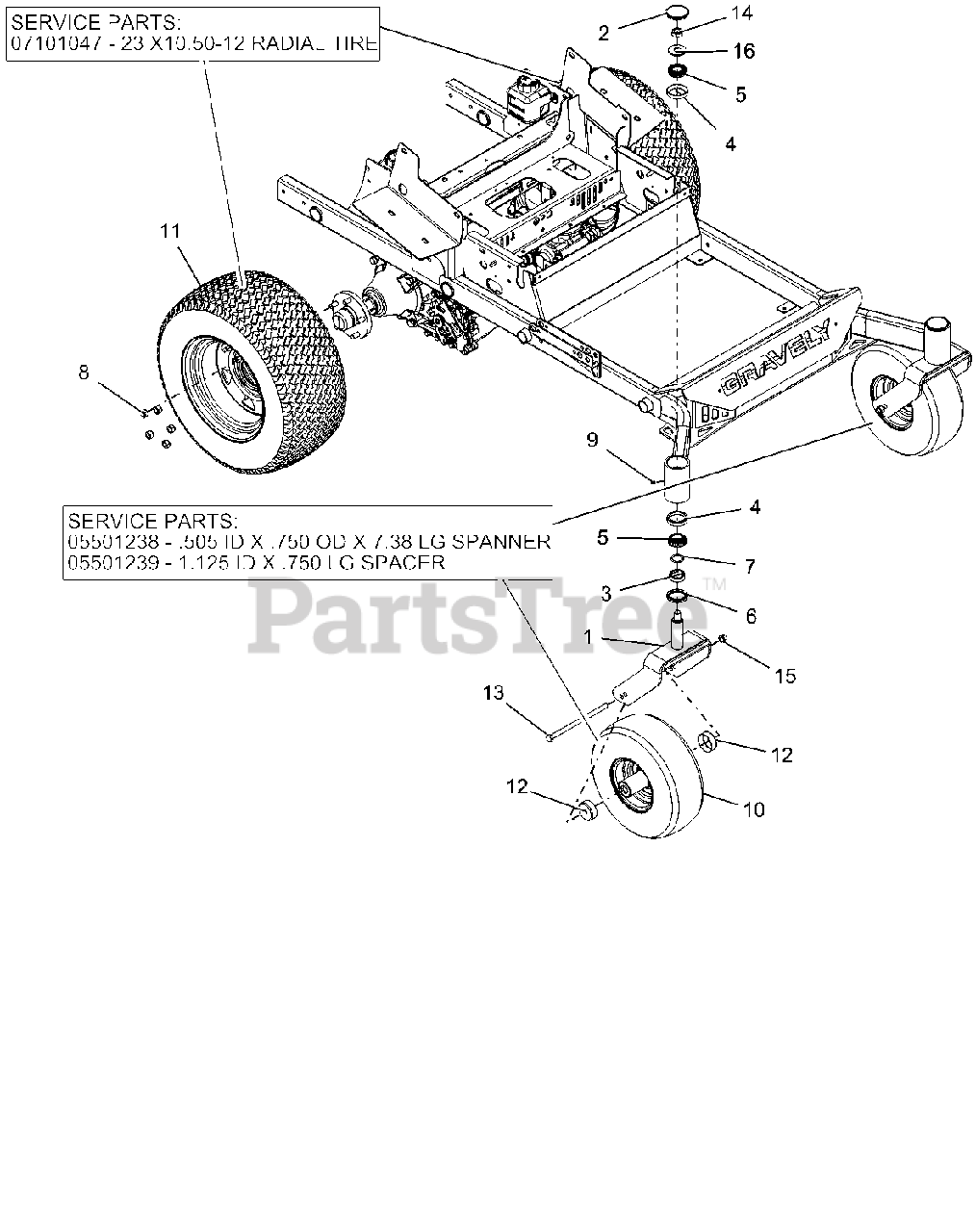

Casters And Tires - 52" Parts Diagram

  • Title

1

Gravely 03924453

WMT, CASTER FORK - RED

$180.99

$

In Stock, only 1 left!

0

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 6

0

4

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

5

Gravely 05404700

BRG, CONE 1.250 X .660

$20.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

7

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

8

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07001727

FITTING, .250-28 FLUSH MOUNT GREASE

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05501238

SPANNER, .505 ID X .750 OD X 7.38 LG

Note: SERVICE PART

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 05501239

SPACER, 1.125 ID X .750 LG

Note: SERVICE PART

$13.99

$

In Stock, only 2 left!

0

10

Gravely 07101106

ASM, WHL/TIRE 15 X 6.00-6 SEMI
(Superseded to 07101307)

$182.99

$

In Stock, only 1 left!

0

11

Gravely 07101047

RADIAL TIRE, 23 X 10.50-12

Note: SERVICE PART

$336.99

$

Usually ships in 4-12 days

0

11

Gravely 07101118

ASSM TIRE\WHEEL, 23 X 10.50 - 12 RADIAL

$319.99

$

Usually ships in 4-12 days

0

12

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

13

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-LK-TOP-JAM .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0
