992272 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 090000 - 091999) Engine - Kohler EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

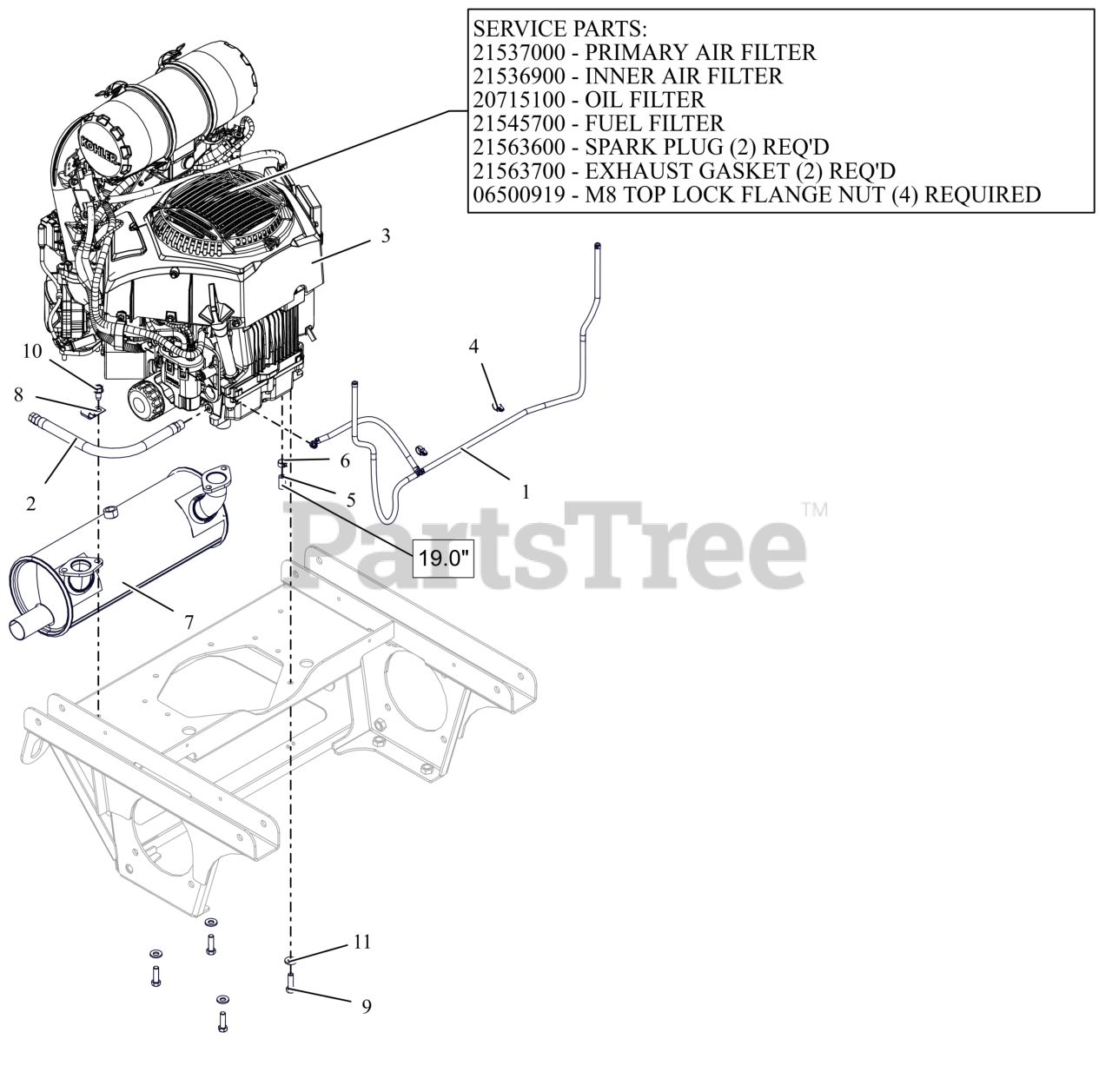

Engine - Kohler EFI Parts Diagram

  • Title

1

Gravely 04981500

ASM, KOHLER EFI VAPOR LINE

$48.99

$

Usually ships in 4-12 days

0

2

Gravely 05155100

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

3

Gravely 08201033

ENGINE, KOHLER EFI

$

$

Not available

3

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: SERVICE PART COMPONENT

$28.99

$

In Stock, Qty 20+

0

3

Gravely 21536900

ELEMENT, INNER SAFETY

Note: SERVICE PART COMPONENT

$28.99

$

In Stock, only 1 left!

0

3

Gravely 20715100

OIL FILTER KOHLER

Note: SERVICE PART COMPONENT

$18.99

$

In Stock, only 1 left!

0

3

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART COMPONENT

$12.99

$

In Stock, Qty 20+

0

3

Gravely 21563600

PLUG, SPARK

Note: SERVICE PART COMPONENT

$13.99

$

In Stock, only 2 left!

0

3

Gravely 21563700

GASKET, EXHAUST

Note: SERVICE PART COMPONENT

$

$

Not available

3

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: SERVICE PART COMPONENT

$2.49

$

In Stock, Qty 18

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04786000

MUFFLER, KOHLER EFI

$213.99

$

Usually ships in 4-12 days

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

10

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
