992272 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 082000 - 089999) Seat Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

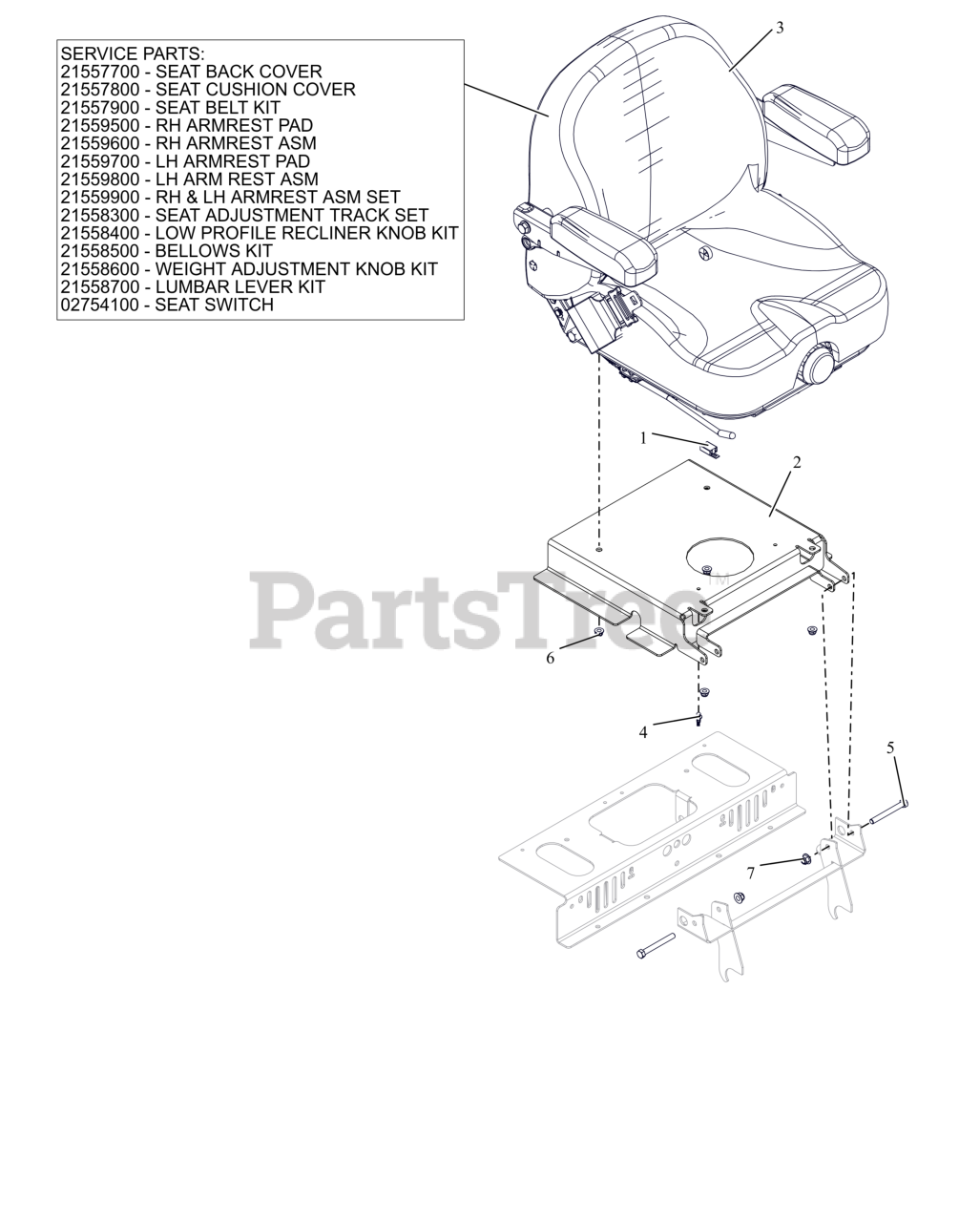

Seat Parts Diagram

  • Title
1

Gravely 04782800

HARNESS, PT200 SEAT ADAPTER

$39.99

$

Usually ships in 4-12 days

0

2

Gravely 05254653

WLDMT, SEAT PLATE (RED)

$219.99

$

In Stock, only 1 left!

0

3

Gravely 04876000

SEAT, FULL SUSPENSION
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

3

Gravely 21557700

COVER, SEAT BACK

Note: SERVICE PART

$180.99

$

In Stock, only 1 left!

0

3

Gravely 21557800

COVER,SEAT CUSHION

Note: SERVICE PART

$96.99

$

In Stock, only 1 left!

0

3

Gravely 21557900

KIT, SEAT BELT

Note: SERVICE PART

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 21559500

PAD, RH ARMREST

Note: SERVICE PART

$77.99

$

In Stock, only 1 left!

0

3

Gravely 21559600

ASM, RH ARMREST

Note: SERVICE PART

$114.99

$

Usually ships in 4-12 days

0

3

Gravely 21559700

PAD, LH ARMREST

Note: SERVICE PART

$59.99

$

In Stock, only 1 left!

0

3

Gravely 21559800

ASM LH ARMREST

Note: SERVICE PART

$

$

Not available

3

Gravely 21559900

SET, RH & LH ARMREST ASM

Note: SERVICE PART

$207.99

$

Usually ships in 4-12 days

0

3

Gravely 21558300

SET, SEAT ADJUSTMENT TRACK

Note: SERVICE PART

$129.99

$

In Stock, only 3 left!

0

3

Gravely 21558400

KIT, LOW PROFILE RECLINER KNOB

Note: SERVICE PART

$43.99

$

Usually ships in 4-12 days

0

3

Gravely 21558500

KIT, BELLOWS

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: SERVICE PART

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 21558700

KIT, LUMBAR LEVER

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

4

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
