992271 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 060000 - 061999) Transaxles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

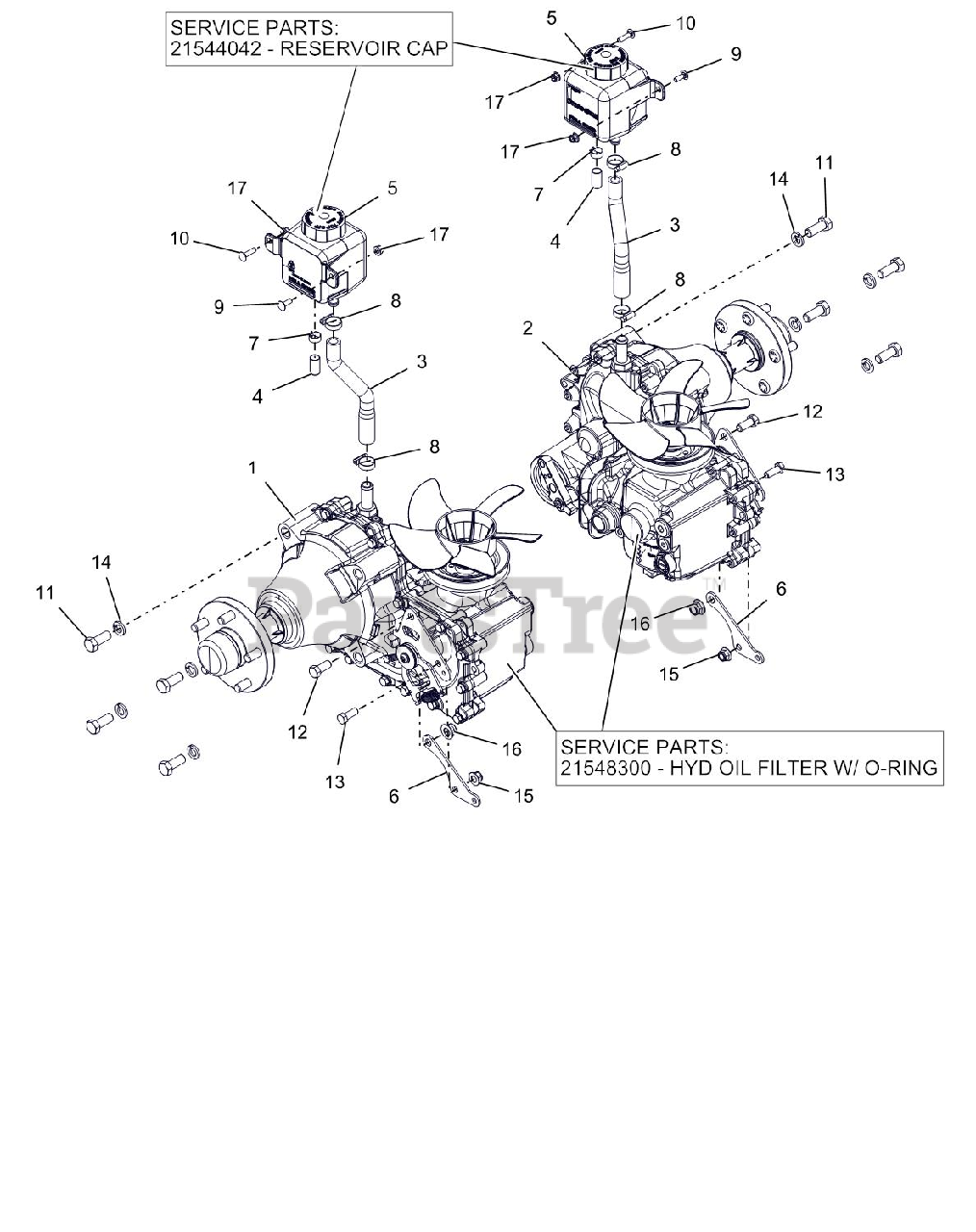

Transaxles Parts Diagram

  • Title

1

Gravely 03935200

TRANS, RH HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

2

Gravely 03935300

TRANS, LH HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

3

Gravely 04879700

HOSE,PT200/400 TRANS OVERFLOW

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 04894200

CAP, .50 BARBED FITTING

$

$

Not available

5

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 04894600

TANK, HYDRO OVERFLOW 700 ML

$

$

Not available

6

Gravely 04979951

DRV CNTRL LINKAGE MTG BRKT-BLK

$

$

Not available

7

Gravely 06900635

CLAMP, .62 SPRING

$

$

Not available

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

12

Gravely 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

15

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500009

@NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

18

Gravely 21548300

FILTER,HYD OIL W/ORING ZT-54OO

Note: SERVICE PART

$36.99

$

Usually ships in 4-12 days

0
