992271 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 050000 - 050999) Frame - 52" And 60" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

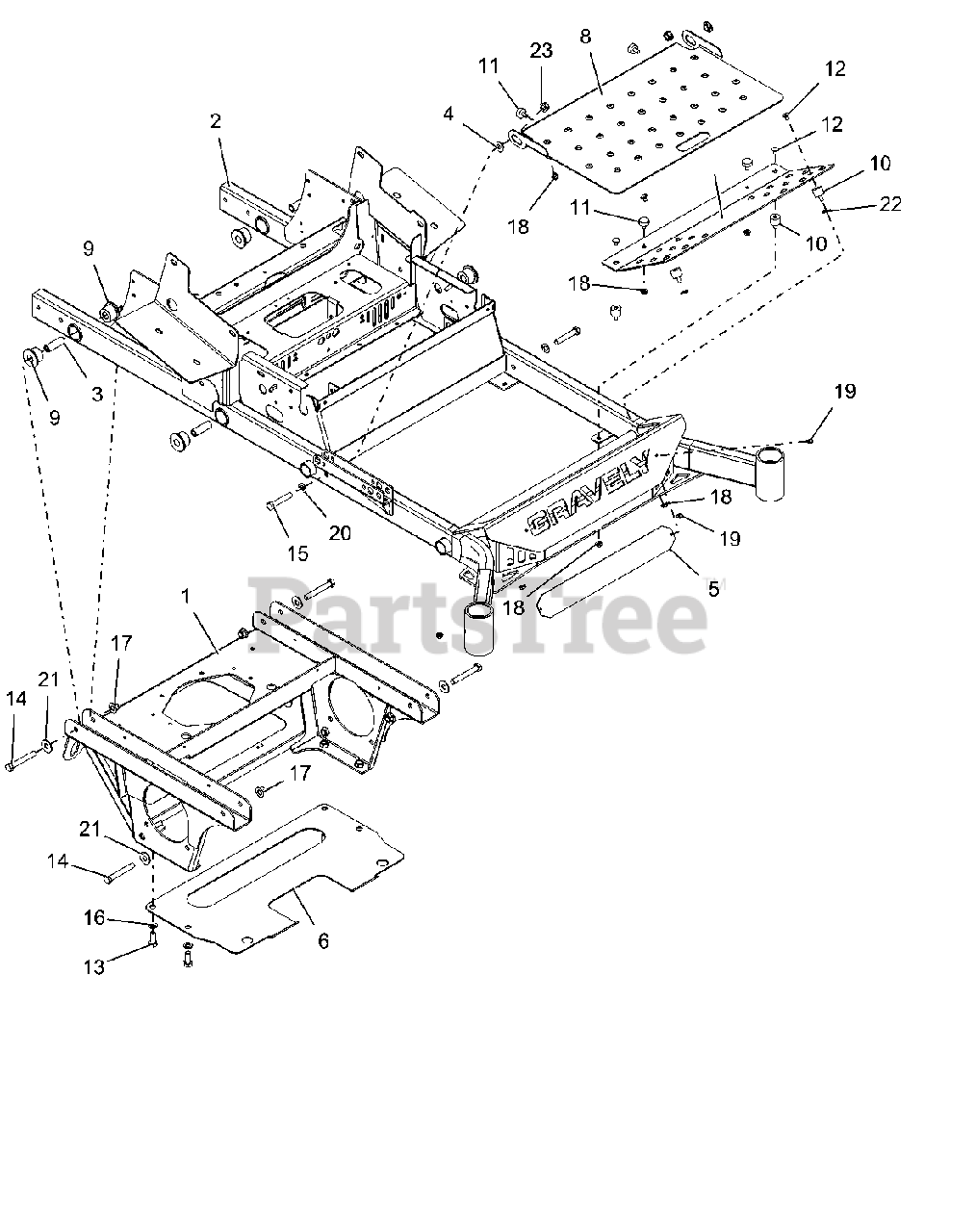

Frame - 52" And 60" Parts Diagram

  • Title

1

Gravely 03855553

WLDT, 200 PT AXLE/ENGINE FRAME

$607.99

$

Usually ships in 4-12 days

0

2

Gravely 59223600

WLDMT, 52-66" PT400 MAIN FRAME-RED

$1680.99

$

Usually ships in 4-12 days

0

3

Gravely 03985600

SPCR, .50 X .75 X 2.23 YZ

$9.49

$

Usually ships in 4-12 days

0

4

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04386551

PLATE, BUMPER LOGO BACKING-BLACK

$

$

Not available

6

Gravely 04524553

PLATE-TRANSMISSION SKID-RED

$74.99

$

Usually ships in 4-12 days

0

7

Gravely 59222000

WLDMT, FOOTREST

$

$

Not available

8

Gravely 59222100

WLDMT, FOOTREST

$219.99

$

Usually ships in 4-12 days

0

9

Gravely 05500924

BSHG, FLANGE .750 X 1.510 X 1.130 X 2.000

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 07500214

BUMPER, STUD MOUNTED W/FEMALE INSERT

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5 YWZC
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

15

Gravely 05965500

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

17

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06425300

WSHR-FL-STL .531X1.000X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

22

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0
