992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Transaxles Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

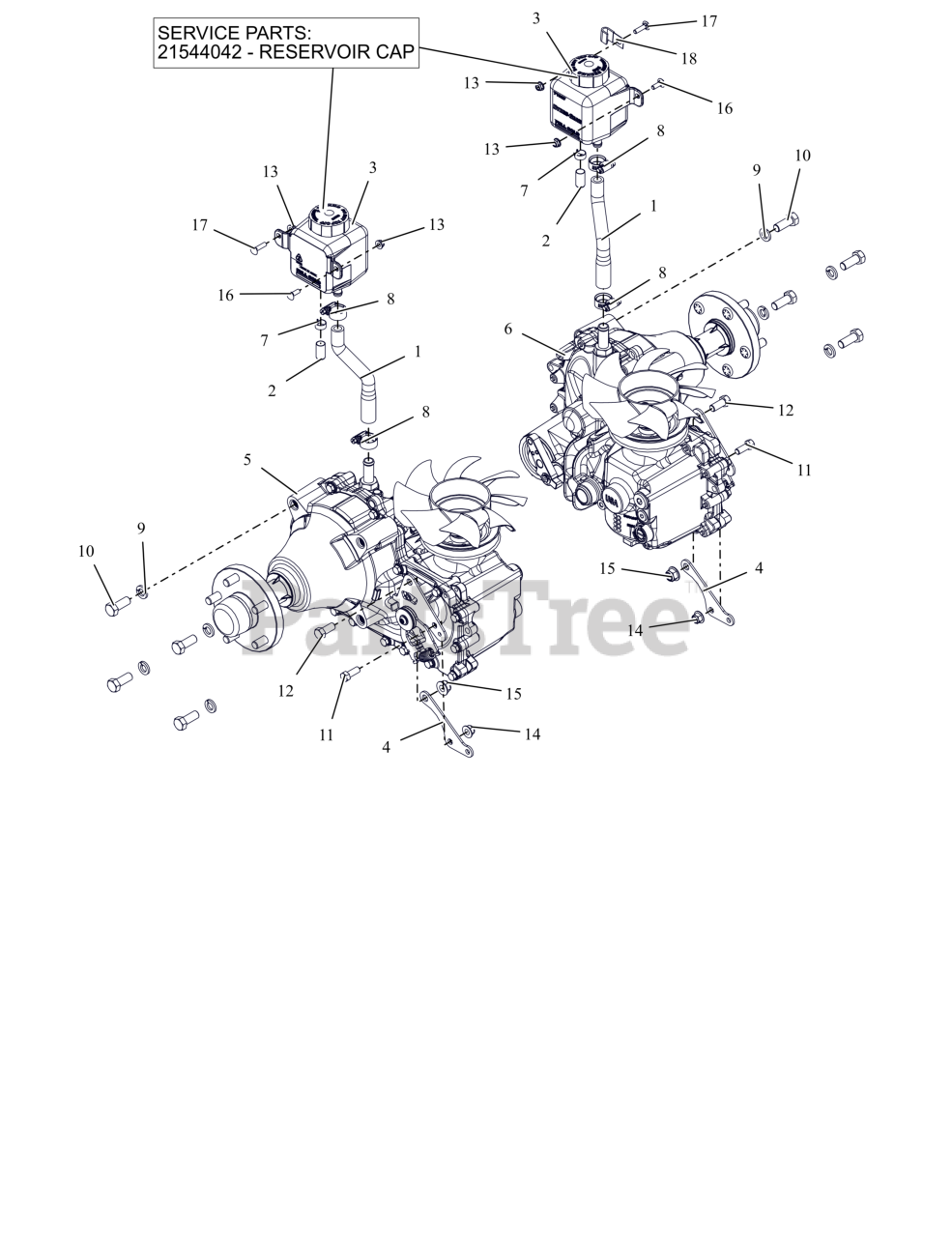

Transaxles Parts Diagram

  • Title

1

Gravely 04879700

HOSE,PT200/400 TRANS OVERFLOW

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 04894200

CAP, .50 BARBED FITTING

$

$

Not available

3

Gravely 04894600

TANK, HYDRO OVERFLOW 700 ML

$

$

Not available

3

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE COMPONENT PART

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 04979951

DRV CNTRL LINKAGE MTG BRKT-BLK

$

$

Not available

5

Gravely 05188100

TRANSAXLE, RH HG ZT-5400

$2741.99

$

Usually ships in 4-12 days

0

6

Gravely 05188200

TRANSAXLE, LH HG ZT-5400

$2742.99

$

Usually ships in 4-12 days

0

7

Gravely 06900635

CLAMP, .62 SPRING

$

$

Not available

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 06300115

WSHR,LK-REG .500X.125 ZCC

$1.49

$

In Stock, Qty 16

0

10

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, only 1 left!

0

11

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05901913

BLT, HEX 0.4375-14X1 GR5 ZCC

$2.99

$

In Stock, only 1 left!

0

13

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

14

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500811

NUT,NYL-FLG .44-14 GF ZCC

$5.99

$

In Stock, only 1 left!

0

16

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

17

Gravely 06200402

BLT, RHSN .25-20X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0
