992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 082000 - 089999) Engine - Kawasaki FX921 Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

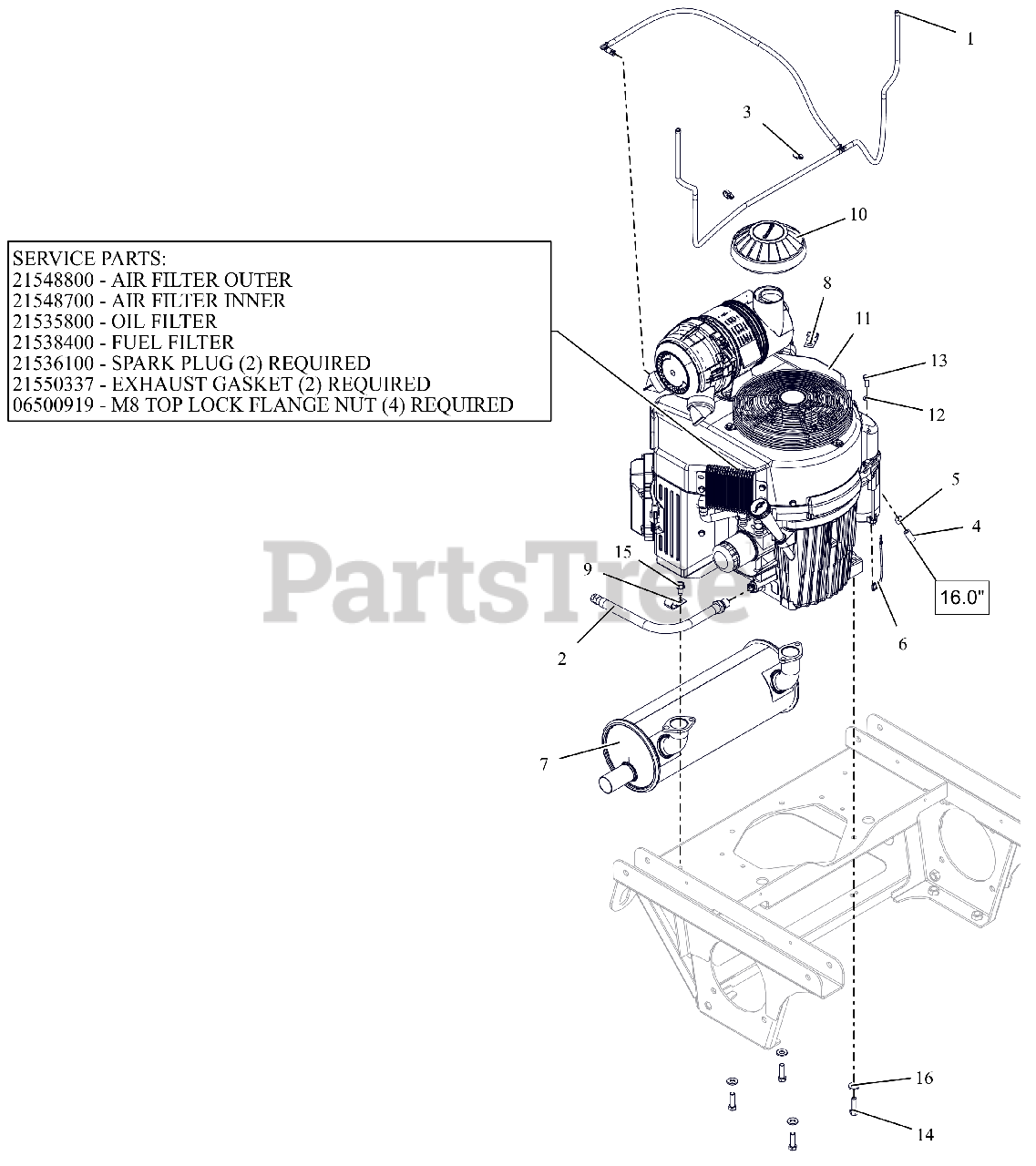

Engine - Kawasaki FX921 Parts Diagram

  • Title
1

Gravely 04981600

ASM, VAPOR LINE

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 16.00" Length

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

Usually ships in 4-12 days

0

7

Gravely 04263000

MUFFLER - 34HP KAWASAKI VERT.

$170.99

$

Usually ships in 4-12 days

0

8

$3.49

$

In Stock, Qty 8

0

9

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

$51.99

$

In Stock, only 1 left!

0

11

Gravely 08200624

ENGINE-KAWASAKI FX921

$

$

Not available

11

Gravely 21548800

FILTER, OUTER

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

11

Gravely 21548700

FILTER, INNER - KAW

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

11

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

11

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

11

Gravely 21536100

PLUG, SPARK

Note: SERVICE PART

$3.49

$

In Stock, only 2 left!

0

11

Gravely 21550337

GASKET, EXHAUST (11061-7061)

Note: SERVICE PART

$7.99

$

Usually ships in 4-12 days

0

11

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: SERVICE PART

$2.49

$

In Stock, Qty 18

0

12

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

14

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

15

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
