992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 080000 - 081999) Stabilizer Arms And Baffles - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

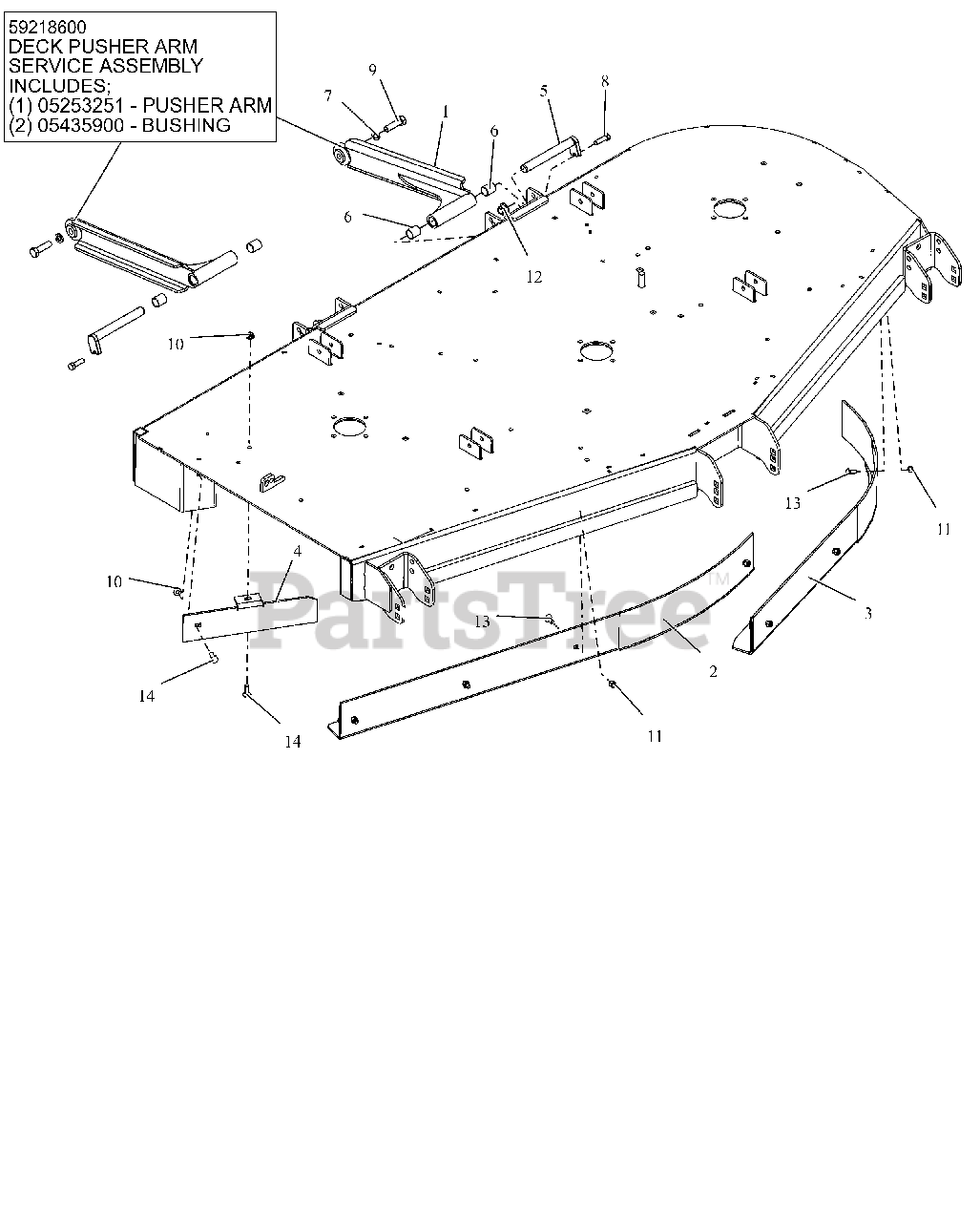

Stabilizer Arms And Baffles - 72" Parts Diagram

  • Title

1

Gravely 05253251

WLDMT, DECK STABILIZER ARM (BLACK)

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 59218600

DECK STABILIZER ARM W/BUSHINGS

Note: SERVICE PART

$

$

Not available

2

Gravely 05255453

WLDMT, 72" RH VACUUM BAFFLE (RED)
(Superseded to 09374453)

$155.99

$

Usually ships in 4-12 days

0

3

Gravely 05255553

WLDMT, 72" LH VACUUM BAFFLE (RED)

$

$

Not available

4

Gravely 04962253

72" DISCHARGE BAFFLE - RED

$

$

Not available

5

Gravely 05157900

PIN, MOWER MTG

$

$

Not available

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

7

Gravely 06300115

WSHR,LK-REG .500X.125 ZCC

$1.49

$

In Stock, Qty 16

0

8

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901922

BLT, HEX 0.5-13X1.75 GR5 ZCC EP80

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0
