992270 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 050000 - 050999) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

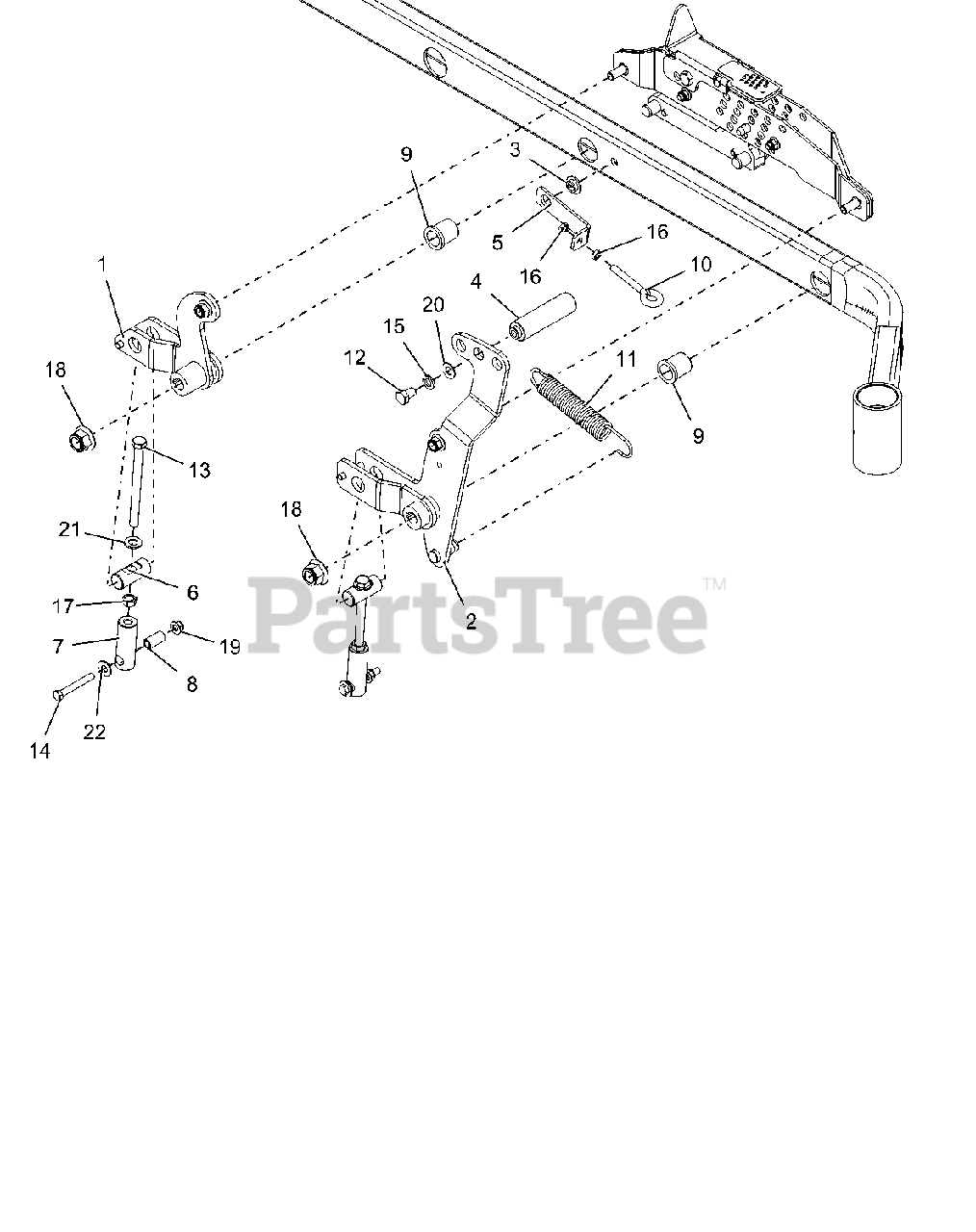

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04896767

WLDMT, REAR RH DECK LIFT ARM (BLACK)

$

$

Not available

2

Gravely 04896967

WLDMT, FRONT RH DECK LIFT ARM (BLACK)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

4

Gravely 04373300

PEDAL, LIFT

$

$

Not available

5

Gravely 04777353

BRKT, SPRING ANCHOR (RED)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

7

Gravely 04877800

LINK, DECK LEVELING
(Superseded to 05081400)

$15.99

$

In Stock, Qty 10

0

8

Gravely 04895200

SPCR, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

10

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

11

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0

12

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

13

Gravely 05901605

BLT-HEX .50-13X6.00 2.5 THD GR5 YWZC
(Superseded to 05901924)

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

16

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06400418

WSHR-FL-STL .557X1.040X.102 YWZC HARD
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
