992268 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 082000 - 089999) Casters And Tires - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

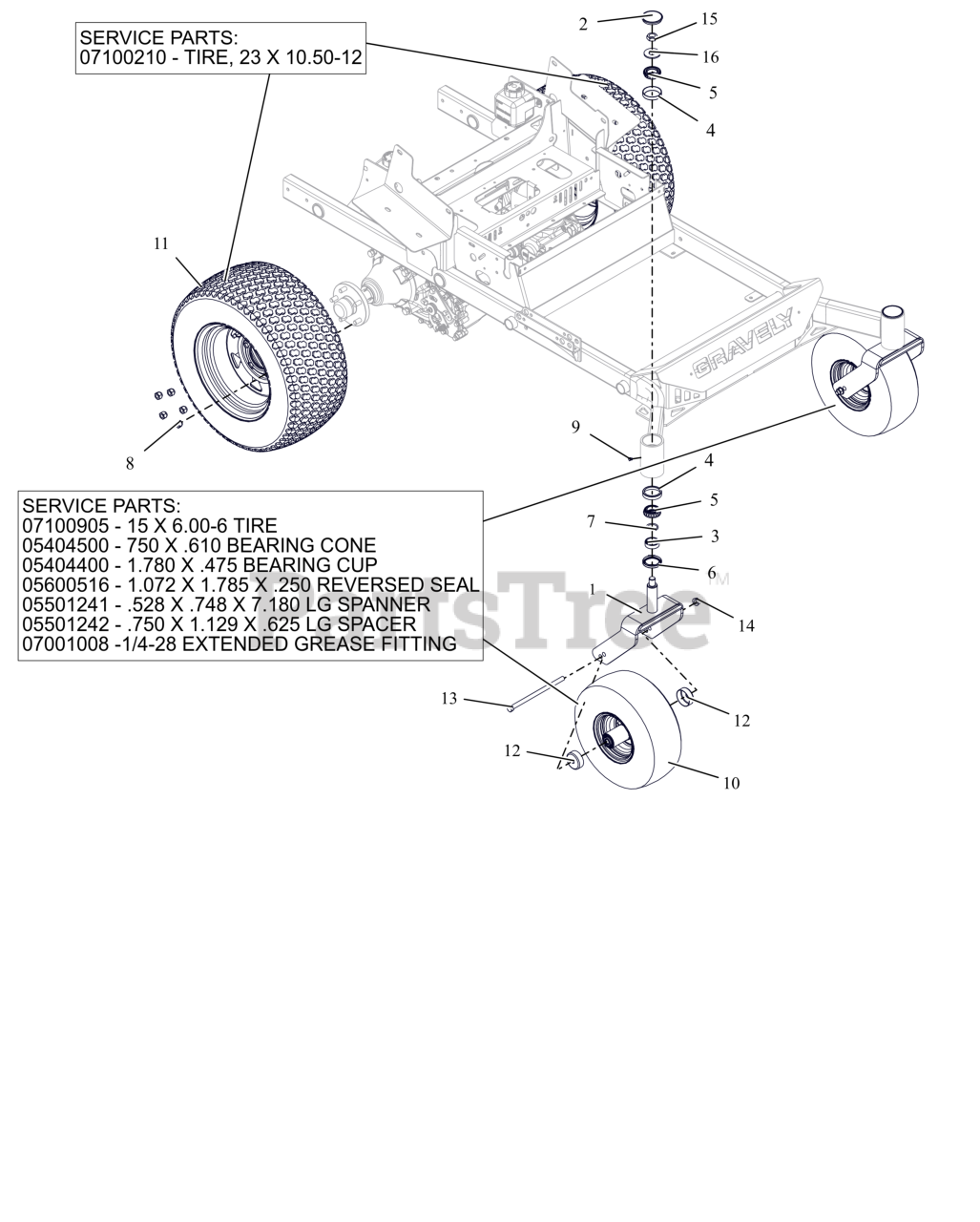

Casters And Tires - 52" Parts Diagram

  • Title
1

Gravely 03924453

CASTER FORK WMT - RED

$180.99

$

In Stock, only 2 left!

0

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 6

0

4

Gravely 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$20.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

7

$2.49

$

In Stock, Qty 8

0

8

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, only 1 left!

0

10

Gravely 07101109

ASM, WHL/TIRE 15X6.00-6 SMOOTH

$125.99

$

In Stock, only 2 left!

0

10

Gravely 07100905

TIRE, 15X6-6 SMOOTH

Note: SERVICE PART

$45.99

$

In Stock, only 1 left!

0

10

Gravely 05404500

BRG-CONE .750X.61

Note: SERVICE PART

$23.99

$

In Stock, Qty 9

0

10

Gravely 05404400

BRG-CUP 1.781X.475

Note: SERVICE PART

$10.99

$

In Stock, Qty 20+

0

10

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: SERVICE PART

$21.99

$

In Stock, Qty 5

0

10

Gravely 05501241

SPANNER, .528X.748X7.18 LG

Note: SERVICE PART

$30.99

$

In Stock, only 1 left!

0

10

Gravely 05501242

SPACER, .750X1.129X.625 LG

Note: SERVICE PART

$5.99

$

In Stock, only 3 left!

0

10

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: SERVICE PART

$12.99

$

In Stock, only 2 left!

0

11

Gravely 07101116

ASM, WHL/TIRE 23X10.50-12 K500

$290.99

$

In Stock, only 1 left!

0

11

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

Note: SERVICE PART

$

$

Not available

12

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

13

Gravely 05901930

BLT, HEX .50-13X9.00 G5 ZCC

$10.99

$

In Stock, Qty 20+

0

14

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$3.99

$

In Stock, only 3 left!

0
