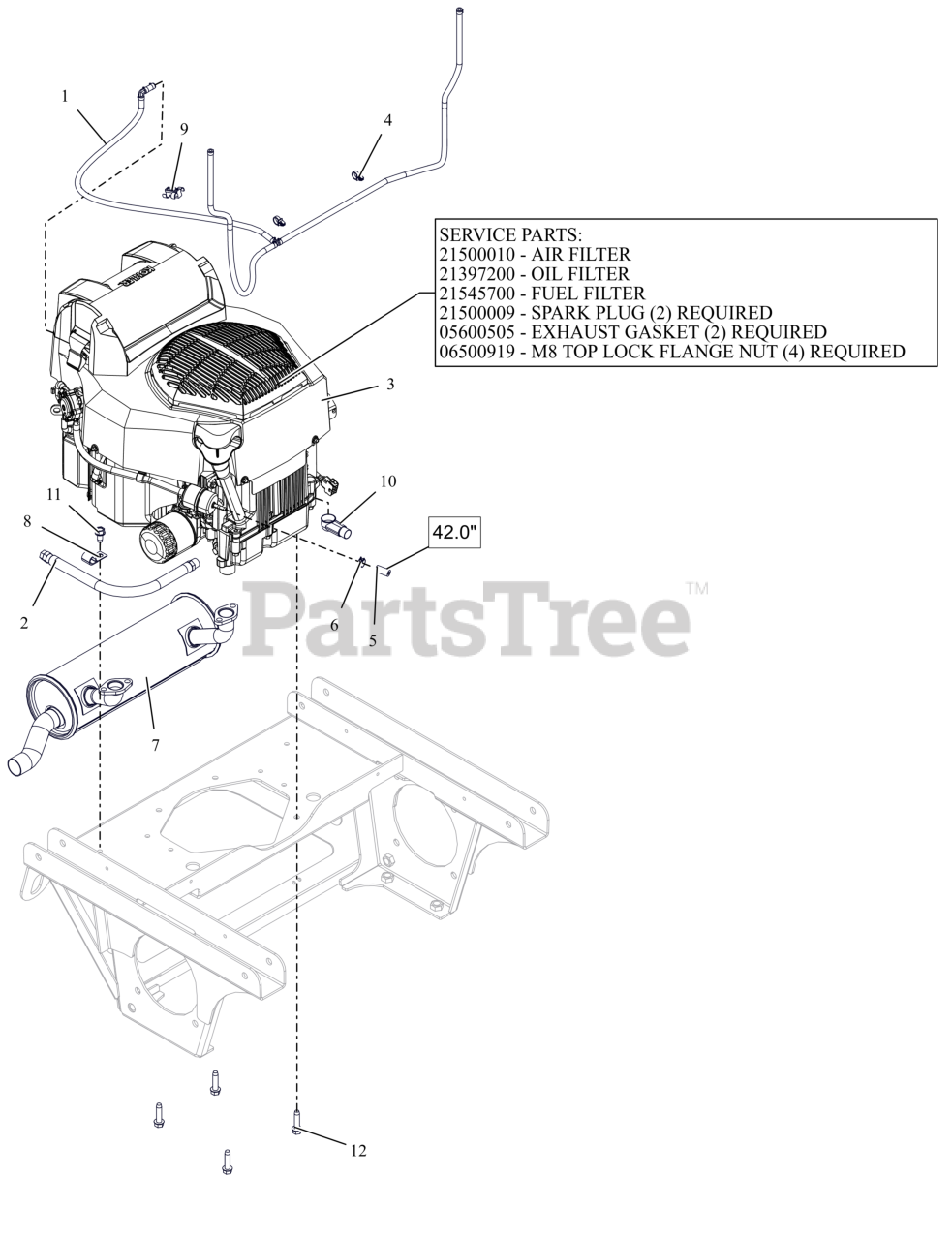

992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 092000 - 093999) Engine - Kohler ZT740 Confidant Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

Engine - Kohler ZT740 Confidant Parts Diagram

  • Title

1

Gravely 04981600

ASM, VAPOR LINE

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 05155100

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

3

Gravely 08201030

ENGINE, KOHLER ZT740 CONFIDANT

$

$

Not available

3

Gravely 21500010

AIR CLEANER, KOHLER CONFIDANT

Note: SERVICE PART COMPONENT

$28.99

$

In Stock, only 1 left!

0

3

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART COMPONENT

$18.99

$

In Stock, only 4 left!

0

3

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART COMPONENT

$12.99

$

In Stock, Qty 20+

0

3

Gravely 21500009

PLUG, SPARK KOHLER

Note: SERVICE PART COMPONENT

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: SERVICE PART COMPONENT

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: SERVICE PART COMPONENT

$2.49

$

In Stock, Qty 18

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04885100

MUFFLER, ZT730/ZT740

$148.99

$

Usually ships in 4-12 days

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

10

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07400203

SCR-TAP .38-16X1.50 HWH ZCC

$3.99

$

Usually ships in 4-12 days

0
