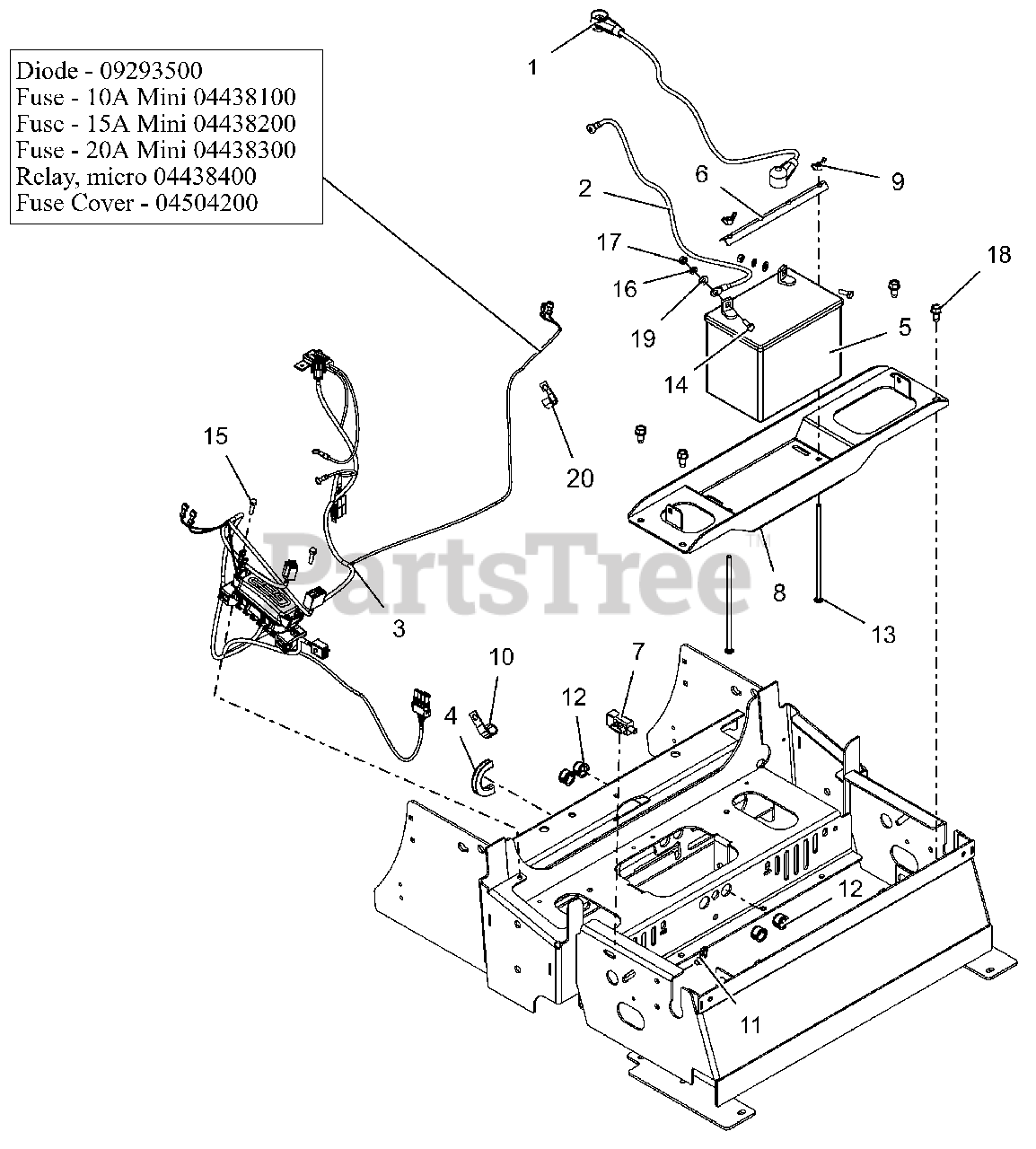

992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 070000 - 074999) Electrical Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

Electrical Parts Diagram

  • Title

1

Gravely 03286900

CABLE - POS BATT W/BOOTS 6X35

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 03288200

CABLE-NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 04884800

HARNESS, PT400 WIRING

$232.99

$

Usually ships in 4-12 days

0

3

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: SERVICE PART

$11.99

$

In Stock, only 3 left!

0

3

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: SERVICE PART

$

$

Not available

3

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: SERVICE PART

$19.99

$

In Stock, only 1 left!

0

3

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: SERVICE PART

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

6

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

7

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

8

Gravely 04420553

PT400 GAS BATTERY TRAY - RED

$90.99

$

Usually ships in 4-12 days

0

9

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

10

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05972000

@BLT-HEX M6-1.0X25 YWZC

$

$

Not available

16

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

18

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0
