992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 051000 - 059999) Casters And Tires - 60" And 72" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

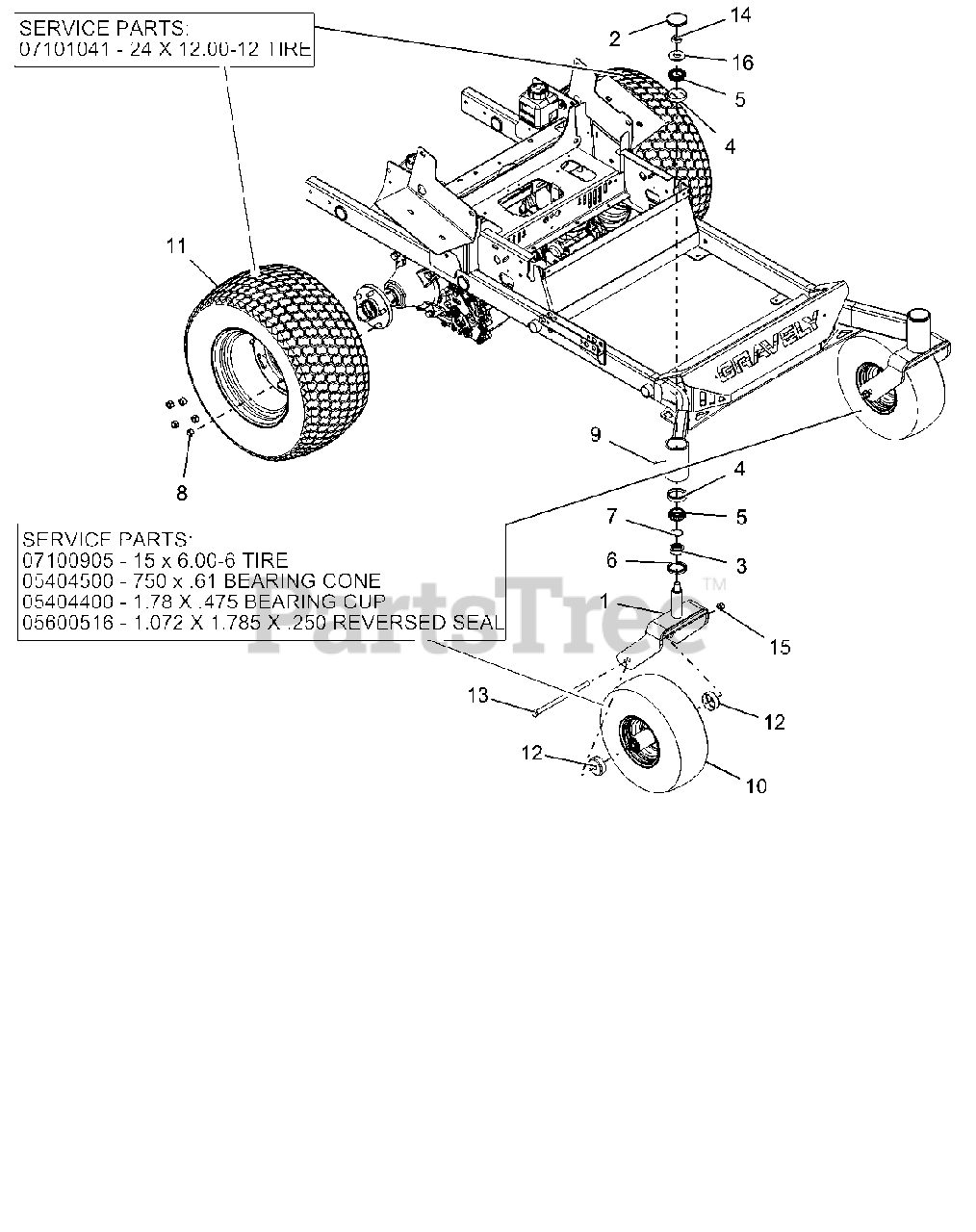

Casters And Tires - 60" And 72" Parts Diagram

  • Title
1

Gravely 03924453

CASTER FORK WMT - RED

$180.99

$

In Stock, only 2 left!

0

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

3

Gravely 04718600

SPACER, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 6

0

4

Gravely 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$20.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

7

$2.49

$

In Stock, Qty 8

0

8

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05404500

BRG-CONE .750X.61

Note: SERVICE PART

$23.99

$

In Stock, Qty 9

0

10

Gravely 05404400

BRG-CUP 1.781X.475

Note: SERVICE PART

$10.99

$

In Stock, Qty 20+

0

10

Gravely 07100905

TIRE, 15X6-6 SMOOTH

Note: SERVICE PART

$45.99

$

In Stock, only 1 left!

0

10

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: SERVICE PART

$21.99

$

In Stock, Qty 5

0

10

Gravely 07101109

ASM, WHL/TIRE 15X6.00-6 SMOOTH

$125.99

$

In Stock, only 2 left!

0

11

Gravely 07101041

TIRE, 24 X 12.00-12

Note: SERVICE PART

$227.99

$

Usually ships in 4-12 days

0

11

Gravely 07101119

ASM, WHL/TIRE 24X12.00-12 K500

$273.99

$

Usually ships in 4-12 days

0

12

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

13

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-JAM TOPLK .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0
