992255 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower (SN: 041000 & Above) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower

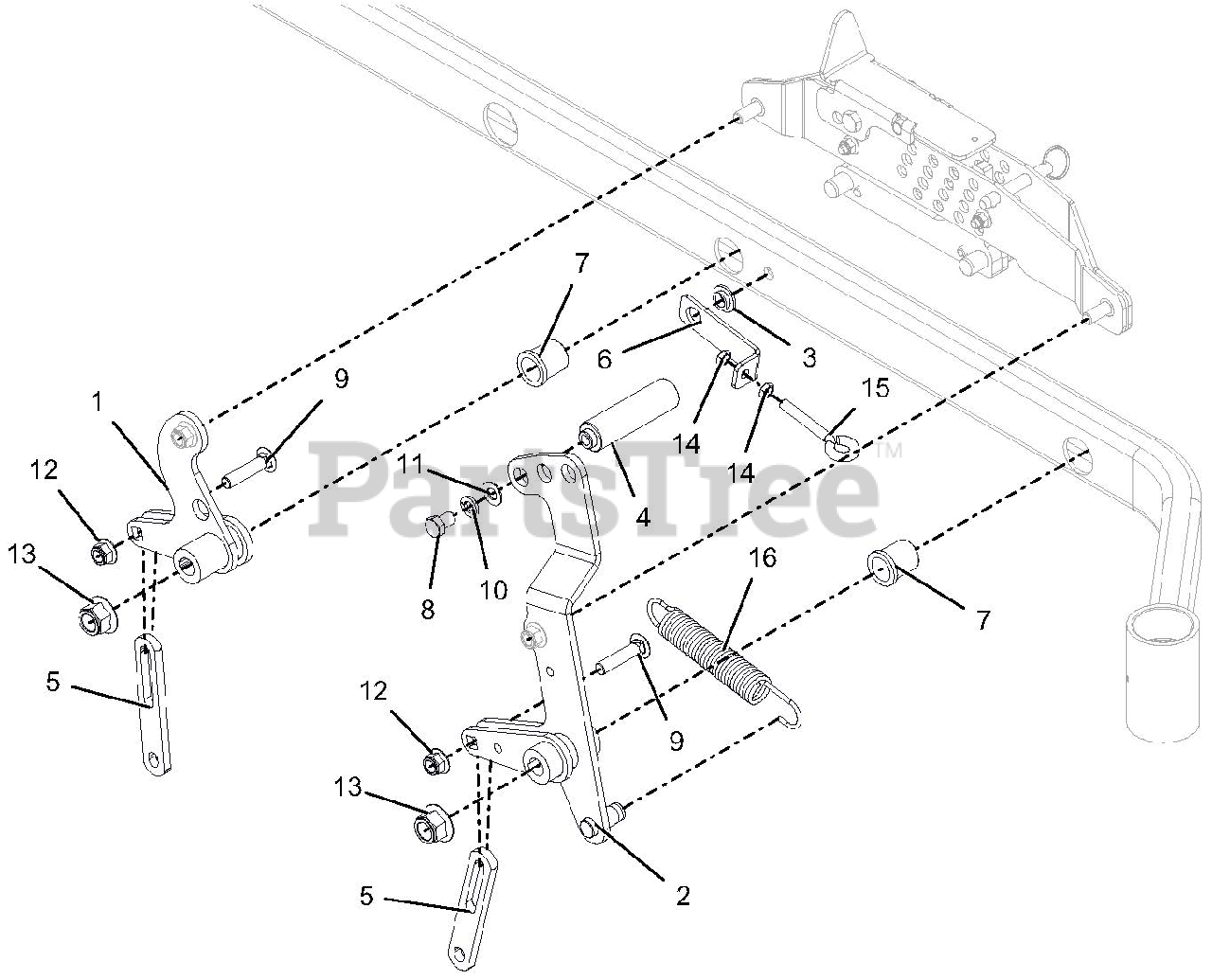

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04776567

WLDMT, REAR RH DECK LIFT ARM

Note: (BLACK)

$101.99

$

Usually ships in 4-12 days

0

2

Gravely 04776767

WLDMT, FRONT RH DECK LIFT ARM

Note: (BLACK)

$193.99

$

Usually ships in 4-12 days

0

3

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

4

Gravely 04373300

PEDAL, LIFT

$

$

Not available

5

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 04777353

BRKT, SPRING ANCHOR

Note: (RED)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5 Y
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

10

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

11

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0
