992253 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 040000 - 040999) Engine - Kawasaki FX730 Parts Diagram

Pro-Turn 52" Zero-Turn Mower

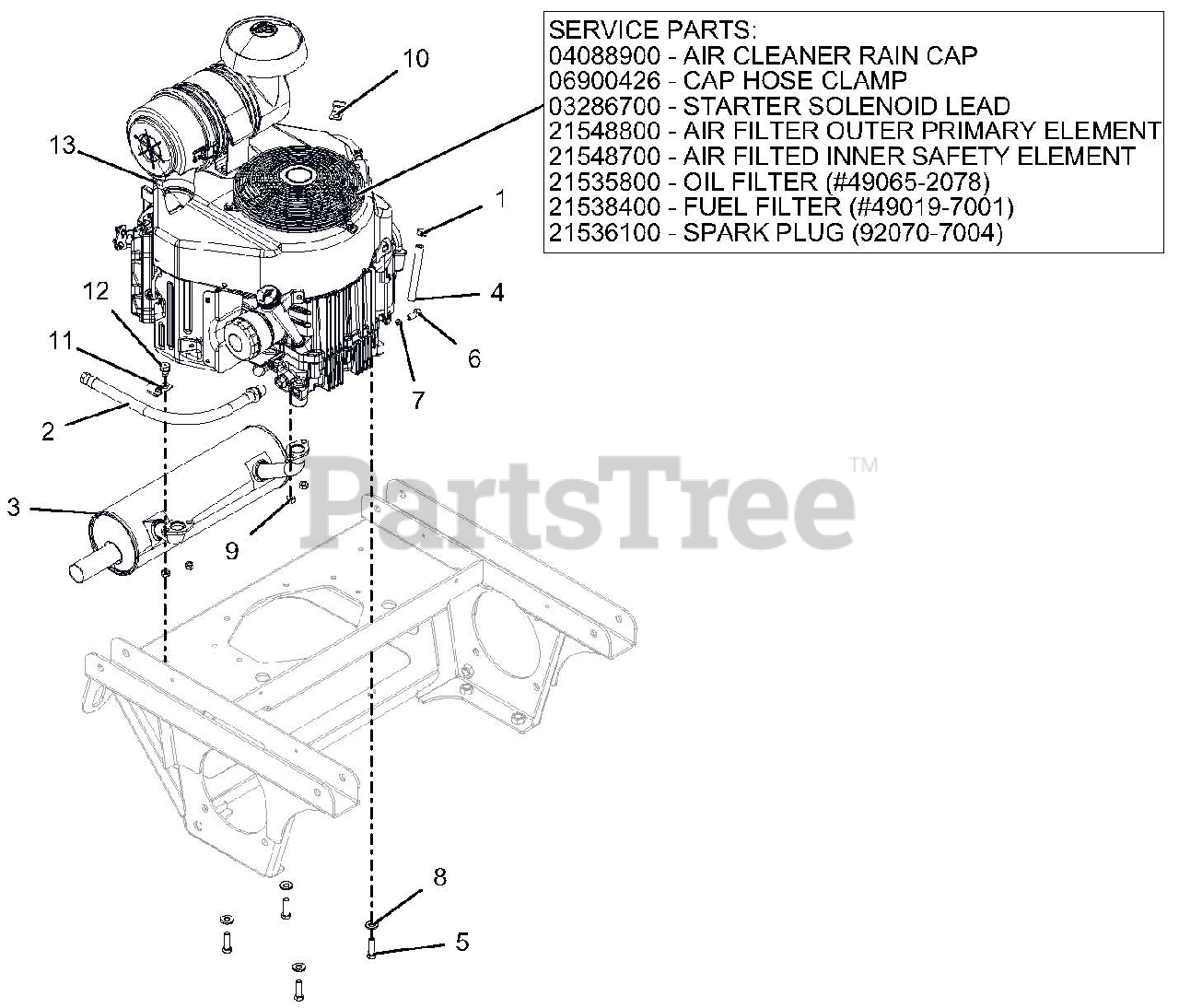

Engine - Kawasaki FX730 Parts Diagram

  • Title

1

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

2

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 03989000

MUFFLER, KAWASAKI FX24/26 HP

$168.99

$

In Stock, only 1 left!

0

4

Gravely 03278100

.25 LOW-PERM GAS HOSE 20.00" LG - VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

6

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

10

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 5

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08200722

ENGINE, KAWASAKI FX730

$

$

Not available

13

Gravely 04088900

AIR CLEANER RAIN CAP

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 06900426

CAP HOSE CLAMP

Note: SERVICE PART

$

$

Not available

13

Gravely 03286700

STARTER SOLENOID LEAD

Note: SERVICE PART

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 21548800

AIR FILTER OUTER PRIMARY ELEMENT

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

13

Gravely 21548700

AIR FILTER INNER SAFETY ELEMENT

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

13

Gravely 21535800

OIL FILTER
(Superseded to 49065-0724)

Note: (#49065-2078) SERVICE PART

$18.99

$

In Stock, Qty 20+

0

13

Gravely 21538400

FUEL FILTER
(Superseded to 21573800)

Note: (#49019-7001) SERVICE PART

$

$

Not available

13

Gravely 21536100

SPARK PLUG

Note: (#92070-7004) SERVICE PART

$3.99

$

In Stock, Qty 20+

0
